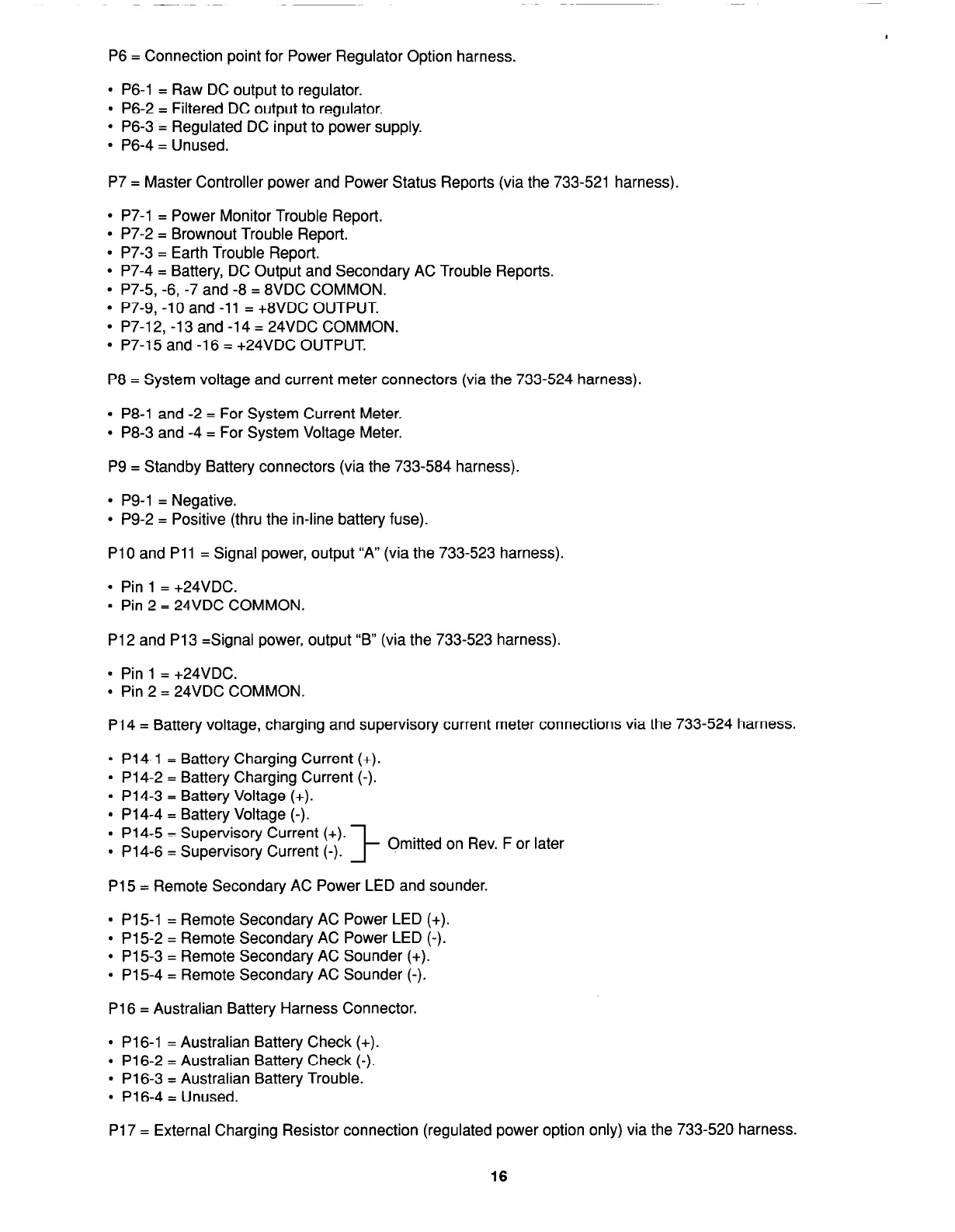

P6 = Connection point for Power Regulator Option harness.
l
P6-1 = Raw DC output to regulator.
l
P6-2 = Filtered DC output to regulator.
l
P6-3 = Regulated DC input to power supply.
l
P6-4 = Unused.
P7 = Master Controller power and Power Status Reports (via the 733-521 harness).
l
P7-1 = Power Monitor Trouble Report.
l
P7-2 = Brownout Trouble Report.
l
P7-3 = Earth Trouble Report.
l
P7-4 = Battery, DC Output and Secondary AC Trouble Reports.
l
P7-5, -6, -7 and -8 = 8VDC COMMON.
l
P7-9, -10 and -11 = +8VDC OUTPUT.
l
P7-12, -13 and -14 = 24VDC COMMON.
l
P7-15 and -16 = +24VDC OUTPUT.
P8 = System voltage and current meter connectors (via the 733-524 harness).
l
P8-1 and -2 = For System Current Meter.
l
P8-3 and -4 = For System Voltage Meter.
P9 = Standby Battery connectors (via the 733-584 harness).
l
P9-1 = Negative.
l
P9-2 = Positive (thru the in-line battery fuse).
PlO and Pll = Signal power, output A (via the 733-523 harness).
l
Pin 1 = +24VDC.
l
Pin 2 = 24VDC COMMON.
P12 and P13 =Signal power, output B (via the 733-523 harness).
l
Pin 1 = +24VDC.
l
Pin 2 = 24VDC COMMON.
P14 = Battery voltage, charging and supervisory current meter connections via the 733-524 harness.
l
P14-1 = Battery Charging Current (+).
l
P14-2 = Battery Charging Current (-).
l
P14-3 = Battery Voltage (+).
l
P14-4 = Battery Voltage (-).
l
P14-5 = Supervisory Current (+).
l
P14-6 = Supervisory Current (-).
I-
Omitted on Rev. F or later
P15 = Remote Secondary AC Power LED and sounder.
. P15-1 = Remote Secondary AC Power LED (+).
l
P15-2 = Remote Secondary AC Power LED (-).
l
P15-3 = Remote Secondary AC Sounder (+).
l
P15-4 = Remote Secondary AC Sounder (-).
P16 = Australian Battery Harness Connector.
l
P16-1 = Australian Battery Check (+).
l
P16-2 = Australian Battery Check (-).
l
P16-3 = Australian Battery Trouble.
l
P16-4 = Unused.
P17 = External Charging Resistor connection (regulated power option only) via the 733-520 harness.
16
