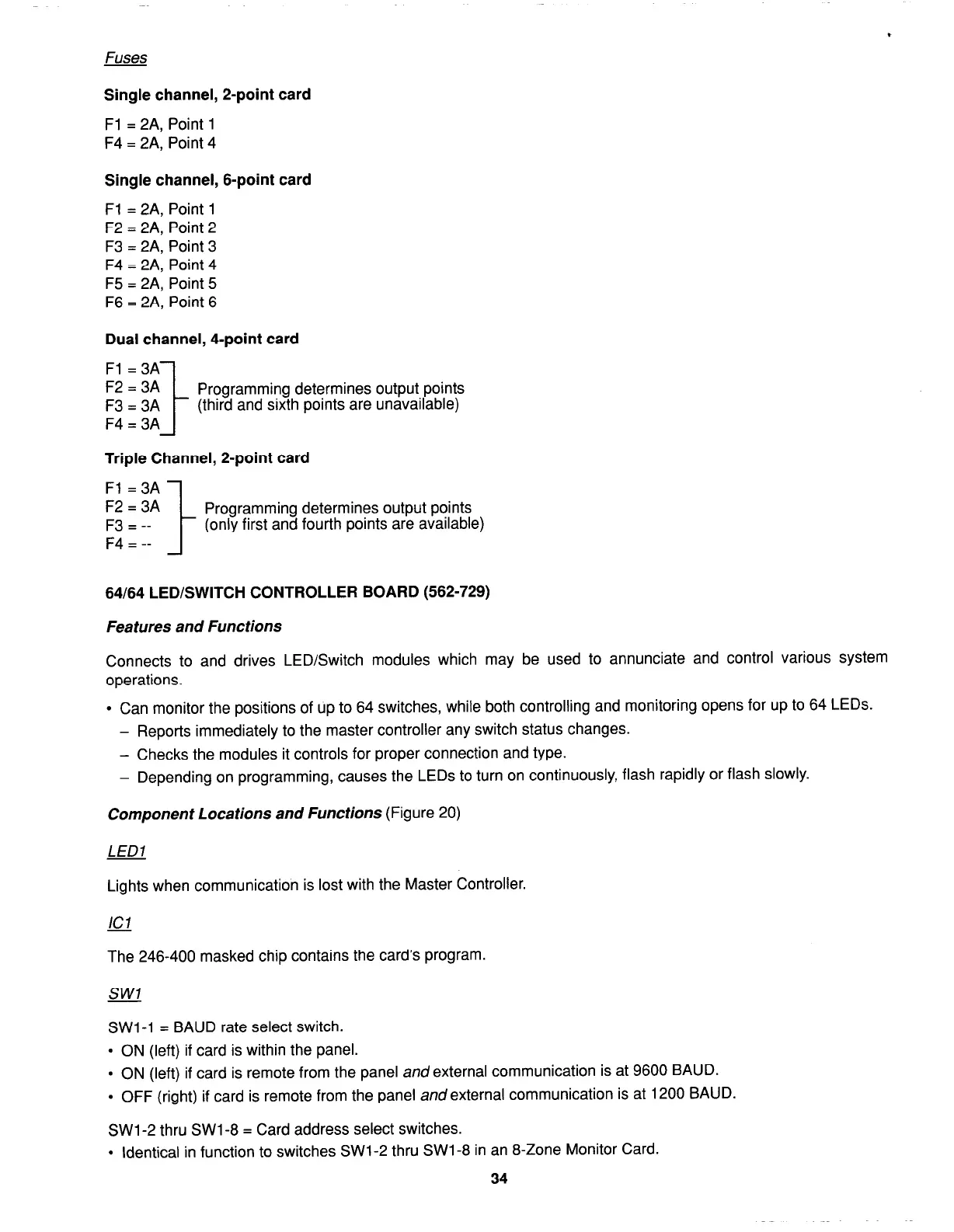

Fuses
Single channel, P-point card
Fl = 2A, Point 1
F4 = 2A, Point 4
Single channel, 6-point card
Fl = 2A, Point 1
F2 = 2A, Point 2
F3 = 2A, Point 3
F4 = 2A, Point 4
F5 = 2A, Point 5
F6 = 2A, Point 6
Dual channel, 4-point card
Fl = 3A
F2 = 3A
F3 = 3A
Programming determines output points
(third and sixth points are unavailable)
F4=3A 1
Triple Channel, 2-point card
Fl =3A
F2 = 3A
l-
Programming determines output points
F3 = --
(only first and fourth points are available)
F4 = --
64/64 LED/SWITCH CONTROLLER BOARD (562-729)
Features and Functions
Connects to and drives LED/Switch modules which may be used to annunciate and control various system
operations.
.
Can monitor the positions of up to 64 switches, while both controlling and monitoring opens for up to 64 LEDs.
-
Reports immediately to the master controller any switch status changes.
-
Checks the modules it controls for proper connection and type.
-
Depending on programming, causes the LEDs to turn on continuously, flash rapidly or flash slowly.
Component Locations and Functions (Figure 20)
LED1
Lights when communication is lost with the Master Controller.
The 246-400 masked chip contains the card’s program.
SW1 -1 = BAUD rate select switch.
l
ON (left) if card is within the panel.
.
ON (left) if card is remote from the panel and external communication is at 9600 BAUD.
.
OFF (right) if card is remote from the panel and external communication is at 1200 BAUD.
SW1 -2 thru SW1 -8 = Card address select switches.
.
Identical in function to switches SW1 -2 thru SW1 -8 in an 8-Zone Monitor Card.
34
