Simplex 4100 Service Instructions

,
NOTE: Switch position SW1 -1 is not used.
SW2 = Active MAPNET@ Device Loops Select Switch.
l Selecting rotary switch position 1, 2, 3, or 4 selects the corresponding number of active MAPNET@ loops.
NOTE: Switch positions 0, 5, 6, and 7 are invalid selections.
SW2 LED 1 thru LED 4
Jumpers
JW2, JW3, JW5 = IN.
JWl, JW4,
JW6,
JW7, JW8 = OUT.
Pl
\
\
I
JWl thru JW8

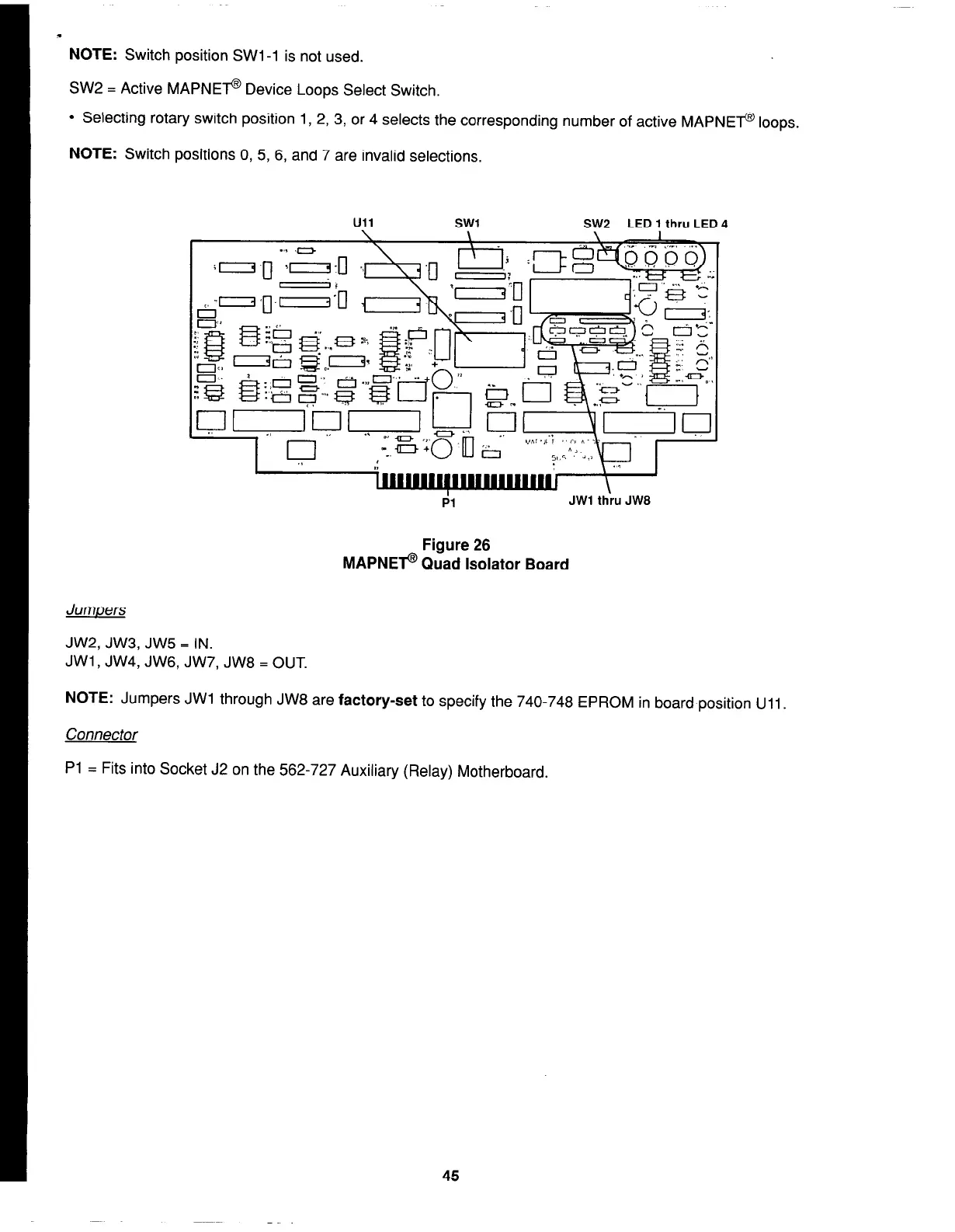

Figure 26
MAPNEF Quad Isolator Board
NOTE: Jumpers JWl through JW8 are factory-set to specify the 740-748 EPROM in board position Ull.
Connector
Pl = Fits into Socket J2 on the 562-727 Auxiliary (Relay) Motherboard.
45
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
