Simplex 4100 Service Instructions

P

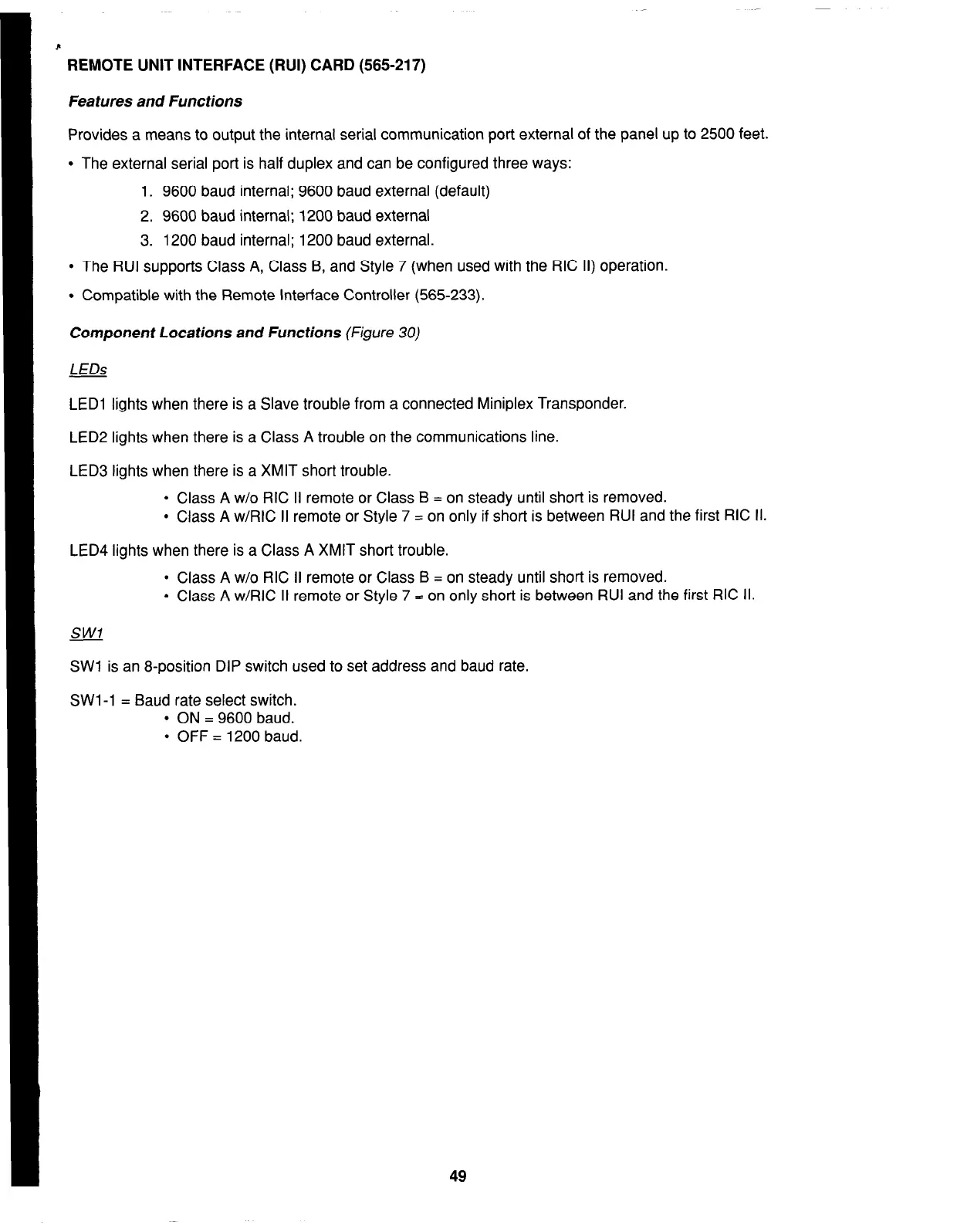

REMOTE UNIT INTERFACE (RUI) CARD (565217)
Features and Functions
Provides a means to output the internal serial communication port external of the panel up to 2500 feet.
l The external serial port is half duplex and can be configured three ways:
1. 9600 baud internal; 9600 baud external (default)
2. 9600 baud internal; 1200 baud external
3. 1200 baud internal; 1200 baud external.
l The RUI supports Class A, Class B, and Style 7 (when used with the RIC II) operation.
l Compatible with the Remote Interface Controller (565-233).
Component Locations and Functions (Figure 30)
LEDs
LED1 lights when there is a Slave trouble from a connected Miniplex Transponder.
LED2 lights when there is a Class A trouble on the communications line.
LED3 lights when there is a XMIT short trouble.
l Class A w/o RIC II remote or Class B = on steady until short is removed.
l Class A w/RIG II remote or Style 7 = on only if short is between RUI and the first RIC II.
LED4 lights when there is a Class A XMIT short trouble.
l Class A w/o RIC II remote or Class B = on steady until short is removed.
l Class A w/RIG II remote or Style 7 = on only short is between RUI and the first RIC II.
SW1 is an 8-position DIP switch used to set address and baud rate.
SW1 -1 = Baud rate select switch.
l ON = 9600 baud.
l OFF = 1200 baud.
49
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
