Simrad AP16 - Course Knob Icon; INFO Menu Flowchart

Simrad AP16 Autopilot
34 20222121A
Course knob icon
Initially when the INFO menu is accessed an icon will replace
the mode index to tell that no course changes or other course
related settings can be made unless you press a mode key. The
icon will time out after 3-5 seconds and be replaced by the
mode index.

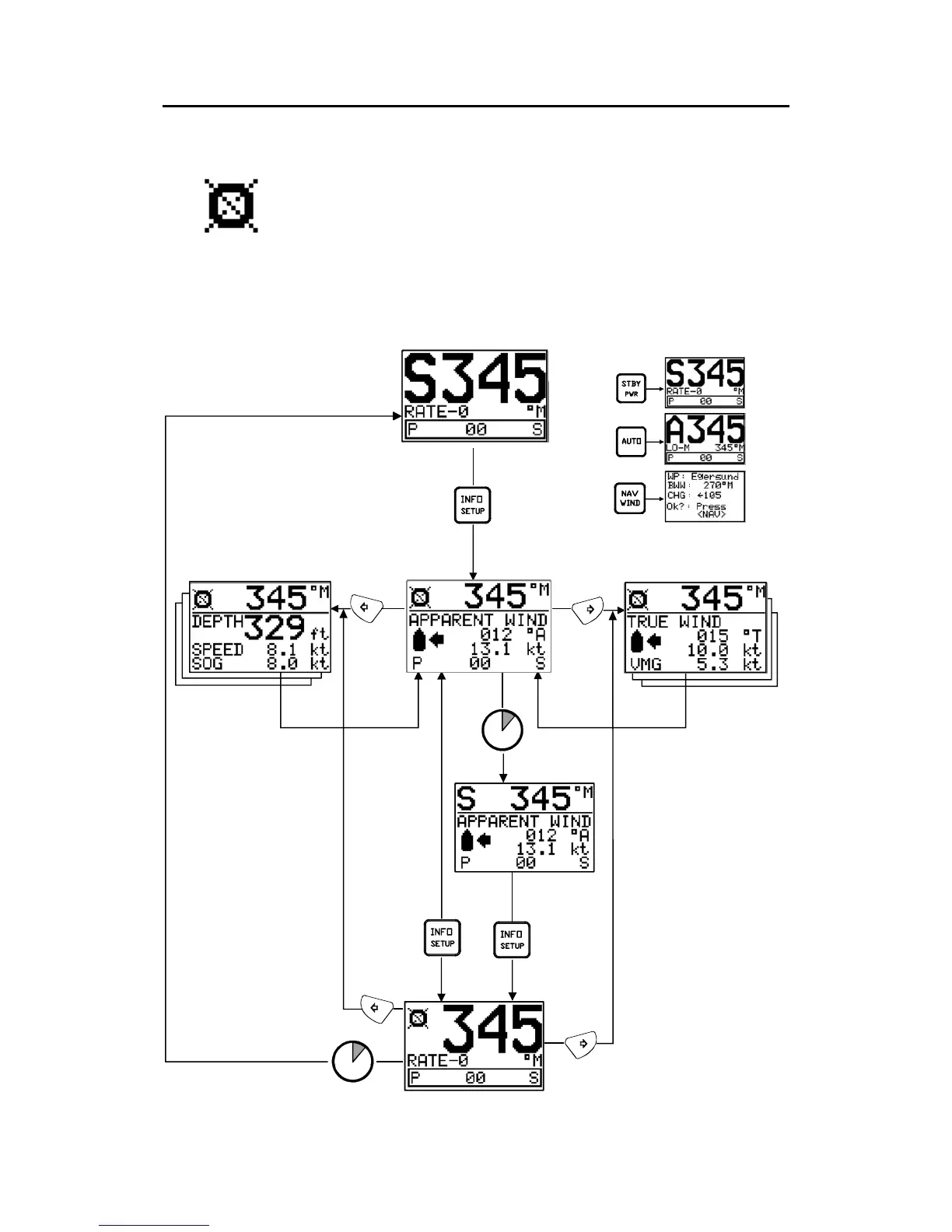

INFO menu flowchart
12
6
39
1
2
4
57
8
10
11
12
6
39
1
2
4
57
8
10
11
3-5 sec.
time-out
3-5 sec.
time-out
Toggle
1
1
1
1
