Simrad AP16 Autopilot
48 20222121A
S35
STEERING LEVER
TB1
AUTOPILOT COMPUTER
TB2 NFU
GND PORT STBD LAMP
Green
Pnk/Gry
Brn/Wh
Yellow
1
4

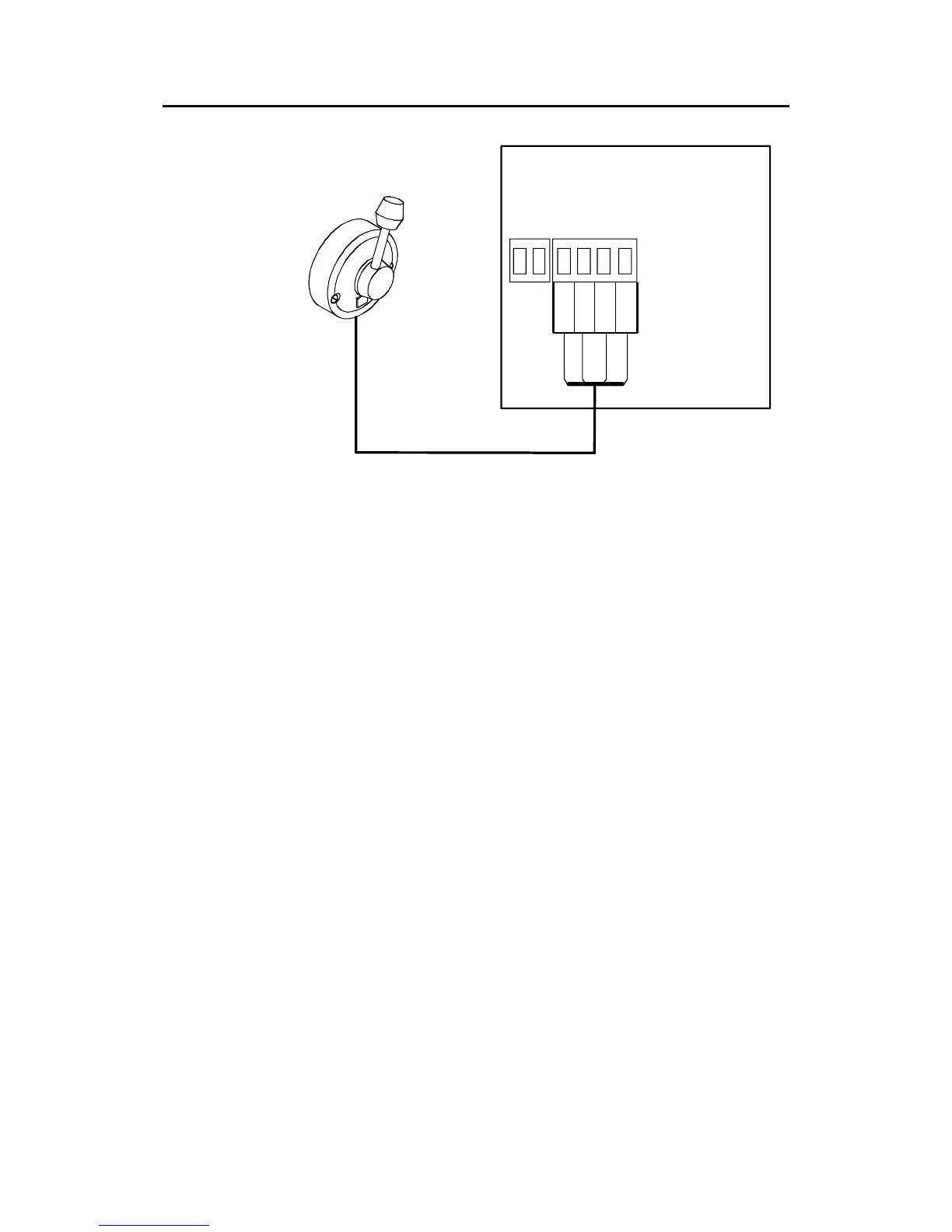

Figure 3-11 S35 connection
The unit is opened by removing the three screws on the back
cover. Inside are two sets of micro-switches, a printed circuit
board with a plug-in terminal and a jumper strap.
3.13 Interfacing
With the AP16 autopilot system there are several possibilities to
connect to other equipment for data collection and exchange:
1. Use SimNet
2. Use SimNet via AT10 Universal SimNet/NMEA Converter
3. Connect to a NMEA2000 network via adapter (drop) cable,
part no. 24005729.
4. The AC05 has high speed compass heading output to Simrad
and Furuno radars.
The different connecting diagrams on the following pages
illustrate the interface possibilities of the autopilots.
3.14 SimNet
The SimNet cable system with very small plugs in both ends
makes it easy to run the cables, only 10 mm (3/8”) holes are
required through panels and bulkheads. The SimNet accessory
program contains the necessary items to make a successful
installation.
