Simrad AP16 Autopilot
8 20222121A
Please take time to read this manual to get a thorough
understanding of the operation and system components and their
relationship to a complete AP16 autopilot system.
Other documentation material that is provided with your system
includes a warranty card. This must be filled out by the
authorized dealer that performed the installation and mailed in to
activate the warranty.
1.3 System components
A basic AP16 system consists of the following units (refer to
Figure 1-1):
− AP16 Control Unit with accessories
− AC05 Autopilot Com
puter
− RC36 Rate compass
The basic system can be expanded with fixed and hand held
multiple full function control units, hand held remote and
steering lever.

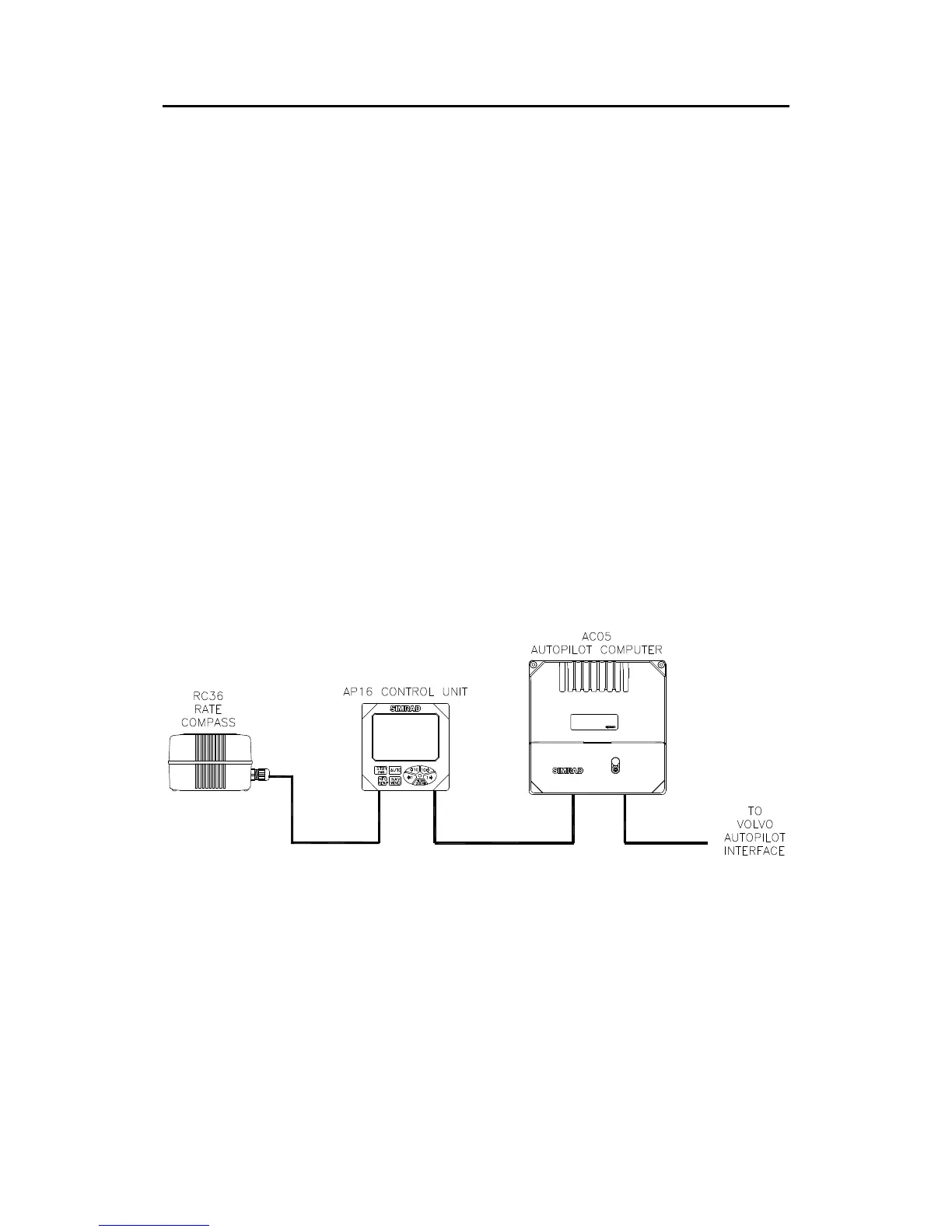

Figure 1-1 AP16 Basic system
Note ! The Volvo Autopilot Interface is the gateway between the
autopilot and the IPS system. The gateway kit must be ordered
from Volvo under P/N 3819744.
1.4 AP16 Control Unit
A compact autopilot control for panel, bulkhead or bracket
mounting. It has a multifunction LCD display for readout of
