Installation
20222121A 47
3.10 R3000X Remote Control installation
R3000X should be mounted in the supplied bracket that can be
fixed by four mounting screws. The unit is weather proof and
can be mounted outdoor.
TB1
AUTOPILOT COMPUTER
TB2 NFU
R3000X
REMOTE CONTROL
GND
PORT
STBD
LAMP
Blue
Red
Green
Yellow
1
4

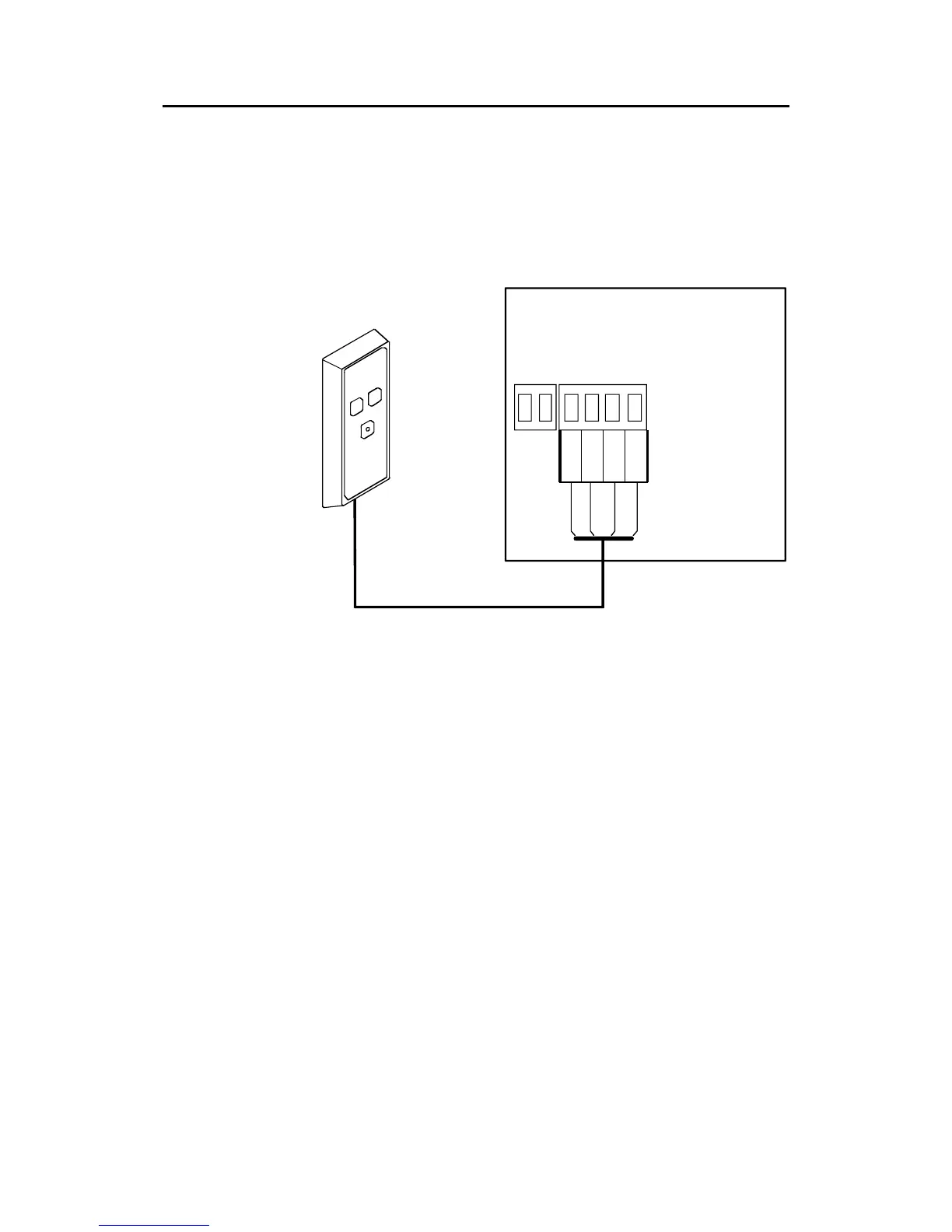

Figure 3-10 R3000X connection
3.11 JS10 Joystick
Refer to separate installation instructions supplied with the JS10
Joystick.
3.12 S35 NFU Lever installation
The unit is mounted to a bulkhead or panel by two screws from
the front. The cable is connected to the junction unit according to
Figure 3-11. Interchange the Port and Stbd wires to the screw
terminals if necessary to make the direction of the lever
m
ovement coincide with the direction of the rudder movement.
