Simrad AP16 Autopilot
40 20222121A
Grounding and RFI
The autopilot system has excellent RFI protection. The autopilot
computer should have a proper ground connection to the
hull/bonding system.
Robnet2 cables and other signal cables (Volvo IPS) should not
be run in parallel with other cables carrying RF or high current,
such as VHF and SSB transmitters, battery chargers/ generators,
winches and thrusters.

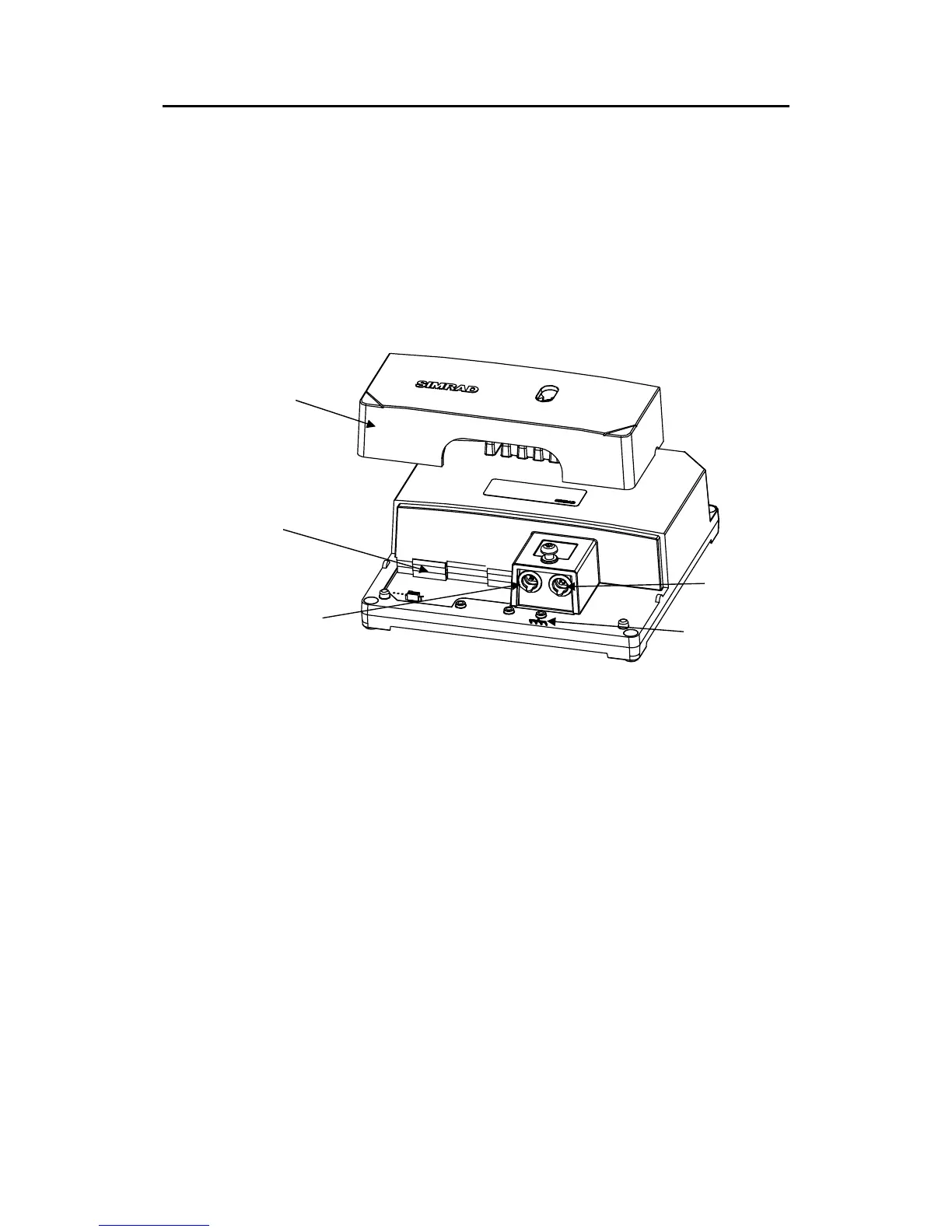

Figure 3-2 AC05 Autopilot Computer
Remove the bottom cover to get access to the plug-in terminals.
Provide sufficient wire length so that the plug-in terminals can
be easily connected/disconnected.
Pull out each terminal before connecting the wires. Remove all
strands before putting on the terminal cover.
Caution ! Do not mix the (blue) Robnet cable with the (black) Volvo IPS
cable.
Cable strain relief
Once all the cables have been run to the appropriate peripherals
and connected to the autopilot computer unit they should be
secured to ensure that they are not snagged or exposed to excess
strain.
Ground terminal
Volvo autopilot
interface
