Simrad AP16 User Manual

Simrad AP16 Autopilot
88 20222121A

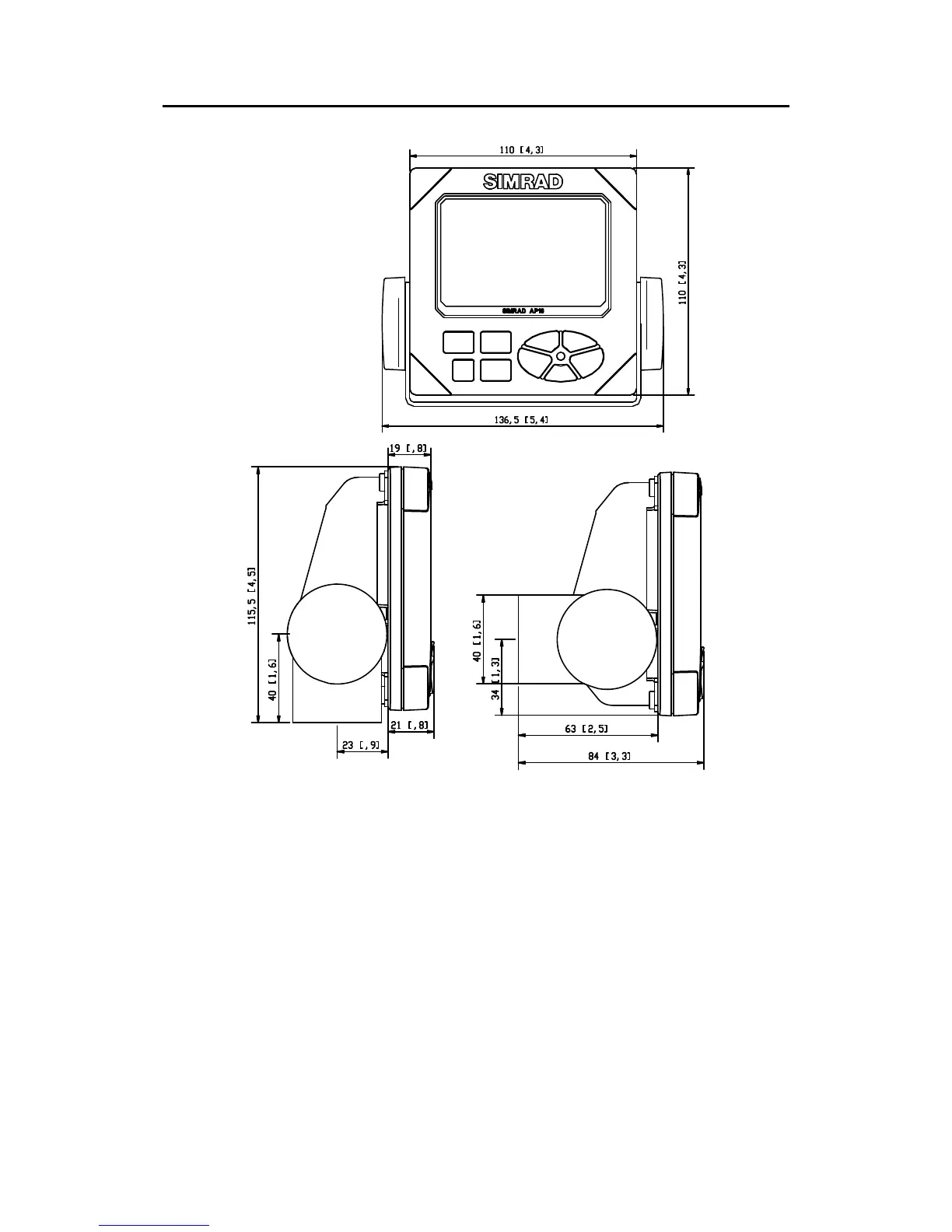

Figure 8-1 AP16 Control Unit – dimensions
(Mounting bracket is optional equipment)
8.3 AC05 Autopilot Computer
Dimensions:............................... See Figure 8-2
Weight: ...................................... 1,1 kg (2,4 lbs)
Supply voltage:.......................... 10.8 - 31.2V DC
Reverse voltage protection ........ Yes
Environmental Protection:......... IP22
Safe distance to compass:.......... 1.0 m (3 ft.)
Power consumption:.................. 5 Watt (electronics)

Simrad AP16 Specifications

General

Brand	Simrad
Model	AP16
Category	Autopilot System
Language	English
