Installation
20222121A 39
3.5 AP16 System Layout

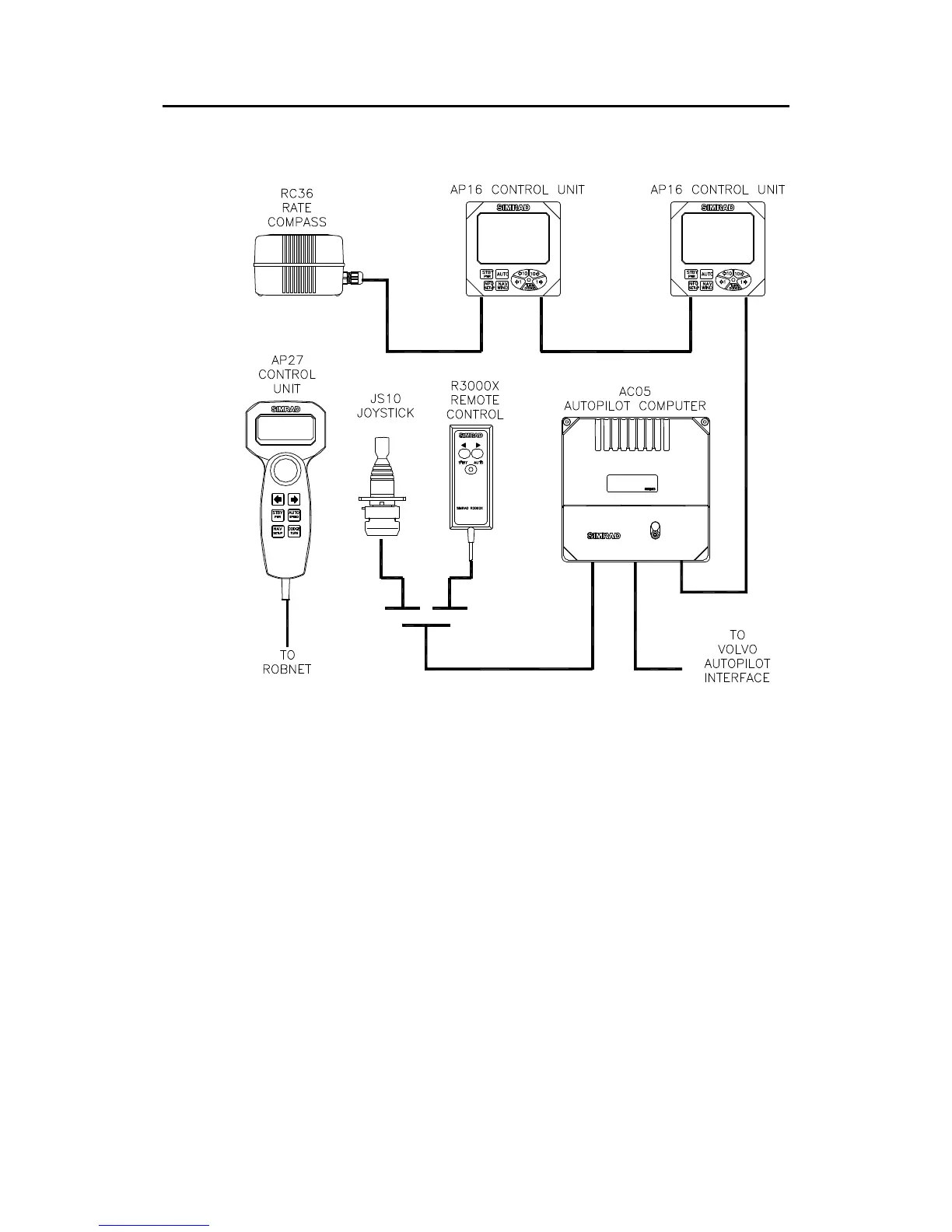

Figure 3-1 AP16 system layout with options
3.6 Autopilot computer installation
The autopilot computer is designed to operate in a location with
ambient temperatures below +55°C (+130°F).
It must be mounted close to the Volvo Autopilot Interface within
the length of the interconnection cable, 1 m (3’). See Figure 3-7.
Note ! The autopilot computer unit is not weatherproof and should be
mounted vertically in a dry environment.
Cable connections
Use only shielded cables, also for the Mains input. Signal cables
should be 0.5 mm
2
(AWG20) twisted pairs.
The mains supply cable should have sufficient wire gauge;
minimum 1,5 mm
2
(AWG14).
