Configuration and setup
20222121A 73

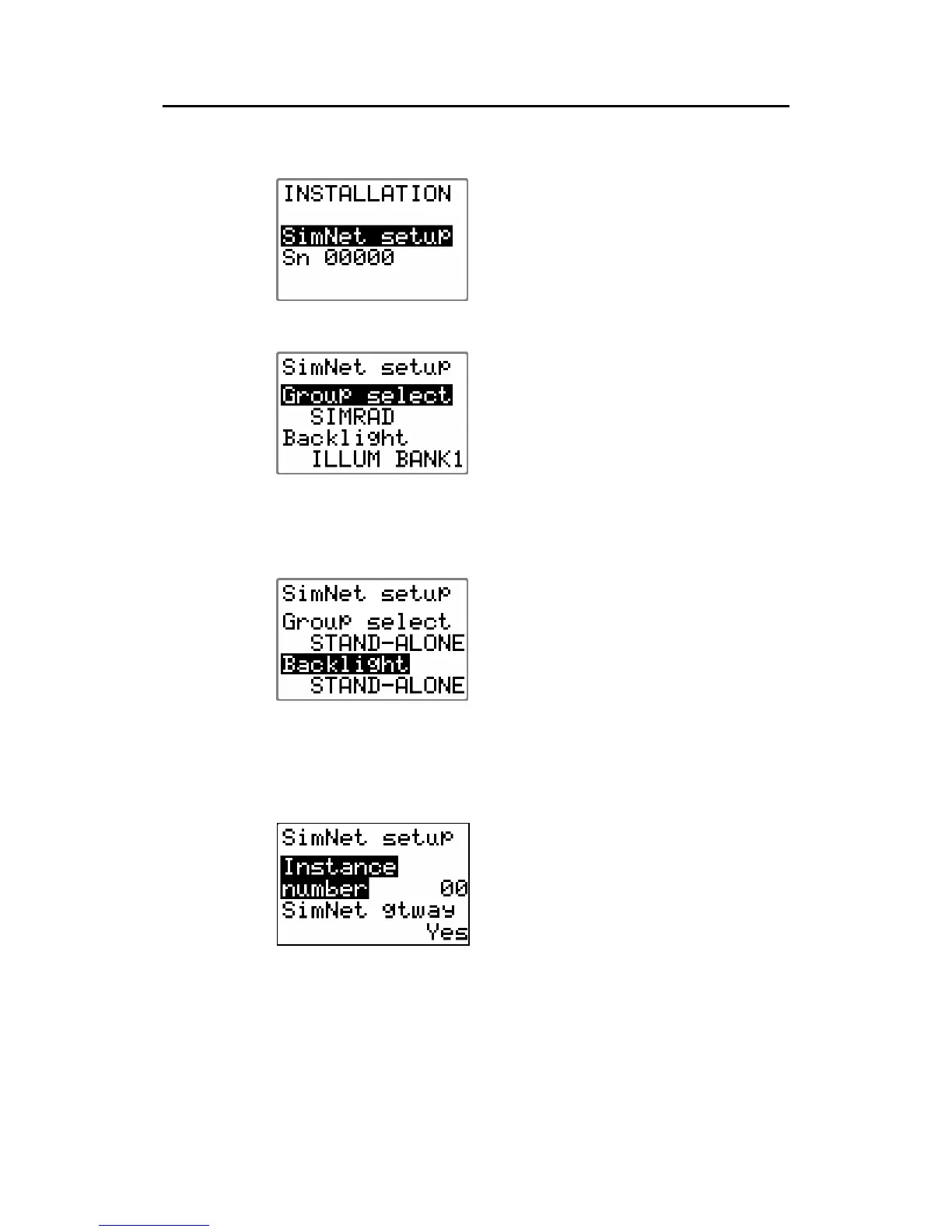

SimNet setup
Select the SimNet setup menu by
pressing the STBD 1 button and
confirm this by pressing the
STBD 10 button.
Sn 00000 is the unique SimNet ID
number for the specific autopilot
control unit.
Group selection
SIMRAD: Autopilot is part of the
Simrad Group. Source selection will
be common for the products in the
group (synchronized).
STAND ALONE: Source selection
for the autopilot will not be
transferred to other products in the
Simrad Group (no synchronization).
Backlight Illumination
Set backlight to synchronize with
one of the illumination banks (1-3)
available on the SimNet, or to
STAND ALONE for individual
control of the autopilot illumination.
Instance number
An item to identify units by a
number when the autopilot is
connected to a NMEA2000
Network. On SimNet units the
Instance number is added to the
product name e.g. AP16-1, AP16-2
for easy identification on various
display screens.
SimNet gateway
Indicates which control unit that
transmits and receives information
on SimNet. The display verifies by
reading ‘Yes’, all other units read
‘No’.
