Simrad AP16 Autopilot
44 20222121A
Cable pairs Color
code
Signal
Pink V SYSTEM+
1. pair
Grey V SYSTEM–
Brown Bus–
2. pair
White Bus+
Yellow On - Off

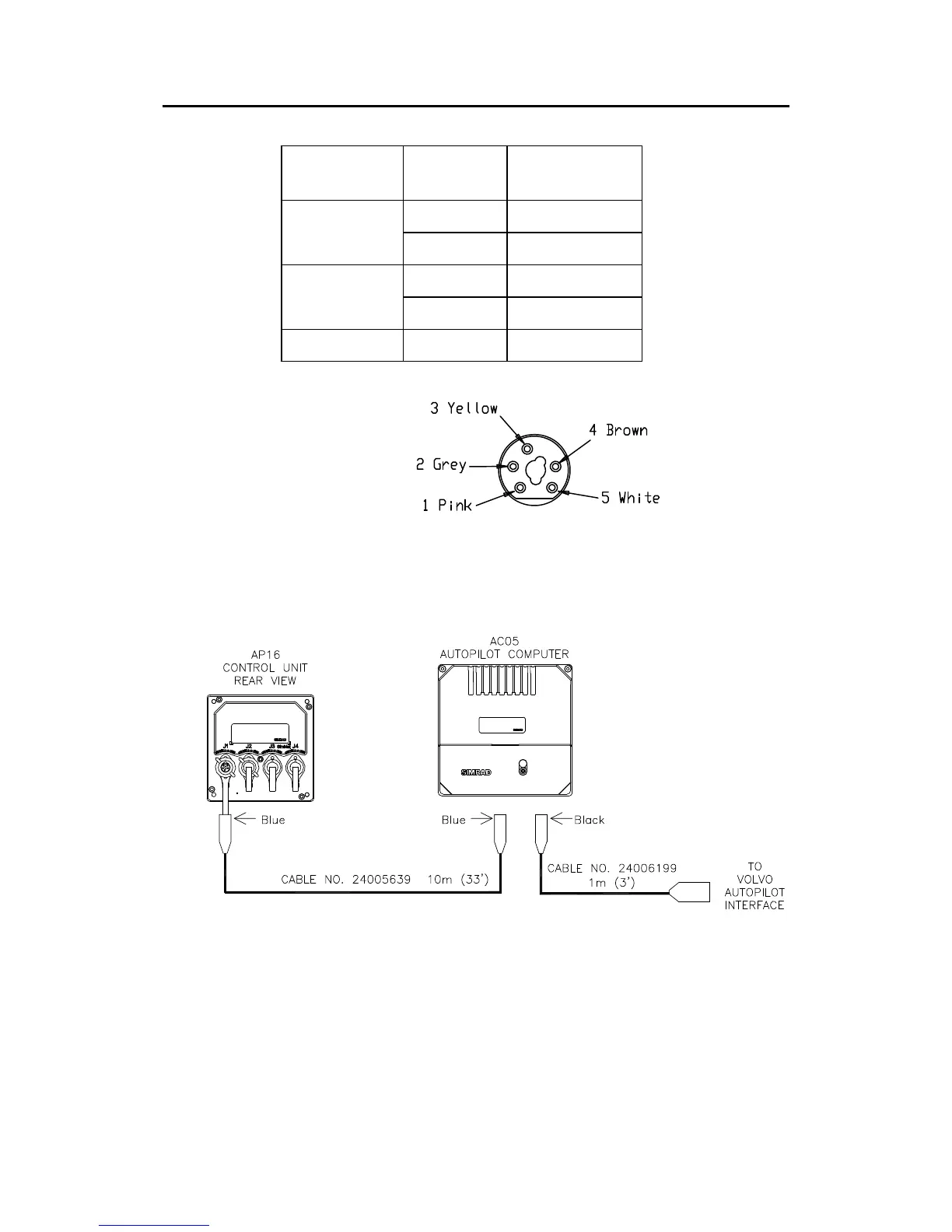

Figure 3-6 Robnet2 Connector
Note ! The connectors are weather proof according to IP65, when
properly installed. All unused Robnet2 connectors must be fitted
with the plastic cap to protect them against dirt and moisture.
Figure 3-7 Control unit connection
J1 and J2 (left) are Robnet2 connectors. J3 and J4 are SimNet
connectors.
Note ! The Volvo Autopilot Interface is the gateway between the
autopilot and the IPS system. The gateway kit must be ordered
from Volvo under P/N 3819744.
