Simrad AP16 Autopilot
44 20221560E

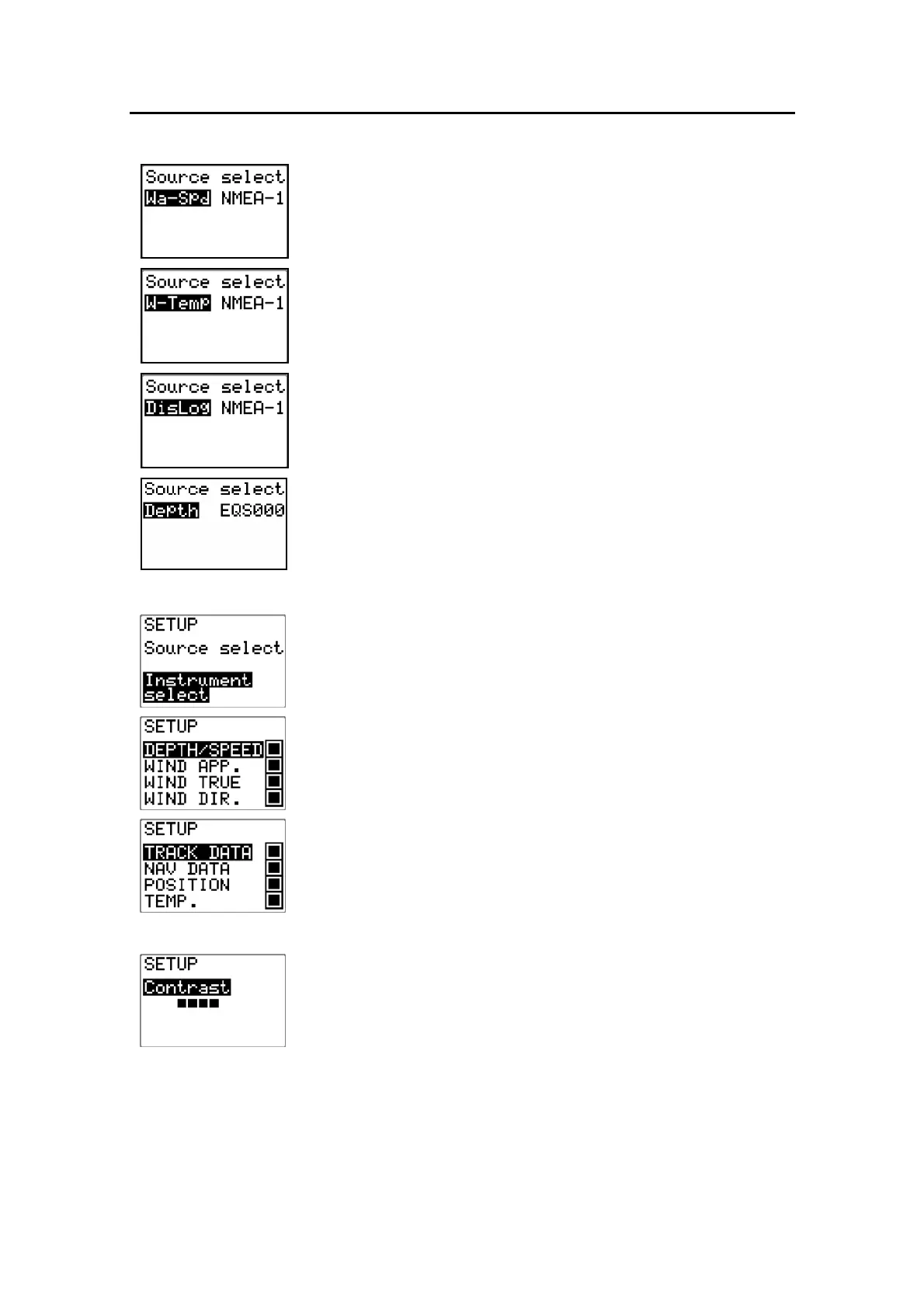

Water Speed
Select the source for water speed (normally the same as the
source providing Log data).
Water temperature
Select the source for water temperature (normally the same
as the source providing depth data).
DisLog
Select the Log source.
Depth
Select the source for depth data.
Instrument Select
Select the instrument page(s) to be available under the
INFO/SETUP button. Step through the list of instrument
pages by using the PORT 1 or STBD 1 button. Select the
wanted pages by filling the squares with the PORT 10 or
STBD 10 button.
Available instrument pages are: Depth/Speed, Wind App.,
Wind True, Wind Dir., Track data, Nav data, Position and
Temperature.
Contrast
The contrast of the display may be adjusted to 10 levels (10
= highest contrast). The setting is stored when the system is
turned off.
Adjustment is local to the control unit you adjust. At high
temperatures, not all levels are available due to automatic
temperature compensation.
Press the STBY button to leave the User setup.
