Simrad AP26 and AP27 Autopilots
66 20222147A
4. SimNet will power an IS12 instrument system. Hence
SimNet on other equipment can be connected and powered
via IS12.
5. SimNet must be properly terminated.
The SimNet network has to be terminated according to the
number and type of products connected.
In a small system consisting of maximum 5 SimNet products and
a total length of 5 m SimNet cable you need the SimNet power
cable with built in termination (red disc on cable plug).
For additional information about SimNet ask for the separate
SimNet Manual.
SIMRAD IS12
COMBI
LIGHT
ALARM
TIMER
UPPER
INFO
LOWER
INFO
PAGELIGHT
SIM RAD I S12
UPPER
INFO
LOWER
INFO
DATA
1
1
TURN
INFO
NAV
WI N D
SETUP
DODGE
AUTO
STBY
PWR
10
10
ALARM
TIMER
LIGHT
UPPER
INFO INFO
LOWER
SIMRAD IS12
COMBI

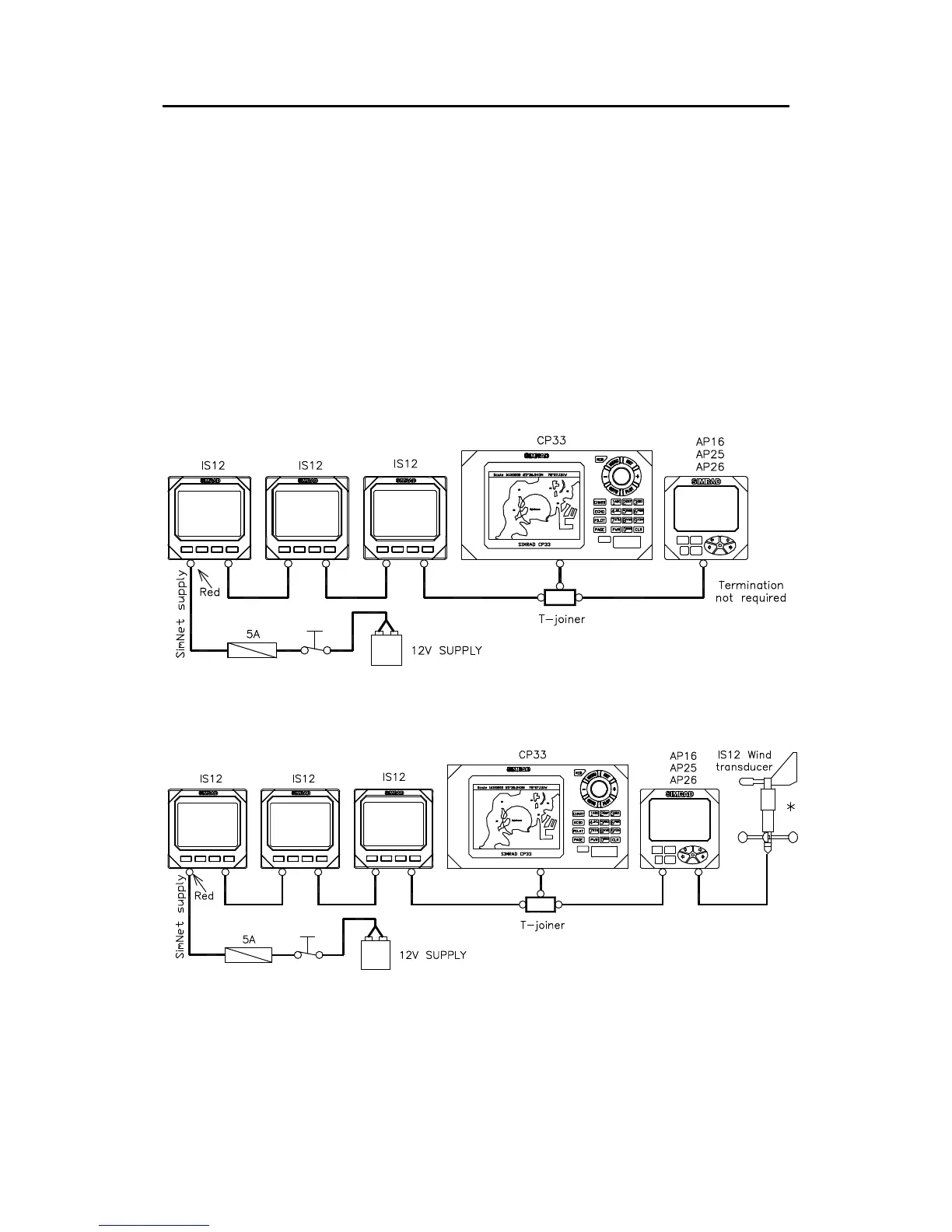

Figure 3-12 SimNet network, small system
TIMER
ALARM
LIGHT
TIMER
ALARM
INFO
UPPER
SIMRAD IS12
LOWER
INFO
LIGHT
COMBI
PAGE
UPPER
INFO
SIMRAD IS12
INFO
LOWER
LIGHT
COMBI
LOWER
INFO
UPPER
SIM RAD I S12
INFO
DATA
PWR
AUTO
SETUP
INFO
WI ND
NAV
STBY
10
DODGE
TURN
1
1
10
Figure 3-13 SimNet network, small system with Wind
transducer
The wind transducer (*) has a built in terminator.
