Simrad AP26 User Manual

Installation
20222147A 67
PAGELIGHT
INFO
UPPER
SIMRAD IS12
INFO
LOWER
DATA
NAV
WIND
DODGE
INFO
COMBI
LIGHT
ALARM
TIMER
UPPER
INFO
SIMRA D IS12
INFO
LOWER
STBY
AUTO
PWR
COMBI
LIGHT
TIMER
ALARM
INFO
UPPER
SIMRAD IS12
LOWER
INFO
LIGHT
UPPERALARM
TIMER INFO
SIMRA D IS12
INFO
LOWER
COMBI

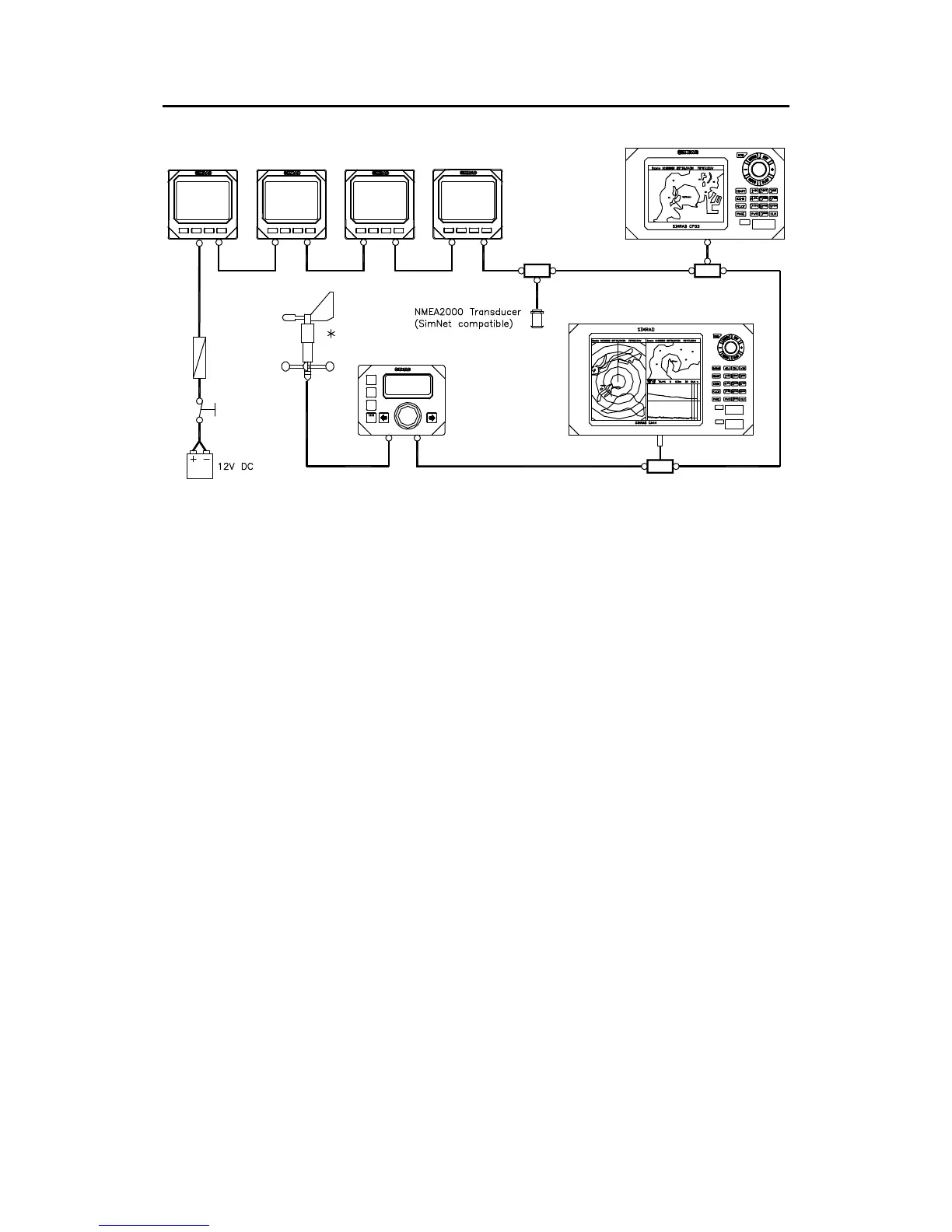

Figure 3-14 SimNet network, medium system
Notes !
1. Maximum total length of SimNet cable is 40 m (130 ft.)
excluding the 30 m (99 ft.) of masthead cable.
2. The wind transducer (*) has a built in terminator
3. If there is no wind transducer connected, a SimNet
terminator must be connected instead.

Simrad AP26 Specifications

General

Brand	Simrad
Model	AP26
Category	Autopilot System
Language	English
