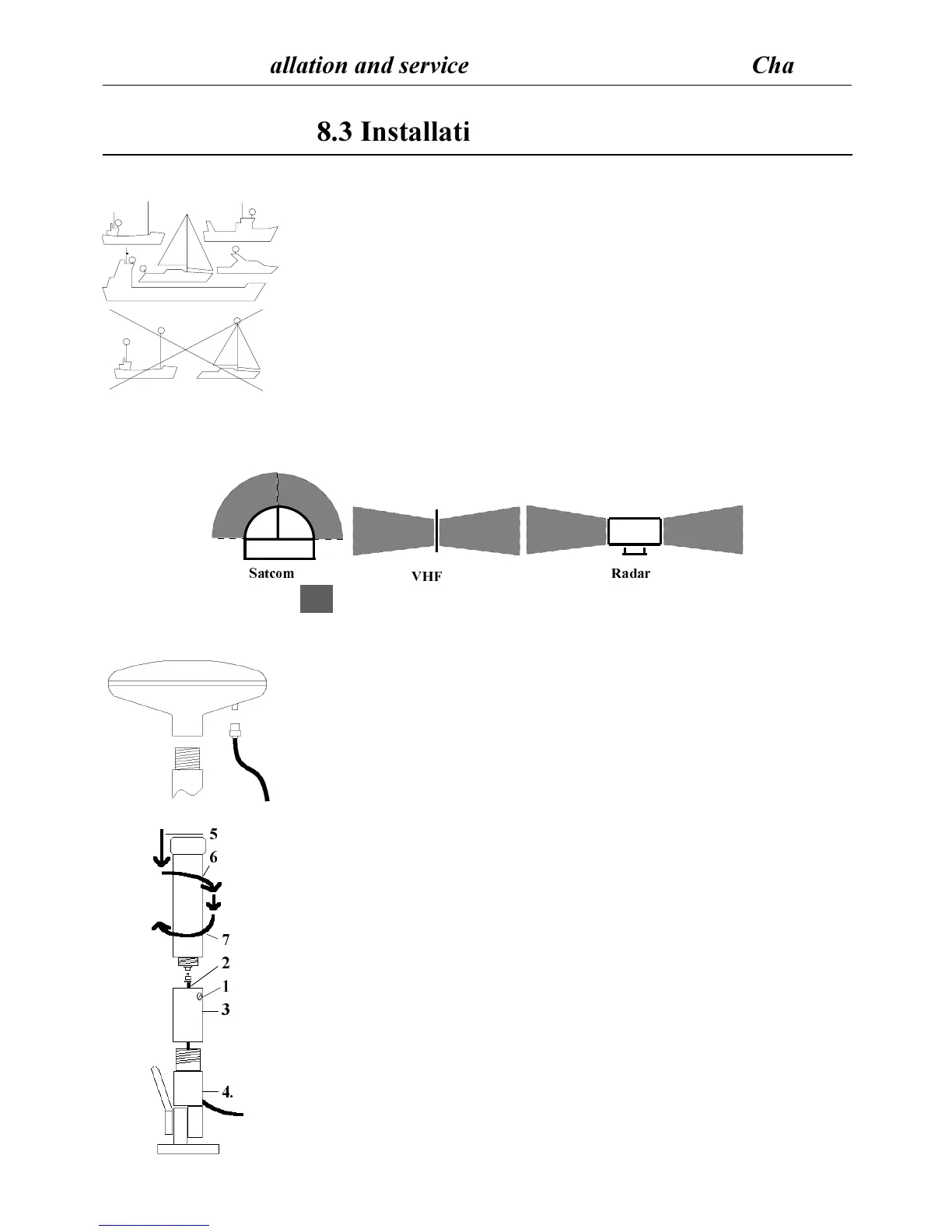

The antenna must be placed in a position where tall
constructions, steel wires, masts, etc. do not obstruct
the view to the satellites. Do not, however, mount the
antenna in the top of a mast or tower, as this may de-
grade the COG and SOG readings, especially if DGPS
is used. Do not place the antenna close to sources of
electrical interference, such as radar, satcom, etc.
If installing the GPS antenna close to other antennas it
must be placed either above or below the radiation
beams. There is full coverage down to 20° below the
horizon.
"EAMAREA Avoid installing the GPS antenna
inside the beam area.
-OUNTINGOF$'03ANTENNA-',
Mount the antenna on a standard US 1" 14 thread
pipe, or optional standard antenna mount. Tighten
firmly, but only by hand - no use of tools.
Attach the antenna cable to the TNC socket.
-OUNTINGOF'03ANTENNA23
Loosen the screw (1) of the antenna adaptor. Guide
the antenna cable (2) through the adaptor and con-
nect it to the antenna. Screw the US 1" 14 mount
adaptor (3) firmly onto the optional antenna mount (4).
Press (5) the antenna into the adaptor and turn it (6)
approx. 1/2 to 1 turn counter clockwise to "catch" the
thread. Turn (7) clockwise 1 to 2 turns and firmly
secure the antenna with the lock screw (1).
F$ONOTCLOSETHESMALLVENTILATIONHOLEATTHE
BOTTOMANDDONOTATTEMPTTOOPENTHEANTENNA
6(&
3ATCOM 2ADAR
)NSTALLATIONOFANTENNA
#%-+)))NSTALLATIONANDSERVICE #HAPTER
93
