Ground
Ground
Power cable (NMEA)
Power cable (Not usable)
Extension cable 12.5 m
- extendable to max.25 m
CE33 Installation and service Chapter 10-5

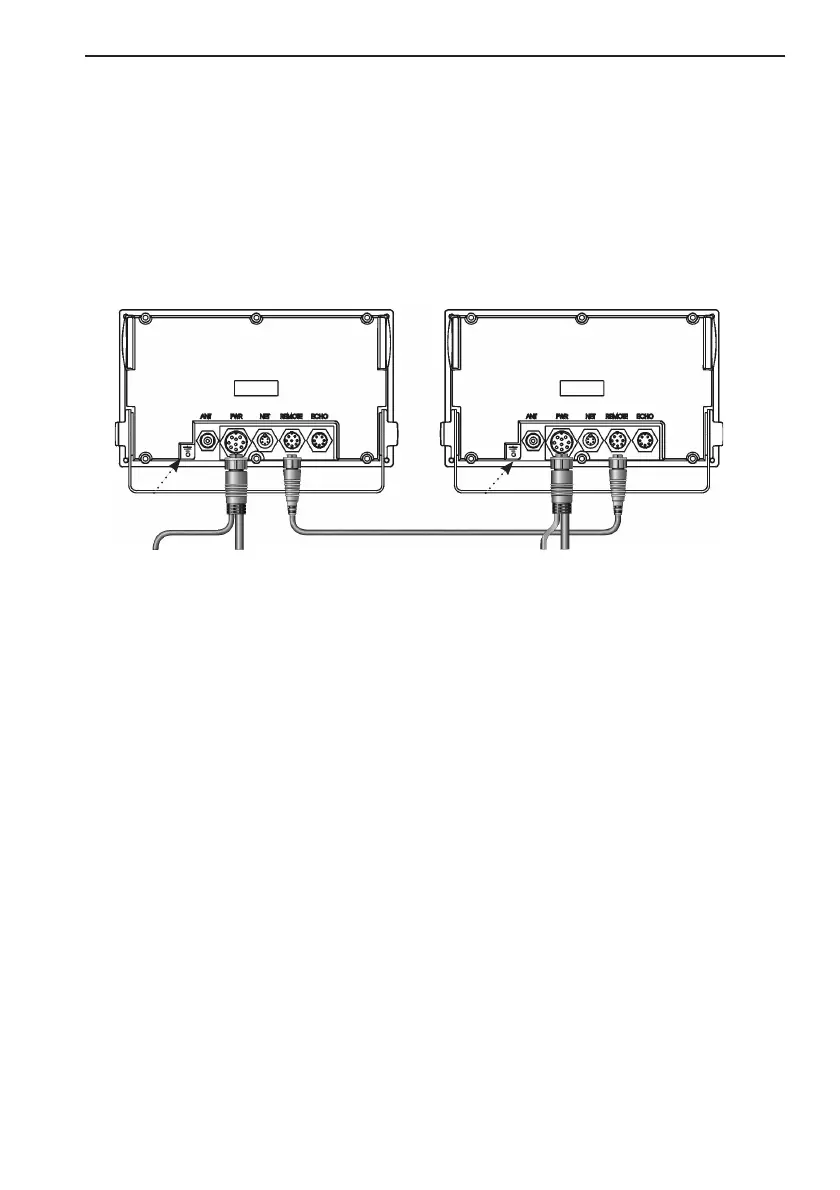

10.4 Installation of DS33 Dual Station
The DS33 is a remote control unit for the CE33 ChartSounder. Both units are
identical in size, so the same installation guides can be applied when perform-
ing the installation.
Refer to section 10.6 for details on pin numbers
CE33 DS33
10.4.1 Operation of DS33 Dual Station
The main unit and the dual station operate in parallel.
All key commands are relayed to the main unit - CE33 - and the display pic-
ture is instantly transferred back via a high speed data bus (HSDb).
Adjust light/contrast in screen and background light in keypad via the [PWR]
key. The eject key and cartridge drawer are blinded and can not be opened on
the dual station.
