Simrad CE33 ChartSounder User Manual

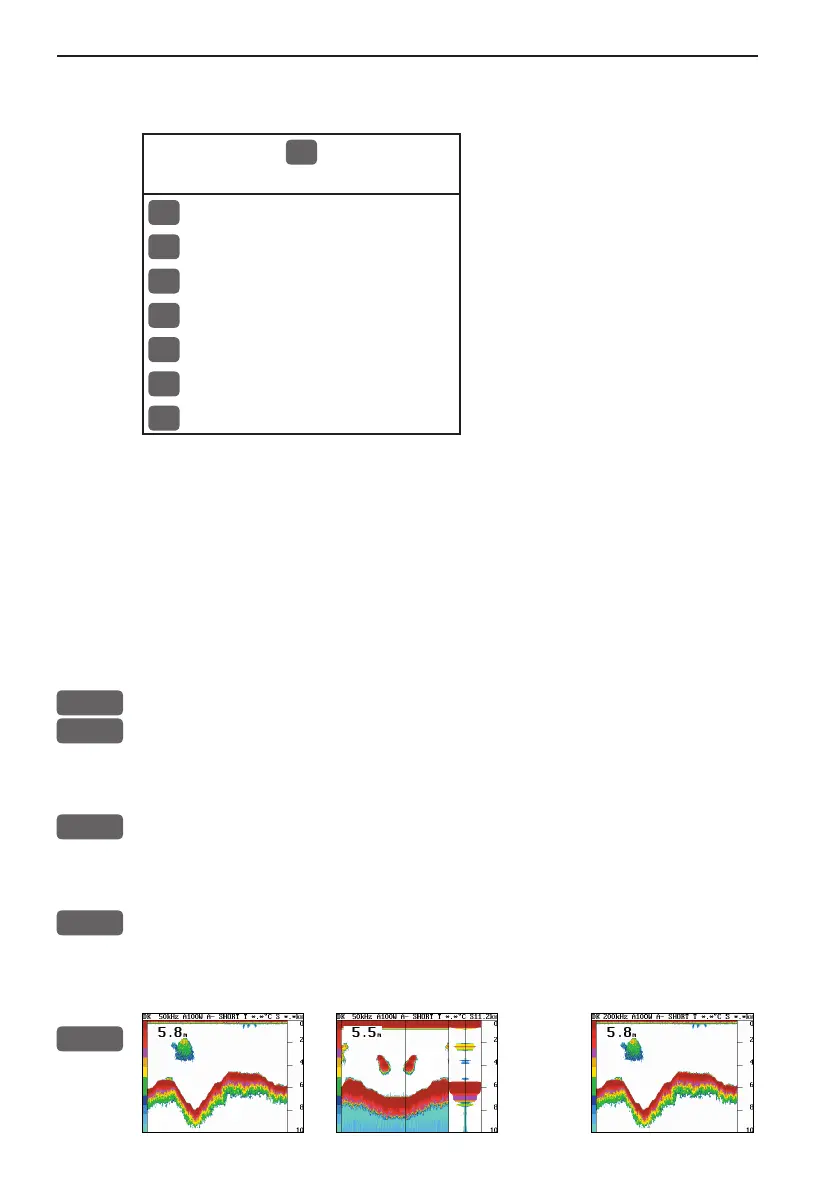

Chapter 7-2 CE33 Echosounder operation
7.1 Echosounder menu
5
ECHO
1
Echo 50kHz - see section 7.2
2
Echo 200kHz - see section 7.2
3
Turn bottom expansion ON - see section 7.3
4
Turn VRM expansion ON - see section 7.4
5
Turn A-scope ON - see section 7.5
6
Depth & temperature diagram - see section 7.7
7
Echosounder setup - see section 7.8
7.2 Echosounder display
Low and high frequency echosounder display can be set up sepa-
rately. The low frequency display will show deep water bottom
contours, and the high frequency display will show the mid-water
section with trawl targets or bait fish in a higher resolution.
As an example:
MENU
Call up the menu bar, and...
5,2
load the Echo display for 200kHz
- see display example on next page.
ECHO
Hotkey to Echo display i.e. jumps to page with Echo 50kHz or Echo
200kHz display; if none: inserts the last active Echo display in active
page.
ECHO
From active Echo display: hold [ECHO] key depressed for two sec-
onds to toggle between Echo 50kHz and Echo 200kHz displays.
ECHO
 
2 secs.
