CE33 Echosounder operation Chapter 7-3

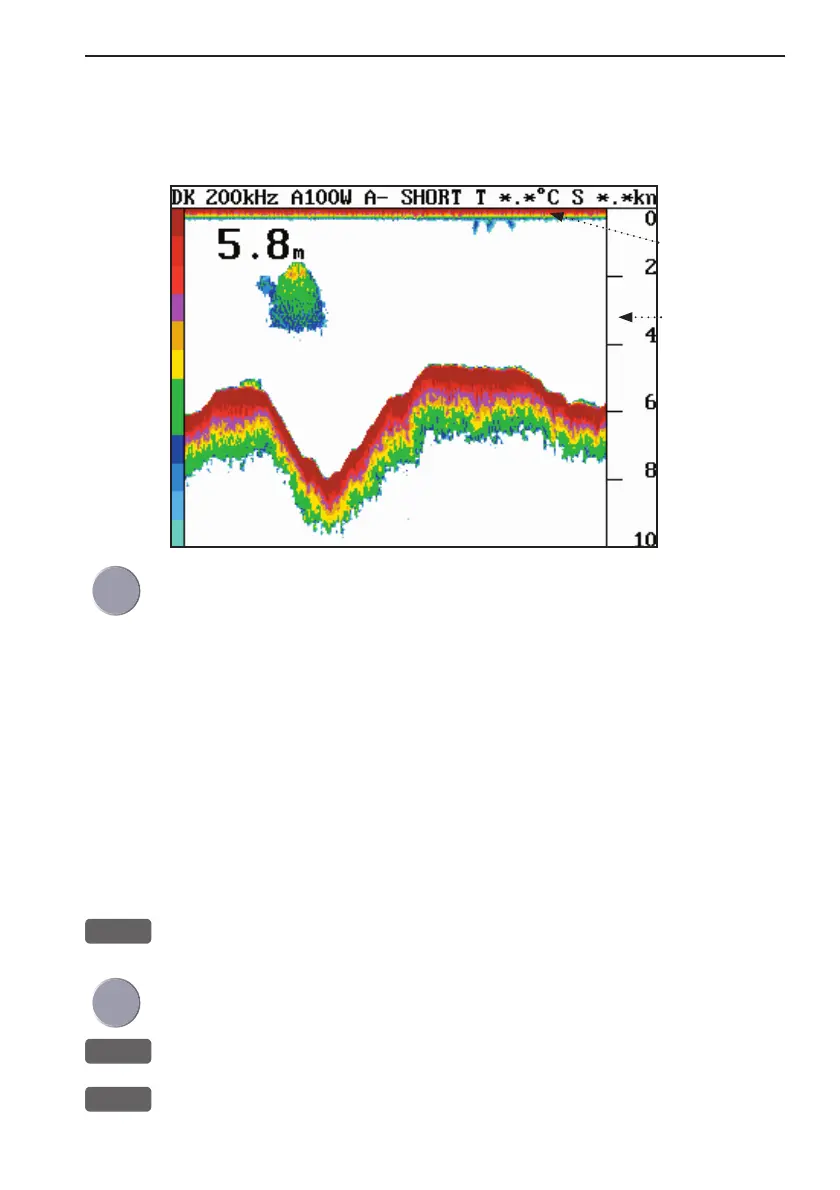

This is the basic presentation mode (standard display) for observing
fish schools and sea bed. Some surface noise may appear just below
the transmission line.
Transmission
line
Depth range
is adjustable
with +/- keys
or the Quick-
range keys
1-9.
Press key 0
to return to
Auto range.
Press cursor left/right to adjust gain
The data field is preset to show: Actual depth *DK, transmit power
A100W (set to AUTO), transmission pulse length A- SHORT (set
to AUTO), water temperature T in Celcius or Fahrenheit (in 1/10
degrees), water or SOG speed S in knots or kilometers/hour or
miles/hour - units can be changed in Setup for units (MENU,7,1).
*) Actual depth i.e. Depth below Keel/Surface/Transducer - settings
can be changed in Echosounder menu (MENU,5,7).
Refer to Appendix A for further description of the various functions.
ENT
Direct access to Setup display related to active echo display 50kHz
or 200kHz - (see section 7.9)
Use the cursor to go to the function you wish to change the value for
+/-
Toggle between available values
ENT
Confirm changes
To Next Page
