Simrad CE33 ChartSounder User Manual

Main unit
Dual Station
← 12.5m →
Extension cable
153-6070-004
Orange/white dot
Orange/yellow dot
Purple
Blue/white dot
Pink/black dot
Purple/black dot
Blue/yellow dot
Not
usable
Function
switch
5V/50mA Relay
Supply
Alarm
PC9 pole Female
Sub-D connector
Orange/white dot
Pink
Orange/yellow dot
CE33 Installation and service Chapter 10-9
10.7 Optional connections
External alarm and function switch

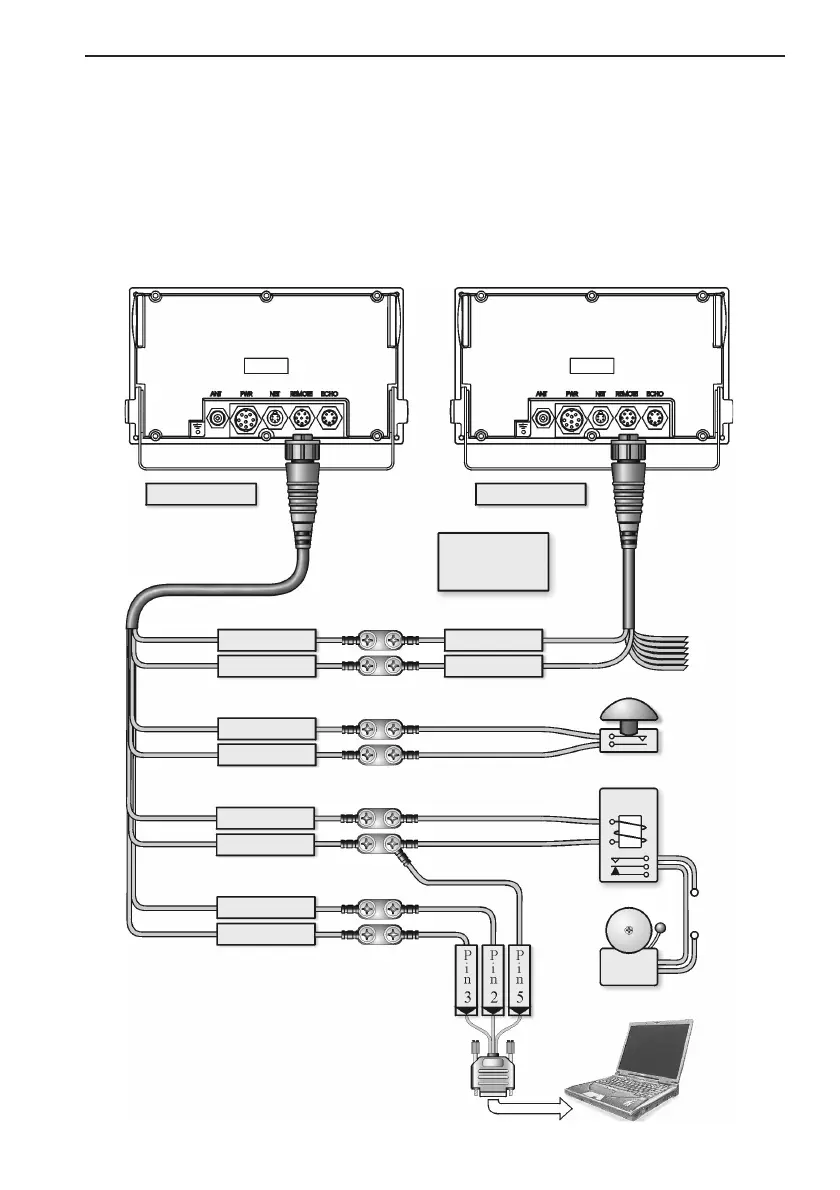

The REMOTE connector (refer to section 10.6) includes connections for the
dual station as well as the external alarm and function switch. If connection to
external alarm or function switch is required, the remote cable must be cut and
rejoined as illustrated below:
CE33 DS33
