CE33 Chart menu and INFO windows Chapter 3-1

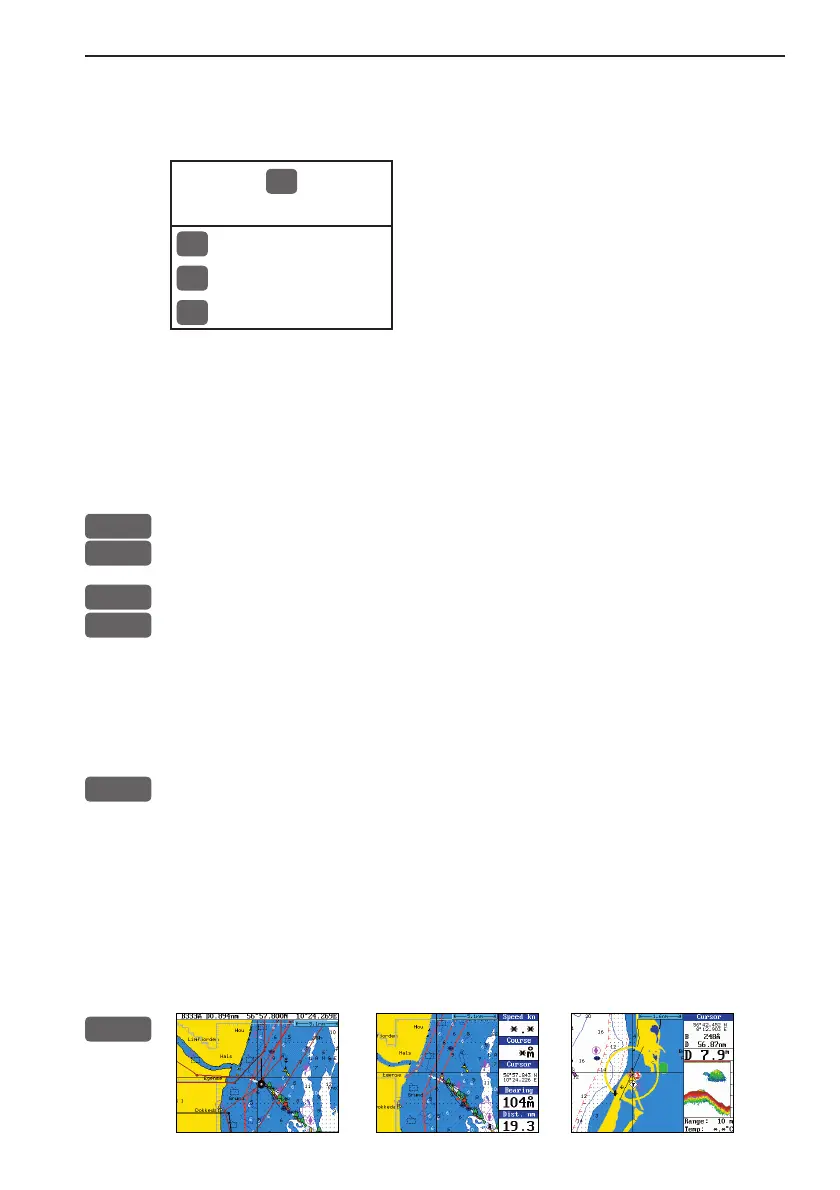

3. Chart menu
1
CHART
1
Chart 1 1:26400000
- see section 3.1
2
Chart 2 1:6600000
- see section 3.1
3
C-MAP cartridge
- see section 3.2
 For safety reasons, navigation with electronic charts should always
be combined with authorized paper charts.
3.1 Charts
MENU
Call up the menu bar, and...
1,1
press [1] and [1] to call up Chart 1
MENU
Call up the menu bar, and...
1,2
press [1] and [2] to call up Chart 2
The chart display opens for the built-in world chart, as well as the
optional, detailed C-MAP electronic chart system, which of course
will require that a C-MAP NT+ C-card is inserted in the drawer
below the keypad.
CHART
Hotkey to chart functions:
1. Jumps to page with Chart 1 if present in the page system.
2. Jumps to page with Chart 2 if Chart 1 is not in the page system.
3. Inserts Chart 1 in active page if no chart is in the page system.
4. Toggles data/sounder panel on/off.
5. Hold [CHART] key for 2 seconds to toggle between Chart 1 and
Chart 2.
Chart Chart + data field Chart + sounder field
CHART
  
