CE33 Chart menu and INFO windows Chapter 3-5
3.2 C-MAP cartridge
On the unit’s front below the keypad is a watertight drawer wherein
you place the C-MAP cartridge/C-card you wish to load.
Do not attempt to insert or remove a cartridge unless the unit is
turned off, or chart reading is in stand-by - see below.
MENU
Call up the menu bar, and...
1,3

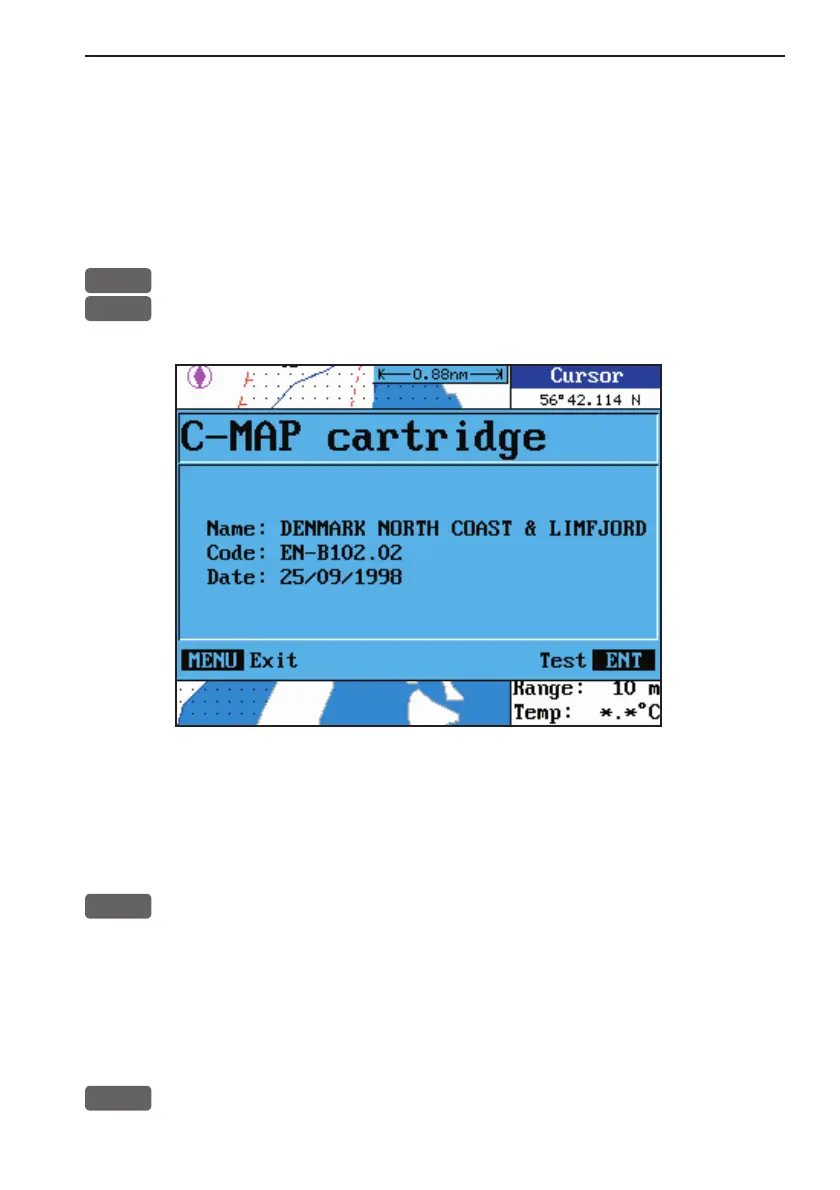

load the pop-up window for C-MAP cartridge (which also brings the
chart system in stand-by)
To open the drawer below the keypad, press the eject key next to the
drawer. Place the cartridge in the tray with the terminals pointing
towards the unit, and push the drawer back in place - make sure it is
closed tight, so it remains watertight.
ENT
Press [ENT] to test the data on the C-MAP C-card
The unit will now test the data on the C-card to see if its valid and
free from faults.
If a C-card is defect, it must be removed before you can exit the dis-
play.
MENU
Exit the window
