CE33 Position menu Chapter 4-7

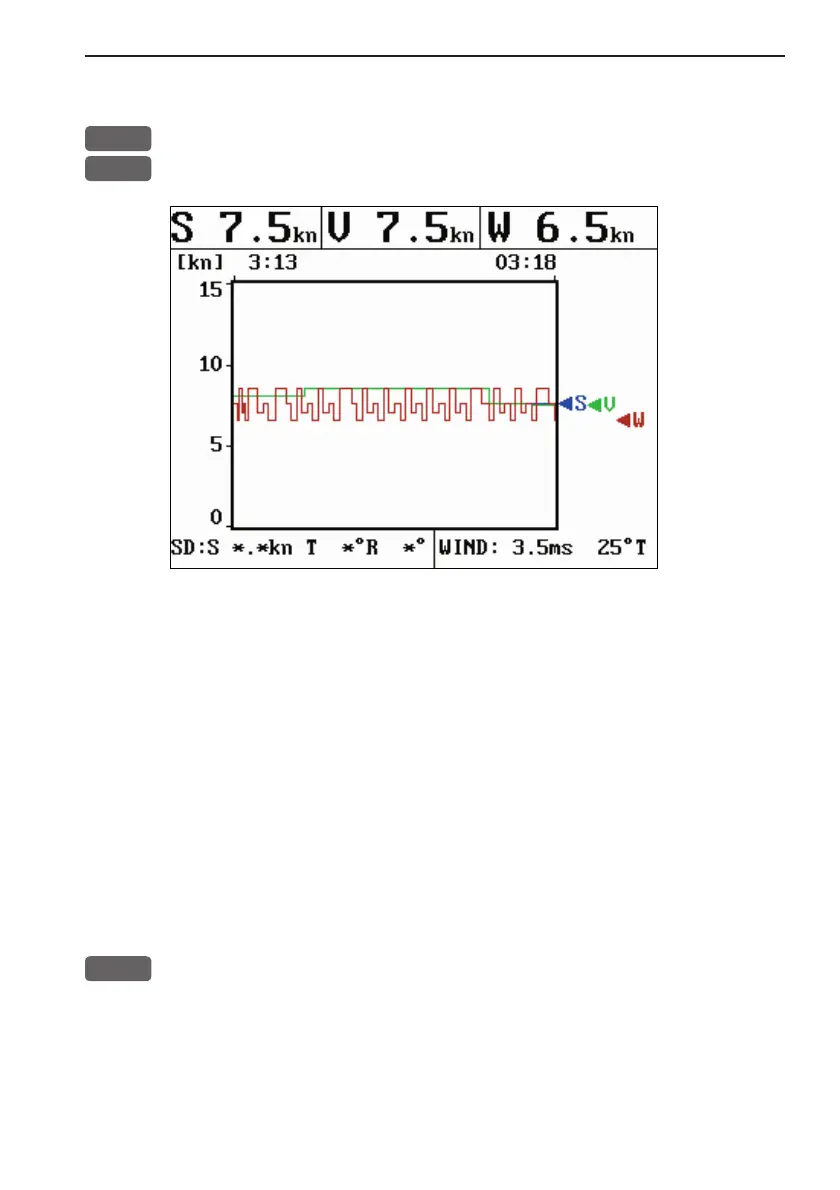

4.4 Speed diagram
MENU
Call up the menu bar, and...
2,4
load “Speed diagram”
S= Speed over ground.
V= Velocity towards waypoint.
W*= Speed through water.
SD (Set and drift)*= Speed and direction, true or relative.
WIND*= Speed and direction.
* Connection to external sensors is required.
ENT
Call “Speed diagram setup”
- see next page.
