Simrad CS66
4 20221859 / F

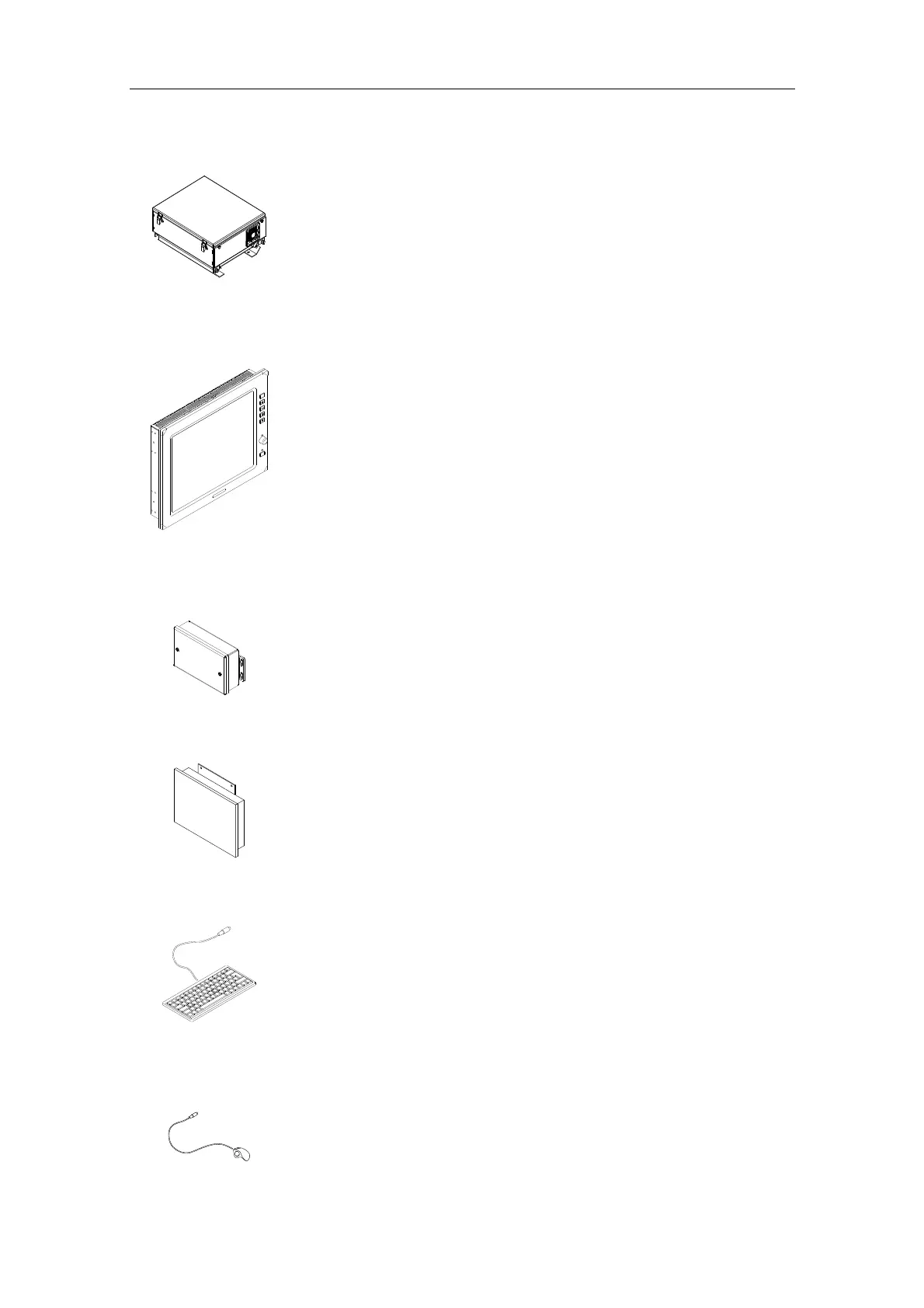

MC50 MKII computer
MC50 MKII is built around a high–performance computer,
running Microsoft
®
Windows XP™ operating system.
The computer includes floppy drive and DVD-RW drive.
Monitor
A monitor must be included in the system. This might be
supplied by others.
An optional second monitor can also be included.
A separate Instruction manual is delivered with the monitor.
This manual includes description for the monitor’s operation and
adjustment.
FB200 Filter box
FB200 is used for filtering the power to the computer to avoid
electromagnetic interference.
Chart Interface unit
All external equipment is connected to the CS66 system via the
Chart Interface unit.
Cherry keyboard
The keyboard used in the CS66 systems is a low-profile compact
keyboard with 86 keys.
TrackMan
®
wheel
Logitech TrackMan
®
Wheel is used as pointing device in the
CS66 system.
