USER INTERFACE
20221859 / F 23

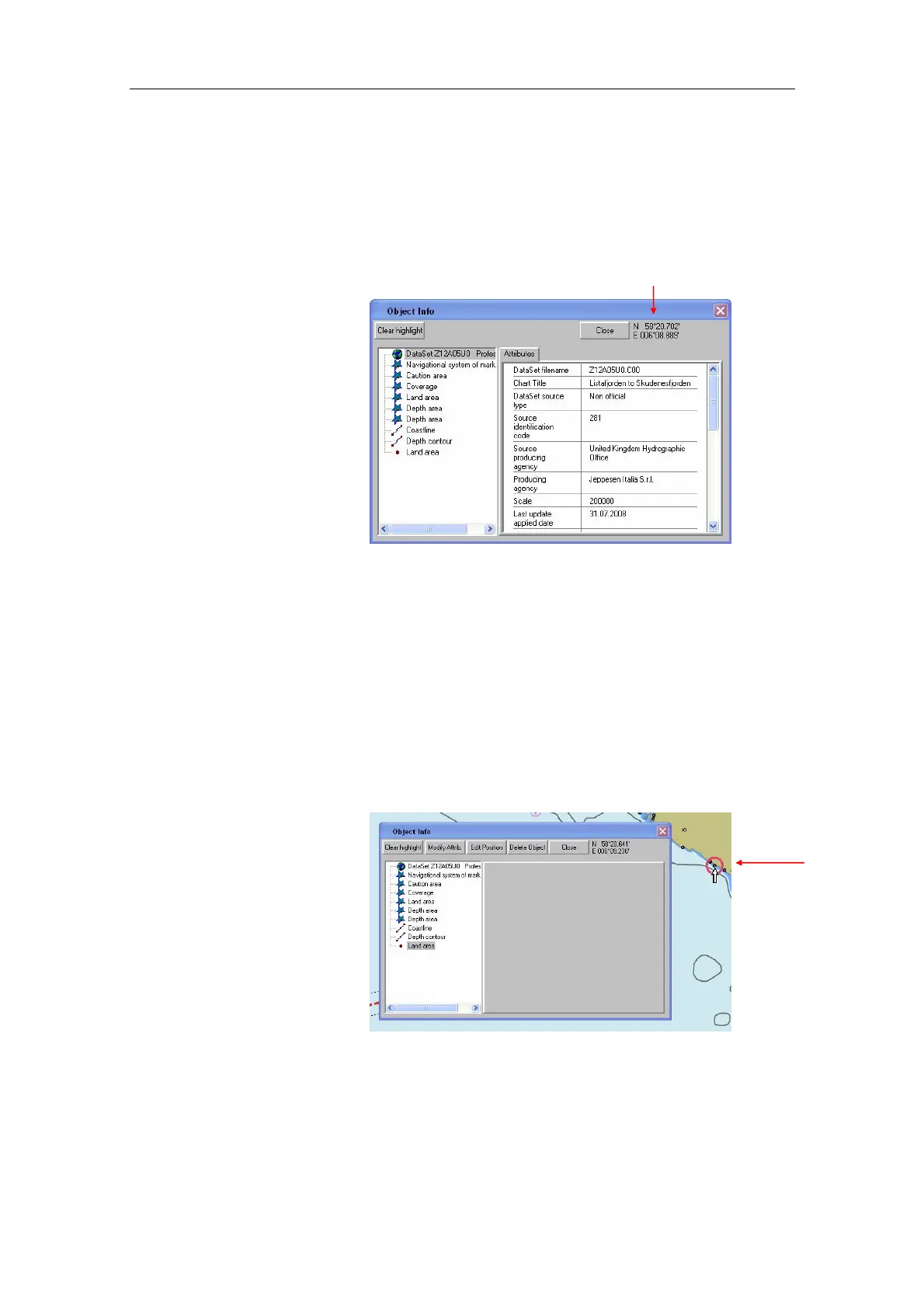

Object information window
When moving the cursor to the object and clicking the right
cursor key, the object information dialog will be displayed. The
dialog shows a list of information for the selected object/area,
together with cursor position when the right key was pressed.
List of objects in the information dialog will depend on
available information for the selected area.
When an object in the information dialog is selected, available
information about the object will be displayed in the right
column.
If an object is double clicked in the object information dialog,
the corresponding object will be highlighted and labeled with an
arrow in the chart.
If it is possible to edit information about the selected object,
additional keys for moving, editing and deleting the object will
be available in the information dialog.
All marks on objects in the chart will be removed when tapping
Clear highlight.
