Simrad NSE12 Installation Manual

30 | Wiring the NSE

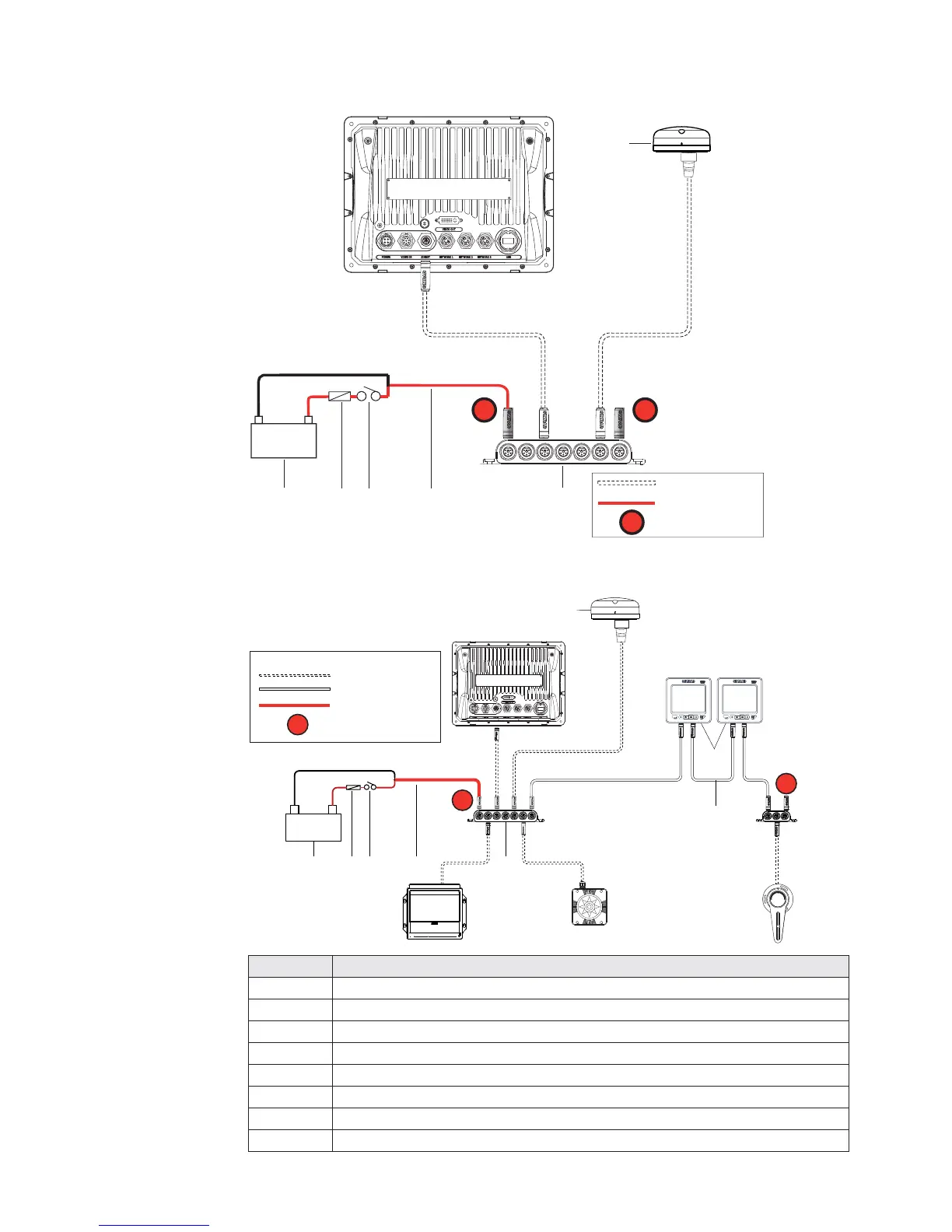

The drawing below shows a small SimNet network. Power is introduced at one end
using a SimNet power cable with termination ending with a second terminator.
12 V DC
ABC D E
F
T T
T
SimNet drop cable
SimNet power
SimNet terminator
-
+
A slightly larger system is shown below. Power is connected at one end using terminated
power cable. A second terminator is required at the end of the backbone.
+
_
12 V DC
MenuMenu
SimNet backbone
SimNet power
SimNet terminator
A
B
C
ED
G
H
F
SimNet drop cable
T
T
T
Key Description
A SimNet power source. Stable 12 V DC only
B 5 Amp fuse or breaker
CSwitch
D SimNet power cable with termination (red disc) (24005902)
E SimNet 7 way joiner
F SimNet or NMEA 2000 GPS antenna
G SimNet backbone daisy chained using instruments with two SimNet ports.
HSimNet backbone
