Simrad NSE12 Installation Manual

Wiring the NSE | 31
For a large systems or sailboats with a mast head wind sensor and long mast cable, it
is recommended to use a SimNet noise filter (24006934). On sail boats the filter should
be inserted at the mast junction. On larger systems without a mast head unit, the filter
should be inserted centrally along the backbone.
Menu
Menu
Menu
T
T
+
_
12 V DC
ABC
G
G
E
F
F
F
E
D

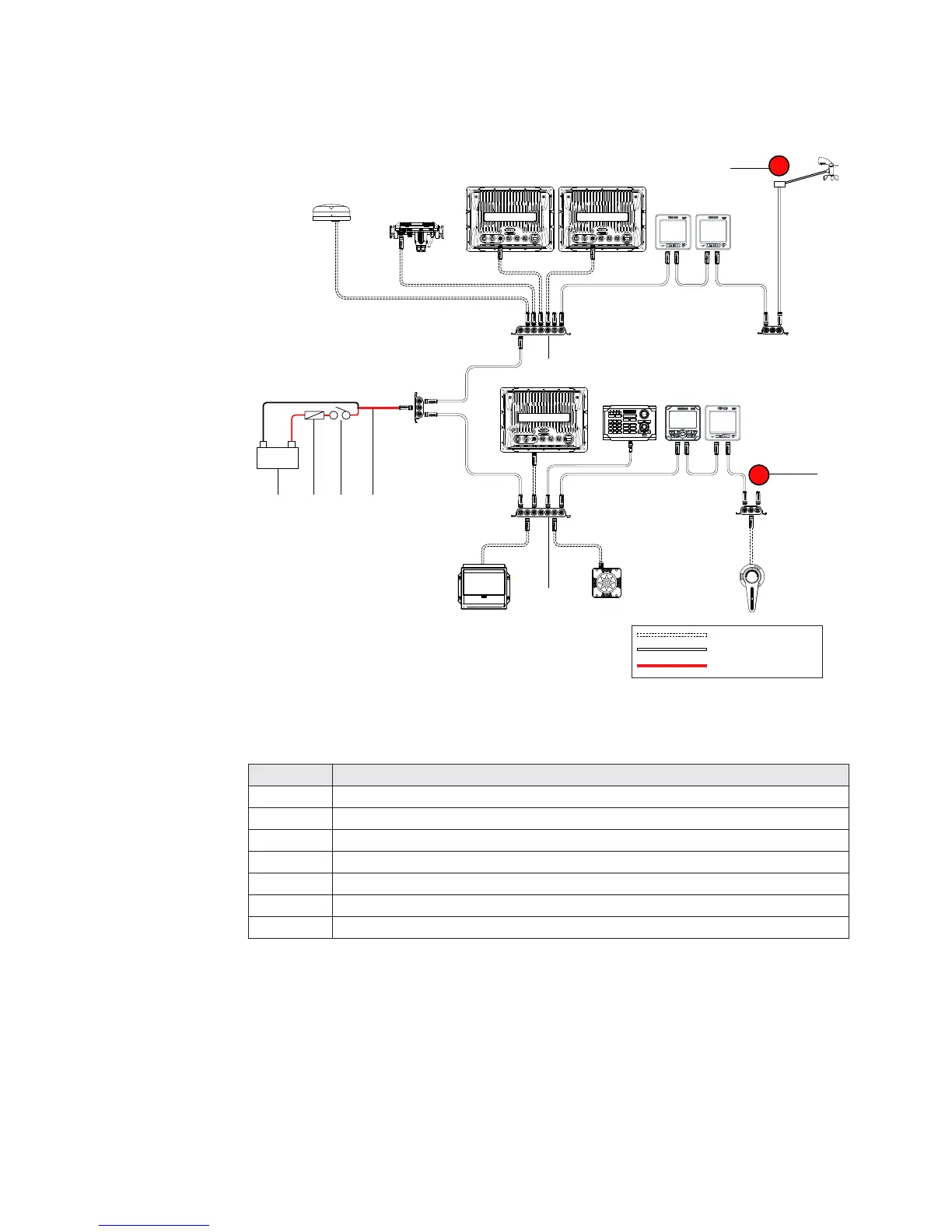

SimNet backbone
SimNet power cable
SimNet drop cable
Key Description
A SimNet power source. Stable 12 V DC only
B 5 Amp fuse or breaker
CSwitch
D SimNet power cable without termination (yellow disc) (24005910)
E SimNet 7 way joiner
F SimNet 3 way joiner
GTerminator
