Sindoh M612 - Base Unit Pickup Roller Separation

104

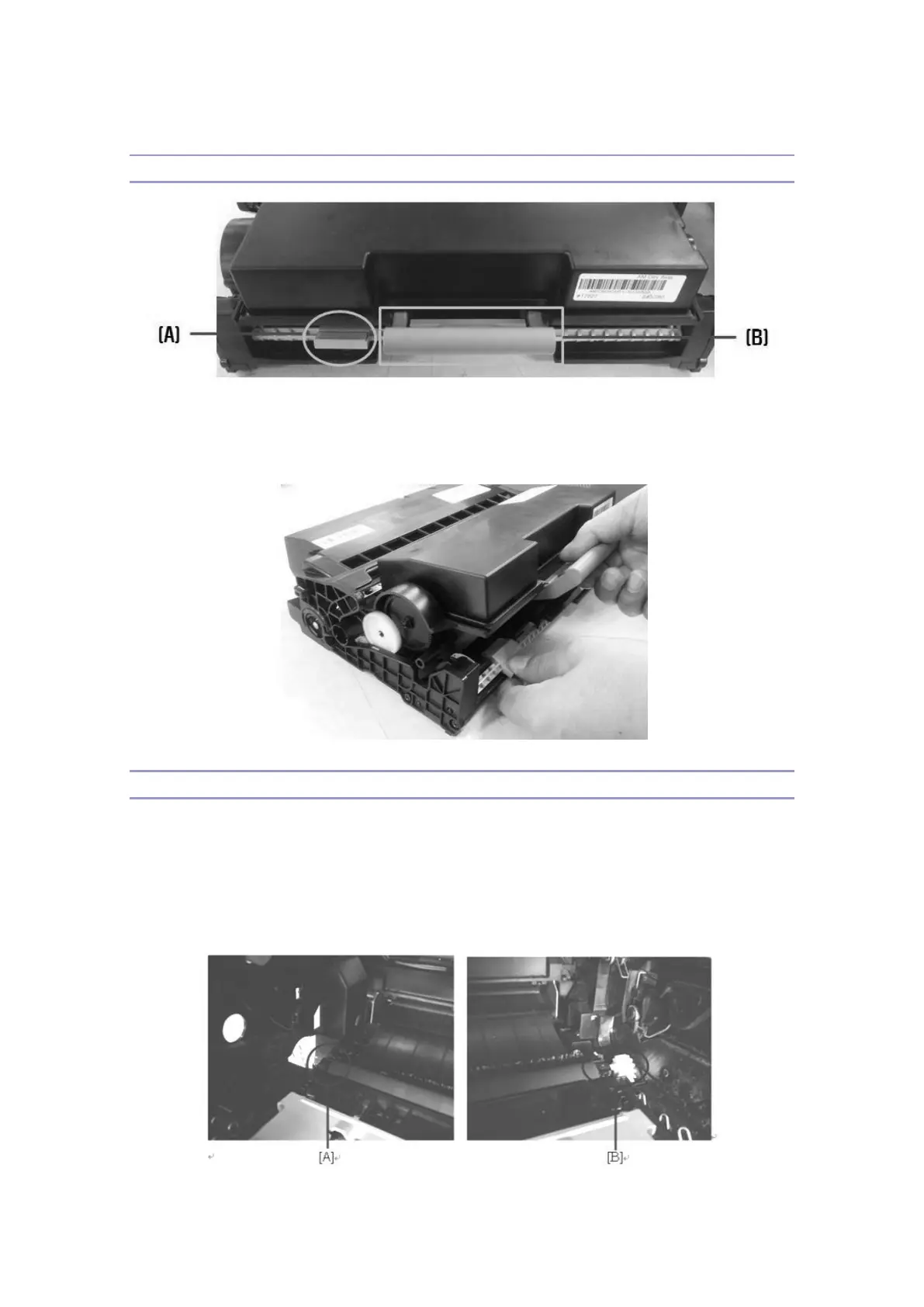

Separating Drum Cartridge and Toner Cartridge
1. Grab the handle of [B] with pressing down the pressure release lever of the toner
cartridge.
2. Separate the drum cartridge while lifting up the toner cartridge obiquely
Transfer Roller
1. Remove the font cover.
2. Remove the image cartridge.
3. Lift up the transfer roller with releasing a hook of the left bushing of it.
4. Likely the same, remove the transfer roller by lifting it up with releasing a hook of the
right bushing of it.
