ADF CORE FRAME ASST

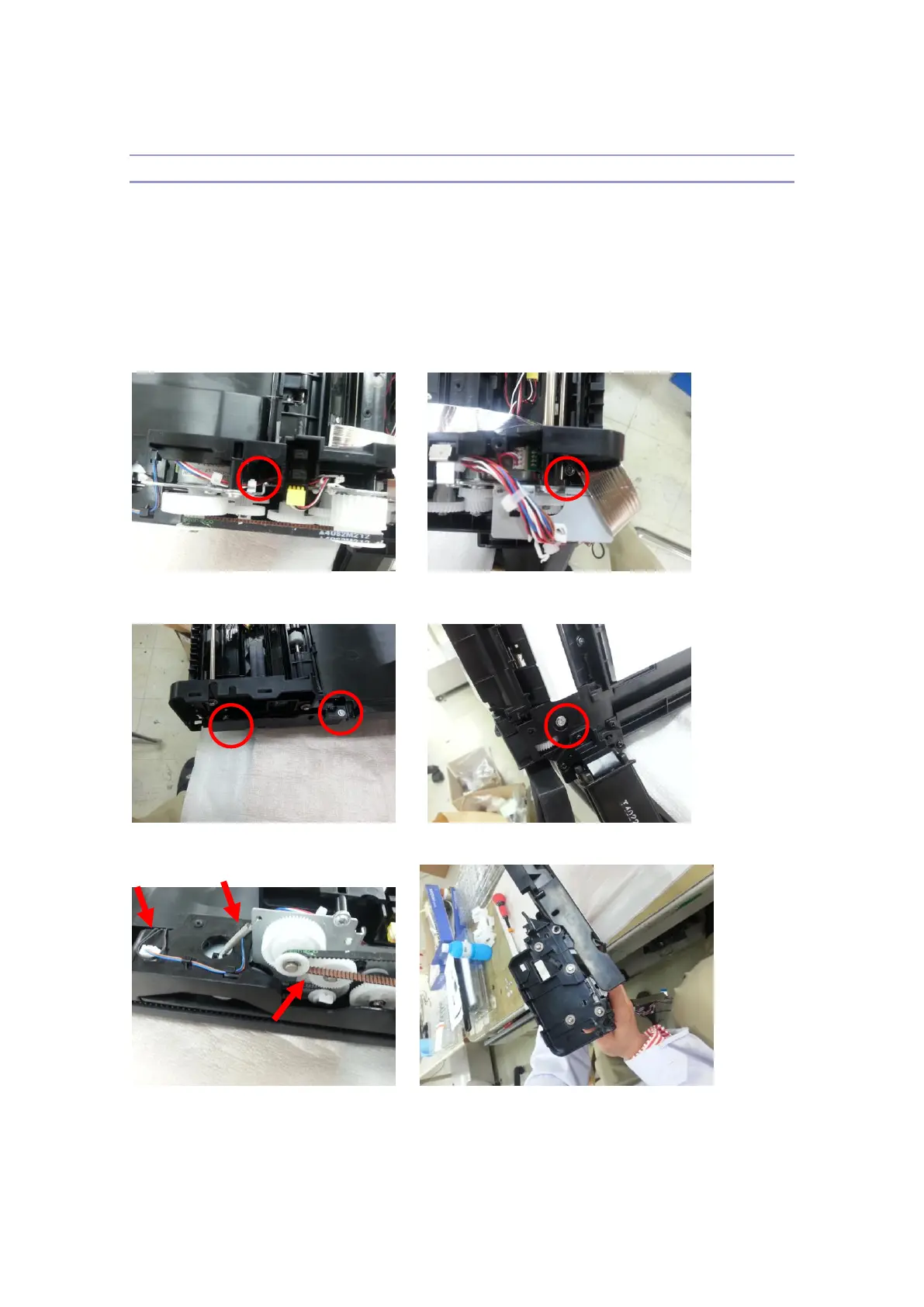

1. Remove ADF assembly.
2. Remove ADF TOP cover.
3. Remove ADF front cover.
4. Remove ADF rear cover.
5. Remove ADF document tray assembly.
6. Remove 4 screws and the bolts at the bottom side of ADF.
7. Release the springs, harnesses and the timing belt for driving A3.
8. Release Core frame pulling it obilquely.
(When dis-assembling, lift up the lower guide slightly with a finger)
