Sindoh M612 - Driver Layout; Main Driver Gear Unit

19

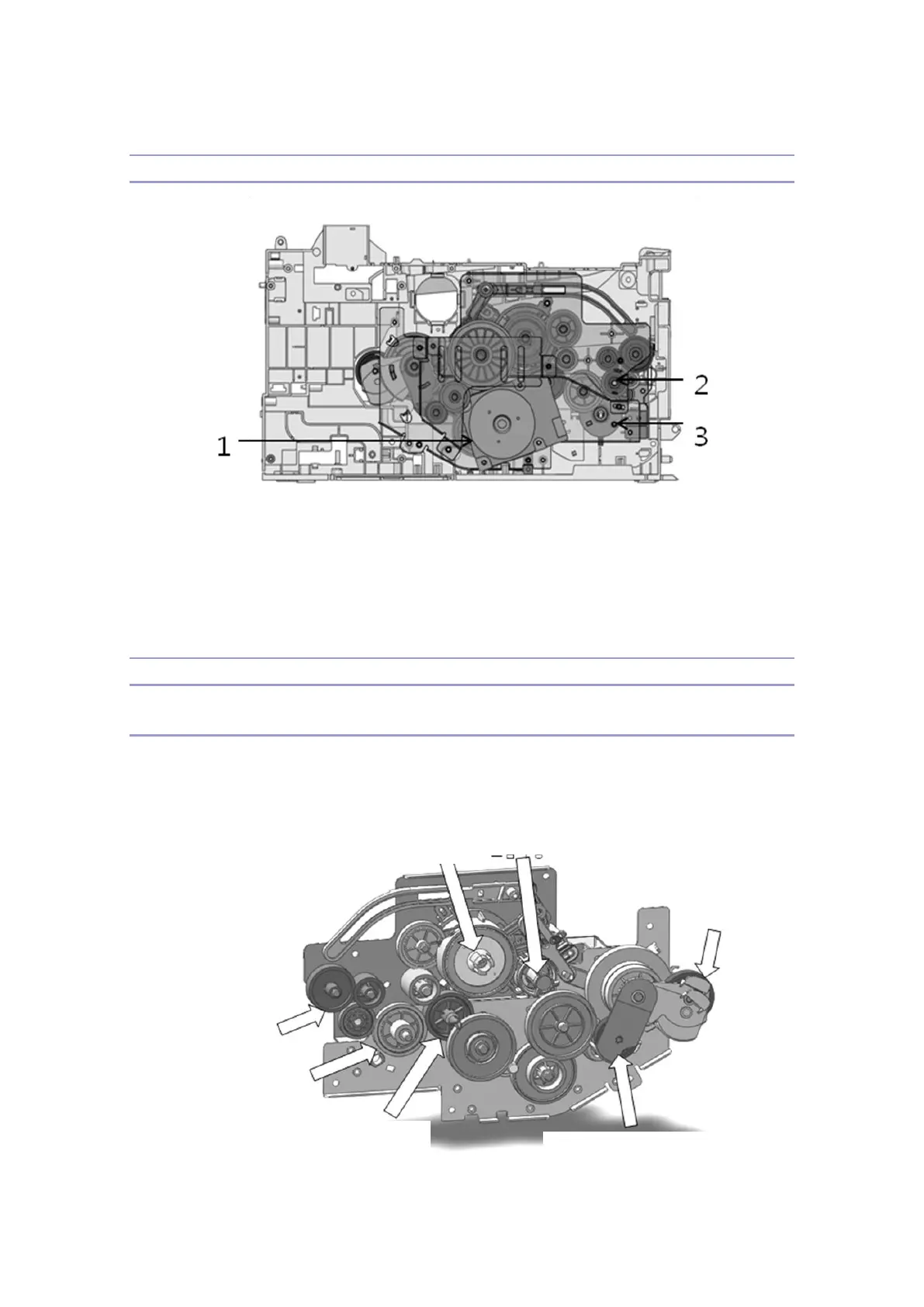

Driver Layout
1. Main Motor
2. MPT Feed Solenoid
3. Electronic Clutch of Tray Feed
Main Drive Gear Unit
Components of Main Drive Gear Unit
There is one main motor in the machine and the rotation power is delivered to a set of gear
consisting of many gears drives developer/drum, Fuser, manual tray, Fuser, duplexer,
Register roller and pickup roller..
Driving MPT
Driving pickup roller
Diriving resist roller
Driving duplex unit
Driving fuser unit
Driving drum unit
Driving developer unit
