108
2. Remove the fuser assy.

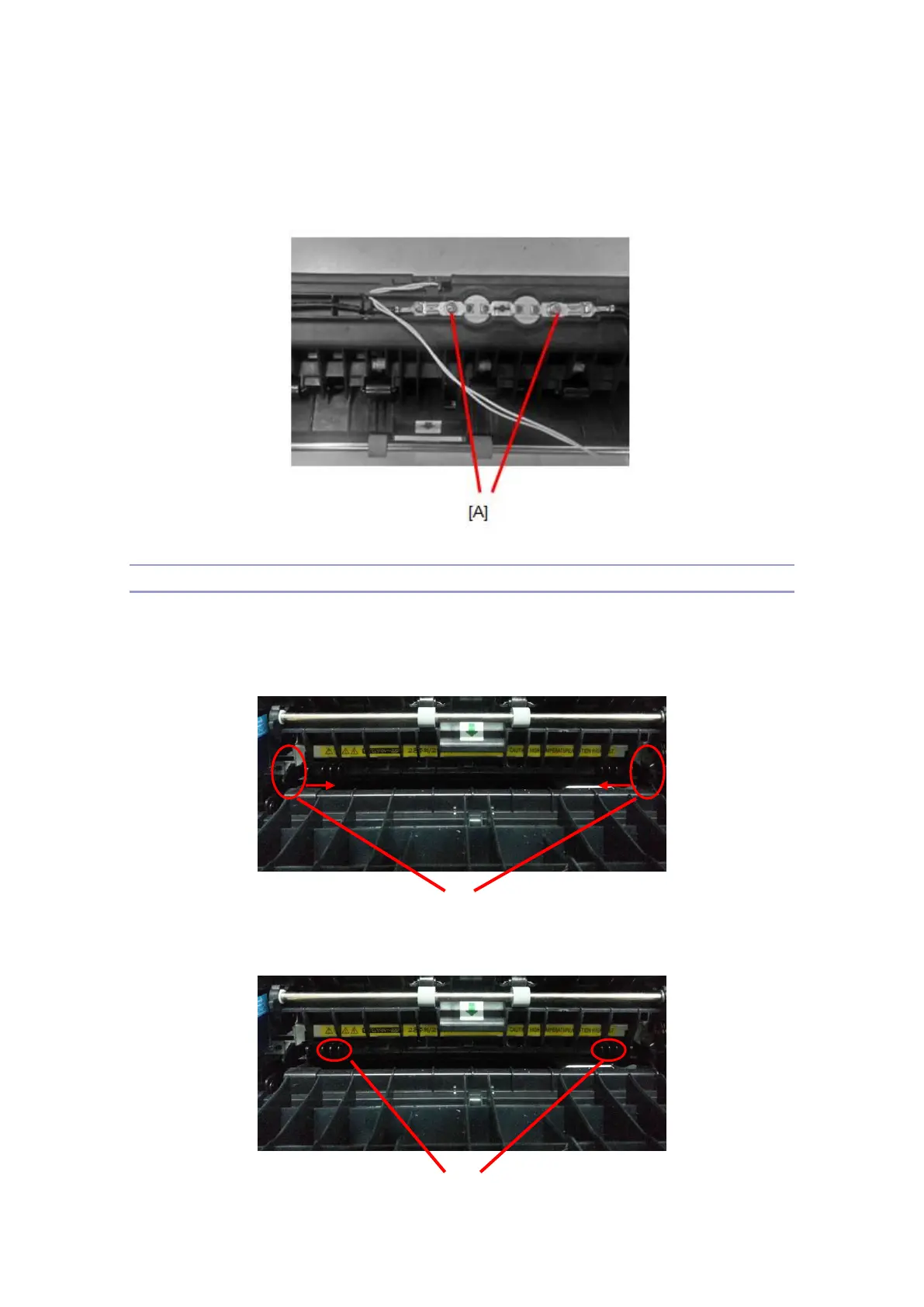

3. Remove 2 screws fastening the thermastat.
Replacing Cleaning Roller
1. Open the rear door.
2. Pull out the cleaning roller from the base unit while pressing the BKT of the cleaning
roller, in the arrow direction, which is circled in red[A].
[A]
3. When assembling, place the cleaning roller assy on the right position and fasten it by
pressing the area [B].
To Next Page
