Dis-assembling ADF CIS

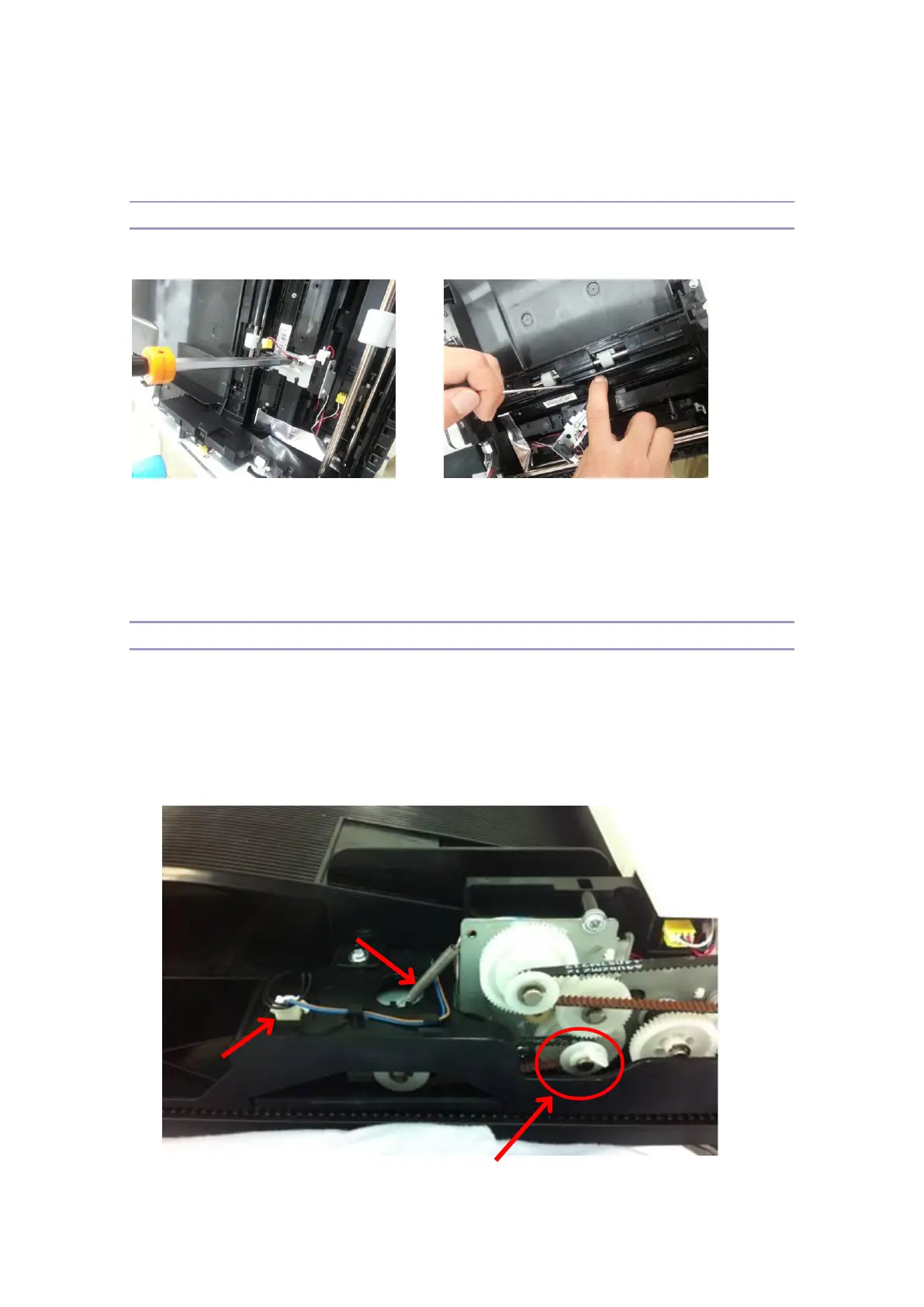

1. Dis-assemble INTERVAL sensor bracket and then ADF CIS with pressing back
the hook which is used to fasten CIS.
A3 Clutch Assembly
1. Separate ADF assembly from the base unit.
2. Separate ADF REAR FRAME.
3. Separate ADF White Cushion.
4. Separate CLUTCH EARTH SPRING and CLUTCH relay Harness.
5. Separate SANP RING and SPACER, and then A3 TIMING BELT.
SANP RING / SPACER / A3 TIMING BELT
To Next Page
