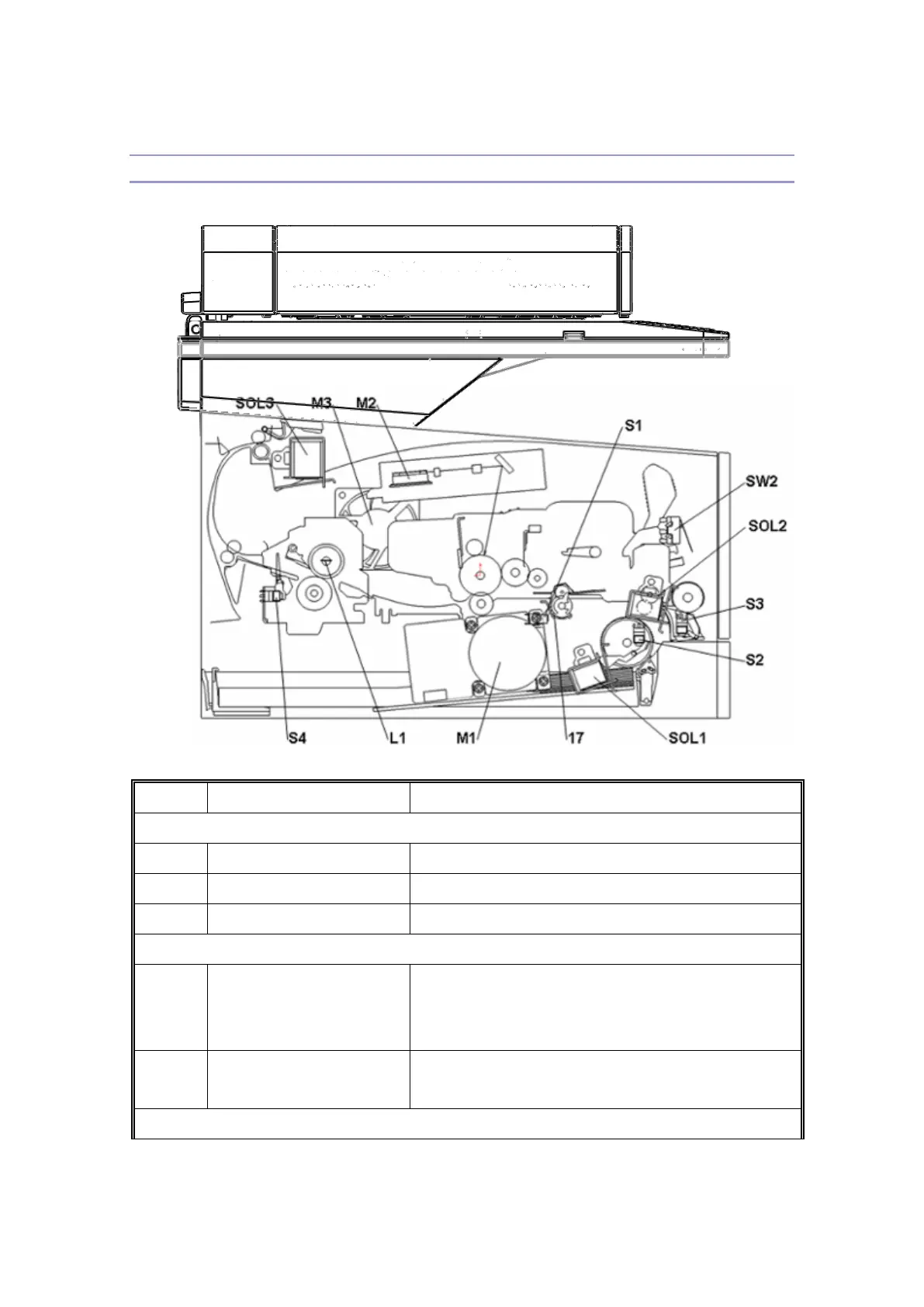

Electrical Components
Symbol
Name
Function
Motor
M1
Main
Drive the main body.
M2
Polygon Mirror
Rotate polygon mirror motor
M3
Vent Fan
Remove the heat around Fuser
Switch
SW1
Power
Supply the power to the machine. If it is off, no
power is supplied to the machine. (located at lower
rear and right side)
SW2
Front cover
Detect the front cover open or closed, and block
the power line of +3.3VLD and +24V dc.
Sensor
