Pickup Unit Layout and Mechanism
The Pickup Unit consists of the below 3 components and the role of them is as follow
1) Pickup Roller : Pickup the paper using the tray feeding pressure.
2) Pickup Motor : Supply the power for the rotation of Pickup Roller, and control the
feeding speed by adjusting the timing.
3) Driving Gear Set (Acufeed Arm Assy):
Deliver the power for Pickup Motor locating between Pickup Motor and Pickup Roller.

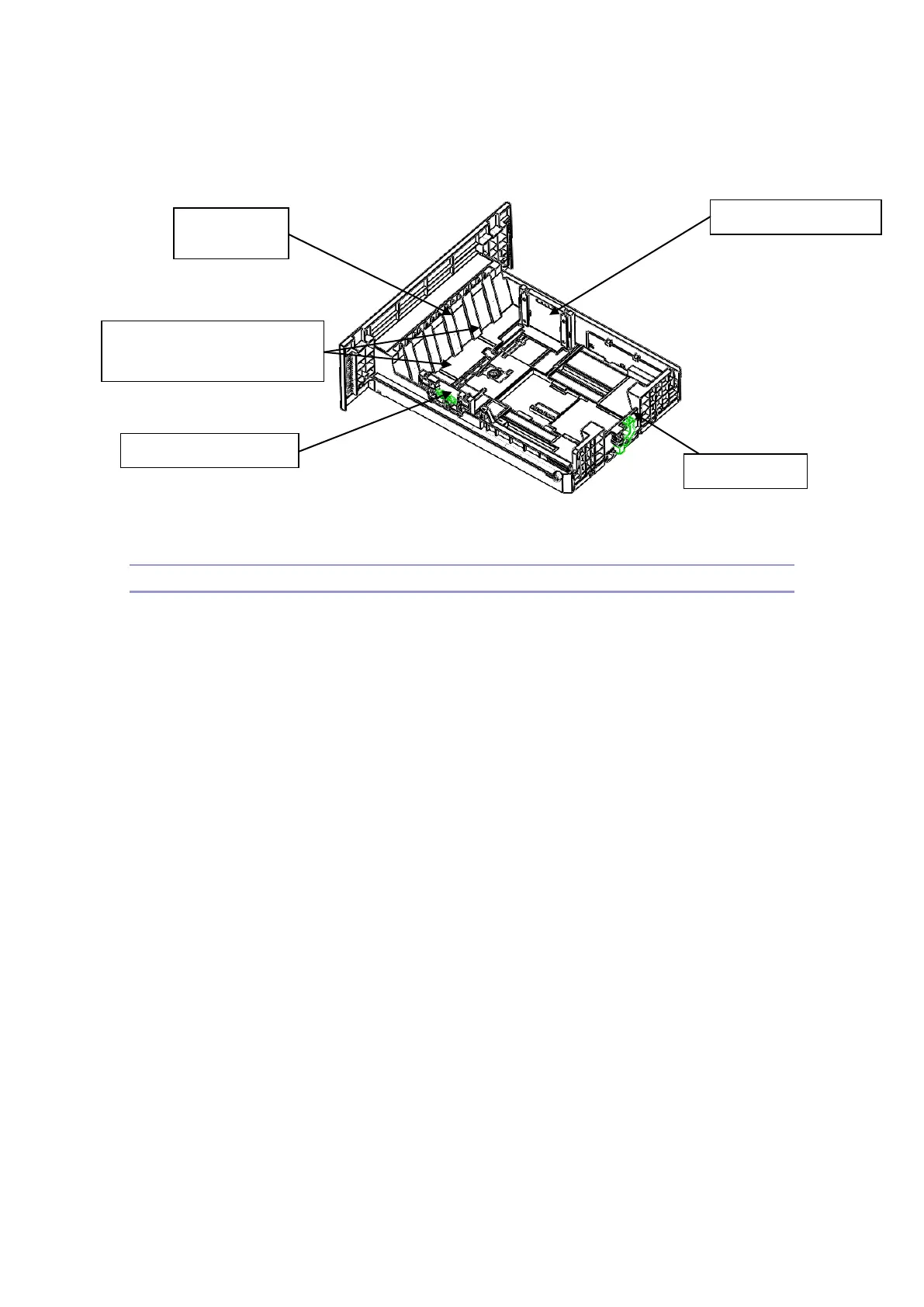

Separation
dam (5EA)
2) Right Fence
2) Right Fence
3) Rear fence
4) Bottom friction pad
(2EA)
