Sindoh M612 - Scanner Flatbed Assembly Removal

146
Removing ADF Assembly
1. Remove the rear cover of PINETREE(-S) base unit.
2. Remove the left side cover of PINETREE(-S).
3. Remove ADF assembly cable from the control board.

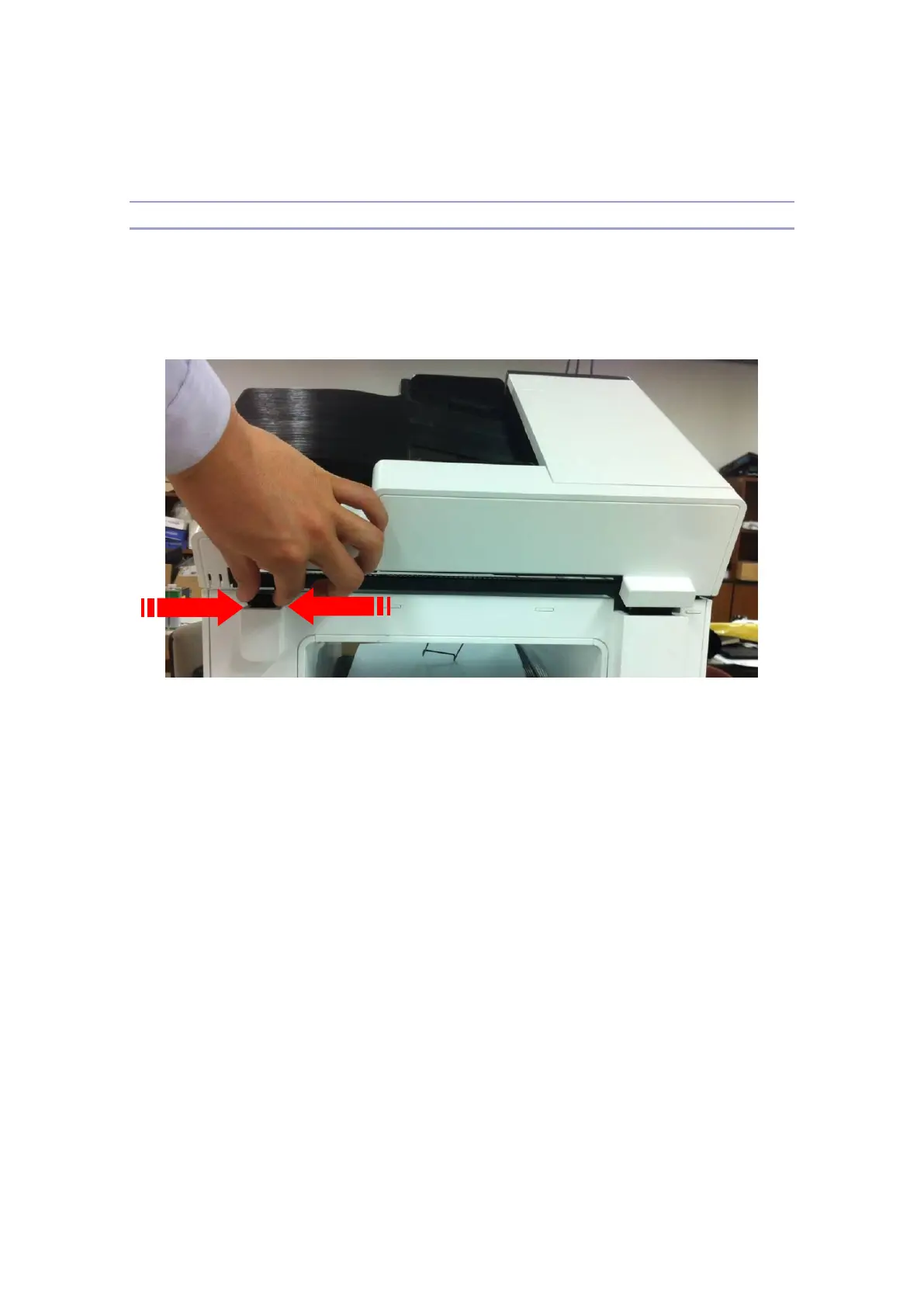

4. Separate ADFassembly from the MFP base unit by lifting it up while pressing the righ
side hinge of the assembly in the arrow directions.
