automatically feeding and delivering the original stacked on the tray
The ADF consists of a tray Assy that the original is placed on, an upper cover Assy that
protects the tray unit and is in charge of initial delivery of the original, an upper guide Assy
that takes care of the main delivery unit, a drive motor Assy and ADF frame Assy that
supports it, and also A3 scan Assy in charge of A3 scan unit and covers covering this Assy.
And there is hinges that enable to open or close ADF when copying booklets.

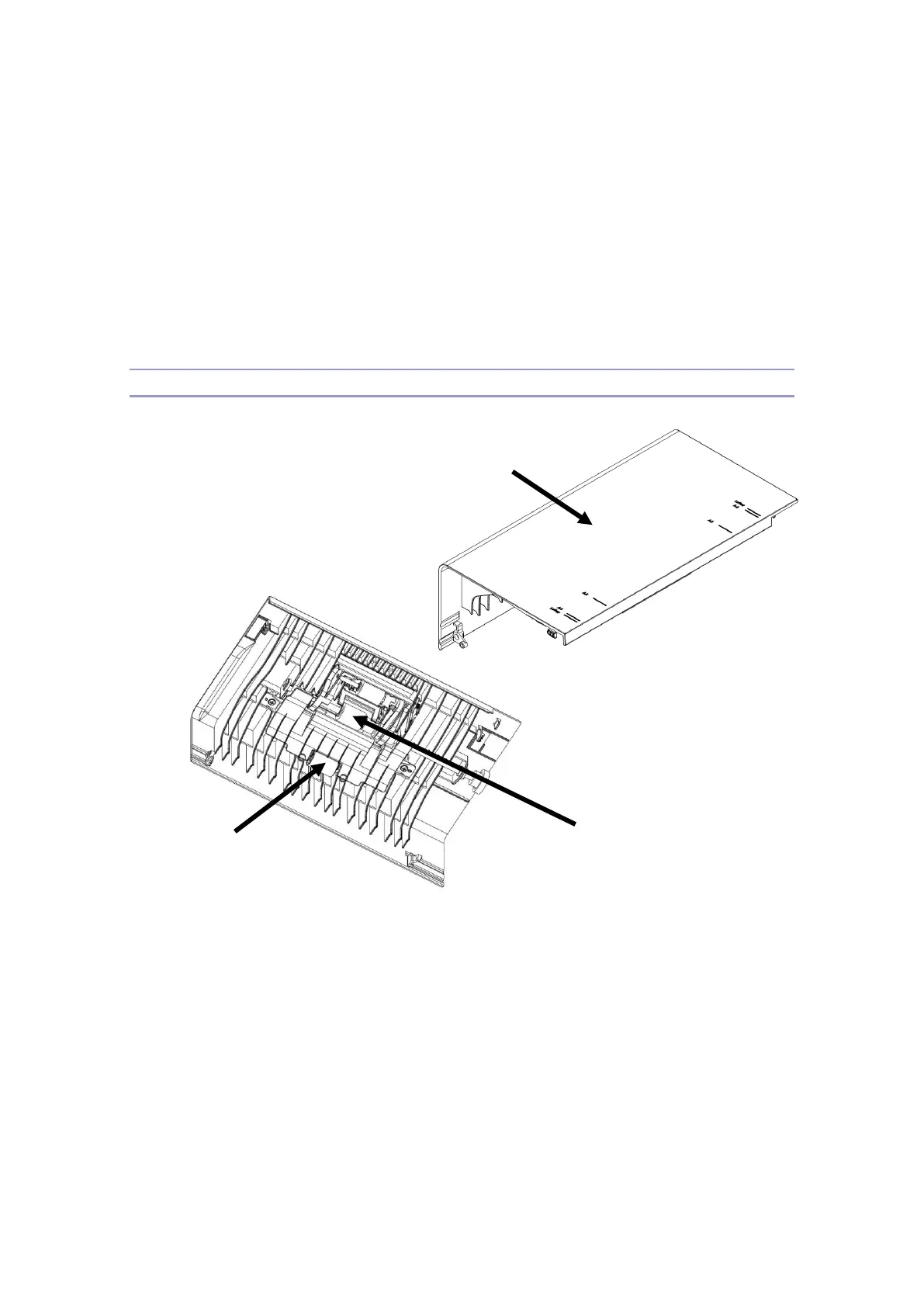

Components Layout of ADF Upper Cover ASSY
ADF upper cover ASSY consists of Pickup Assy that protects the tray unit and is the
starting point of the delivery of the original, and Idle roller.
Also, initial paper jam during the delivery process can be removed by opening the upper
cover. The paper sizes are imprinted at the top of the upper cover to make sure of the
paper sizes and help with the user`s scan and copy work.
ADF upper cover
Idle roller
