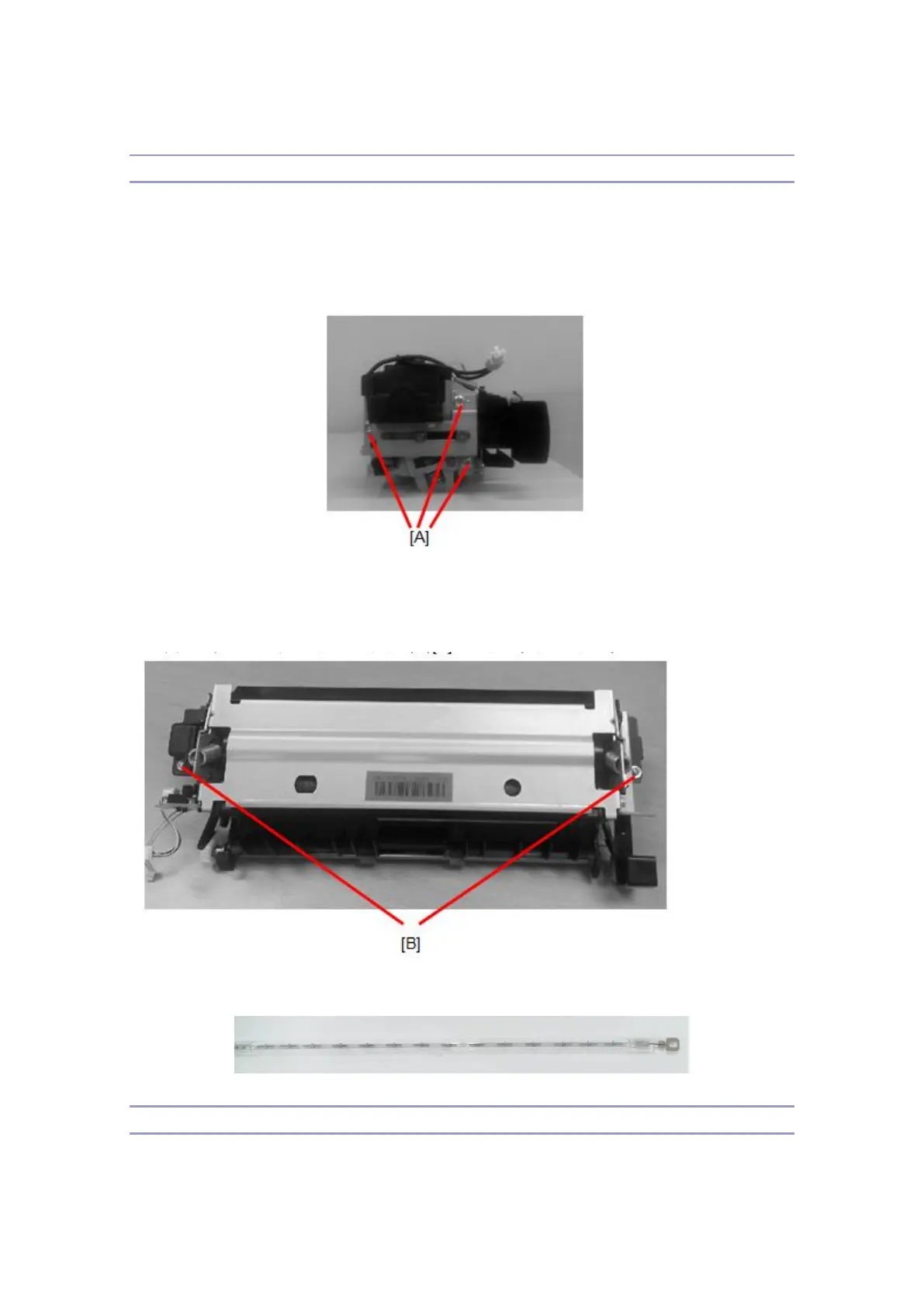

Replacing Fuser Lamp
1. Open the front door.
2. Remove the rear cover.
3. Separate the fuser assy from the base unit.
4. Remove 3 screw[A] to dis-assemble the BKT of the pressure release lever.
5. Dis-assemble the fuser assy by removing 2 screws[B] from 2 side covers of the
assy.
6. Remove the covers, and then release 2 screws fastening the fuser lamp.
Replacing Thermostat
1. Open the front door , and then remove the rear cover.
