Components Layout of Scan Cover ASSY

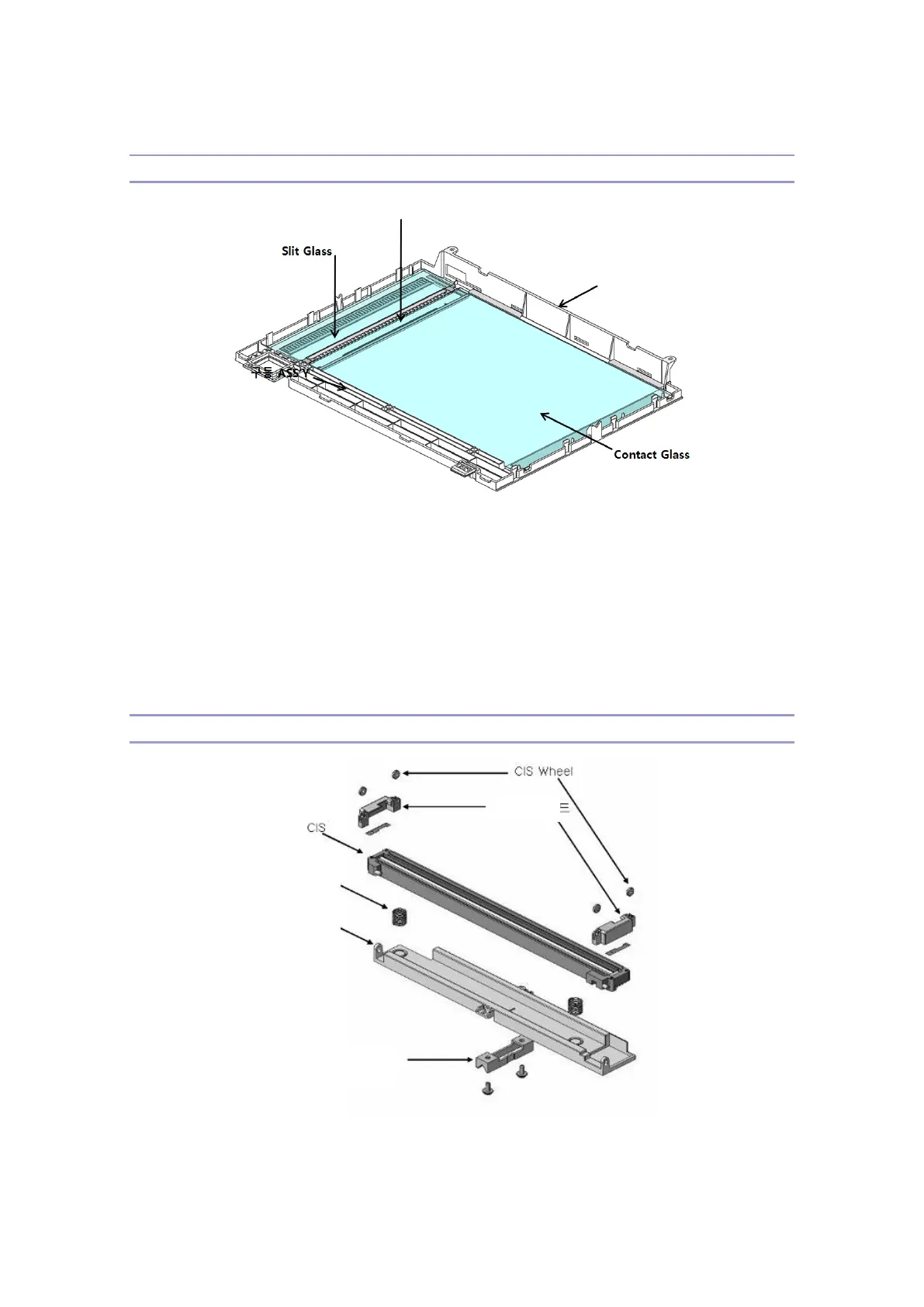

The Scan cover Assy consists of Scan cover supporting the entire cover, Glass for placing
the original, and various double side adhesive tapes firmly gluing each other. By this time,
the height levels of Slit glass and Contact glass should be idential to get the same image
quality when scanning from flatbed and ADF. Also when driving CIS, it needs to move
without any obstacle in the space between Slit glass and Conact glass
Components Layout of CIS ASSY
