Fusing Images
Overview

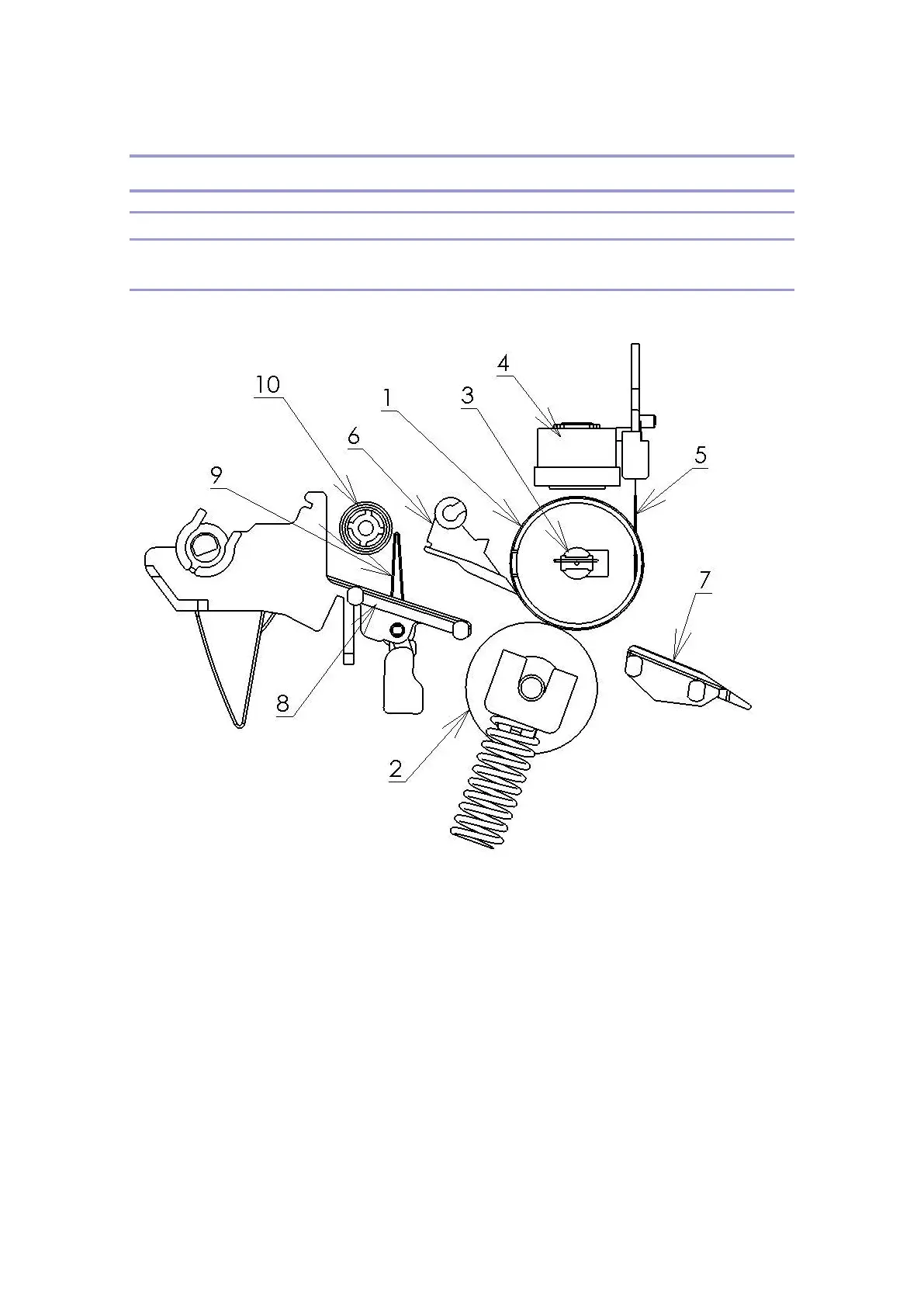

Components Layout of Fuser
The Fuser and the paper exit area consist of the following components.
1. Fusing roller
2. Pressure roller
3. Heater
4. THERMOSTAT
5. THERMISTOR
6. Separatior
7. Input guide
8. Exit guide
9. Exit sensor
10. IDLE roller
