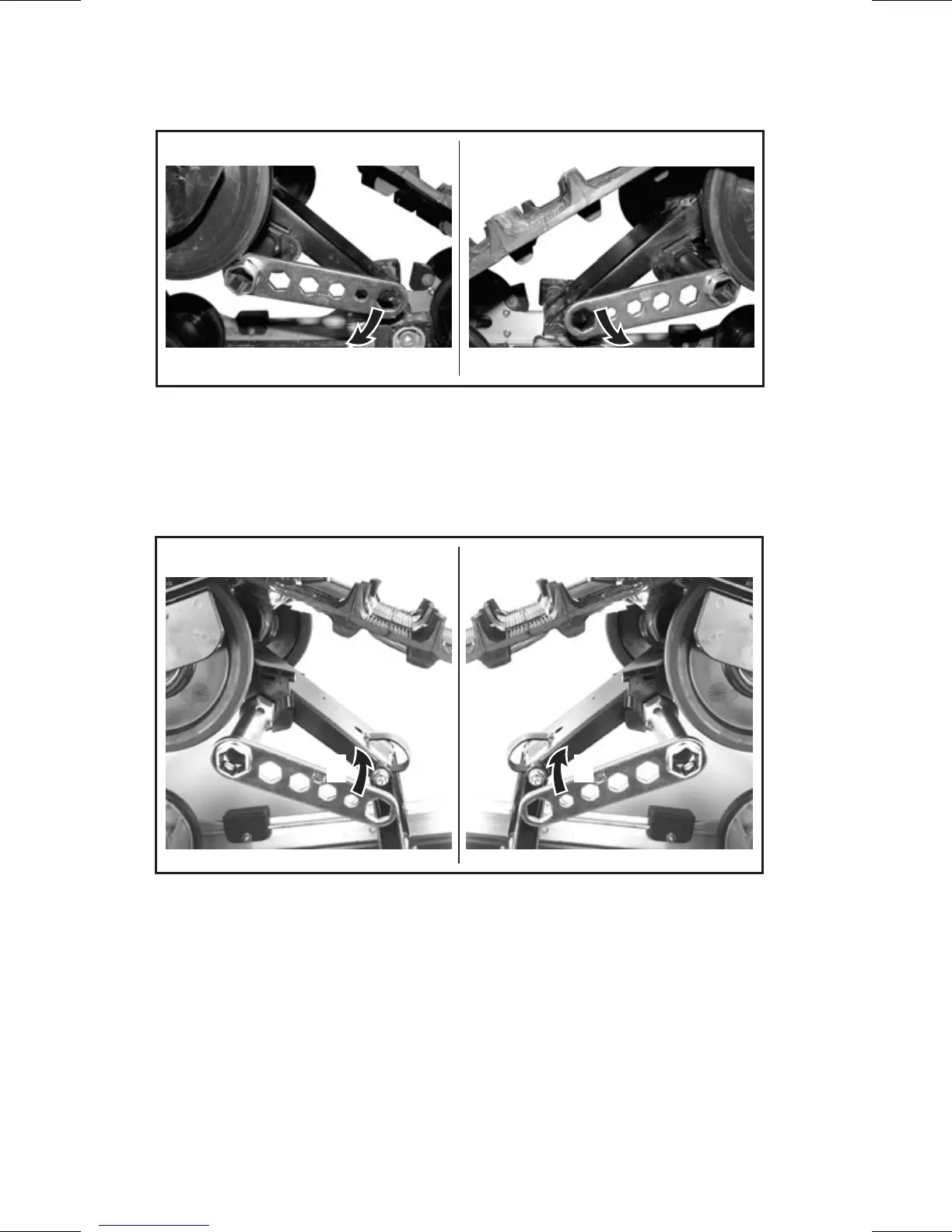

CAUTION: To increase preload, always turn the left side adjust-
me nt c am in a c loc kw i se dire cti on, and the right side ca m in a
counterclo ck w is e direct ion .
A32F41A
RHLH
1 1
TYPICAL
1. Increase spring preload
CAUTION: To decr e as e prel oad, a lw a ys turn the le ft s ide adjus t-
me nt c am in a c ountercloc kw ise d ire ction, the right s ide ca m in
a clockwise direction.
A30F04B
RHLH
1 1
TYPICAL
1. Decrease spring preload
Cente r Sp ring — Steerin g Beh avior
• Ride at moderat e speed on a trail.
• If handle bar i s felt too easy or too hard to turn, adjust c enter spri ng
accordingly.
144
