C
B
A
mmo2006-003-022_a

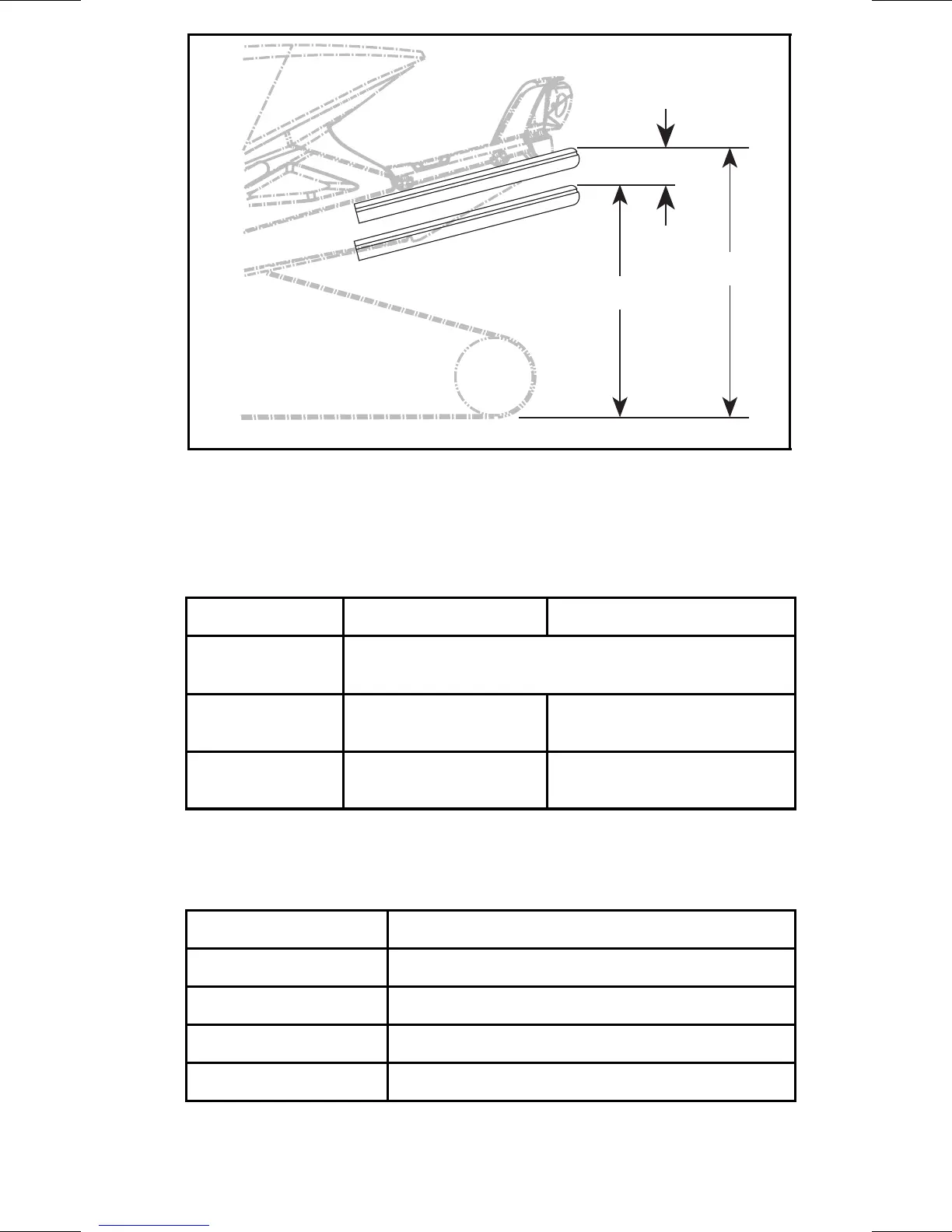

TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. Suspension has collapse with driver, passenger( s) and load added
C. Distance between dimension A and B, must not exceed 50 to
75 mm (2 to 3 in), see table
Re ar Spri ngs A dju st ment
”C” CA US E SOLUTION
50 to 75 mm
(2to3in)
No adjustment required
More than
75 mm (3 in)
Adjusted too soft
Increase preload
(see preload adjustment)
Less than
50 mm (2 in)
Adjust ed too ha rd
Decrease preload
(see preload adjustment)
Pre loa d Adjustmen t
N O TE:
Left and right adjust ment cams m ay be at different settings.
CAM POSITIONS SPRING PREL OAD
1
Minimum
2 Mi nimum/Intermediate
3 Intermediate/Maximum
4Maximum
_________________________
143
