Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
2.2-5 Emergency Lowering System
The emergency lowering system allows platform
lowering in the event of an emergency or an electrical
system failure. Refer to Section 2.6 for the emergency
lowering procedure. The system contains the following
controls:
1
3
2

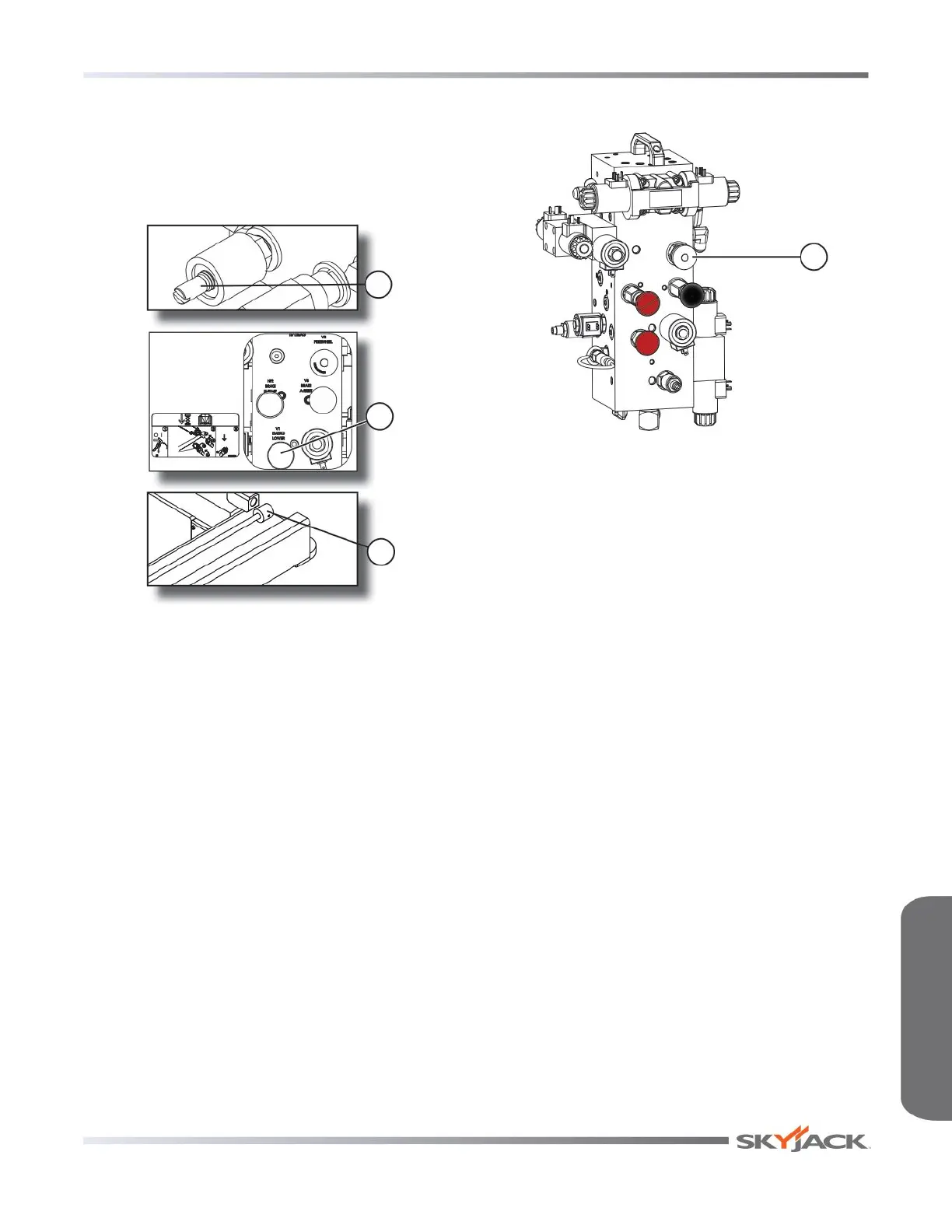

Figure 2-2. Emergency Lowering System
1. Holding Valve Manual Override Knob - Located
on the holding valve at the bottom of each lift
cylinder.
2. Emergency Lowering Valve - Located at the
motor/hydraulic compartment.
3. Emergency Lowering Access Rod - Located at
the right side of the base.
2.2-6 Lowering Warning System
A lowering warning system automatically stops the
lowering function before reaching the fully retracted
position and sounds the alarm.
2.2-7 Free-wheeling Valve
1
Figure 2-3. Free-wheeling Valve
1. Free-wheeling Valve - The free-wheeling valve
is located on the main manifold in the motor/
hydraulic compartment. Refer to Section 2.5-1 for
procedure on how to release the free-wheeling
valve.

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
