Rough Terrain Electric Scissors
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Hydraulic Pump
- Ensure there are no loose or missing
parts and there is no visible damage.
- Ensure all bolts are properly tightened.
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
2.3-6 Motor/Hydraulic Compartment
- Ensure compartment latch is secure and
in proper working order.
• Hydraulic Tank
- Ensure hydraulic filler cap is secure.
- Ensure tank shows no visible damage
and no evidence of hydraulic leakage.
• Hydraulic Oil
- Ensure platform is fully lowered, and then
visually inspect the sight gauge located
on the side of the hydraulic oil tank.
- The hydraulic oil level should be at or
slightly above the top mark of the sight
glass.
• Hydraulic Return Filter
- Ensure filter element is secure.
- Ensure there are no signs of leakage or
visible damage.
• Main Manifold
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
- Ensure there are no loose wires or missing
fasteners.
- Restore to original position.
• Gear Type Flow Divider
- Ensure there are no loose or missing parts
and there is no visible damage.

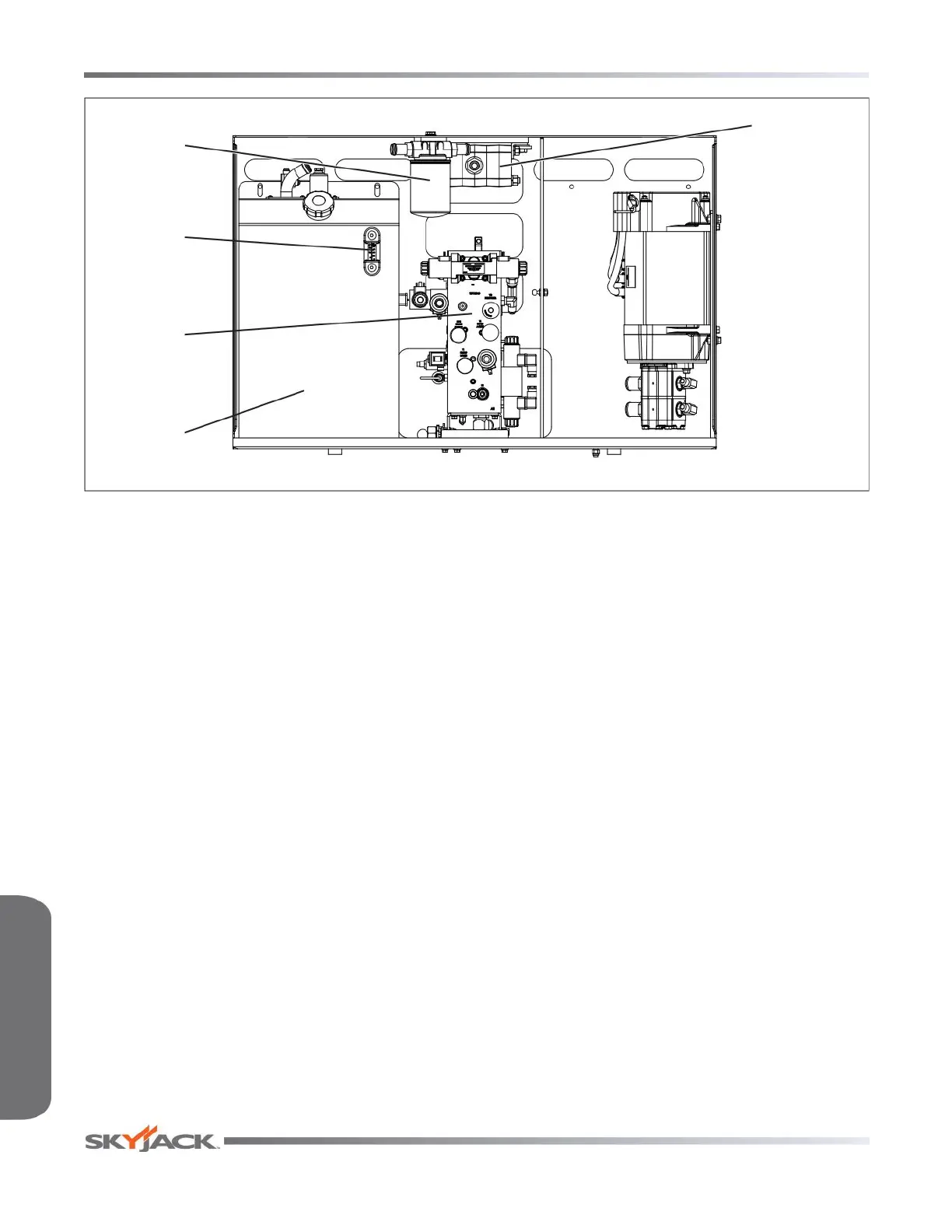

Hydraulic
Tank
Hydraulic
Oil Filter
Gear Type
Flow Divider
Main
Manifold
Oil Level
Gauge
