Skyjack SJ6832 RTE Series User Manual

Page 70 December 2007
Rough Terrain Electric Scissors
Tables Section 4
Floor Loading Pressure
Width
LengthLength
Length
Width
Diameter
(Feet)
Minimum safe approach distance
A
Over 750KV to 1000KV
Over 500KV to 750KV
Over 50KV to 200KV
Over 200KV to 350KV
Over 350KV to 500KV
Over 300V to 50KV
0 to 300V
128742AA
13.72
10.67
7.62
6.10
4.60
(Meters)
3.05
Avoid contact
45
35
25
15
20
10
WARNING
Intermixing tires of different types or using tires of types other than those originally supplied with
this equipment can adversely affect stability. Therefore, replace tires only with the exact Skyjack-
approved type. Failure to operate with matched approved tires in good condition may result in
death or serious injury.

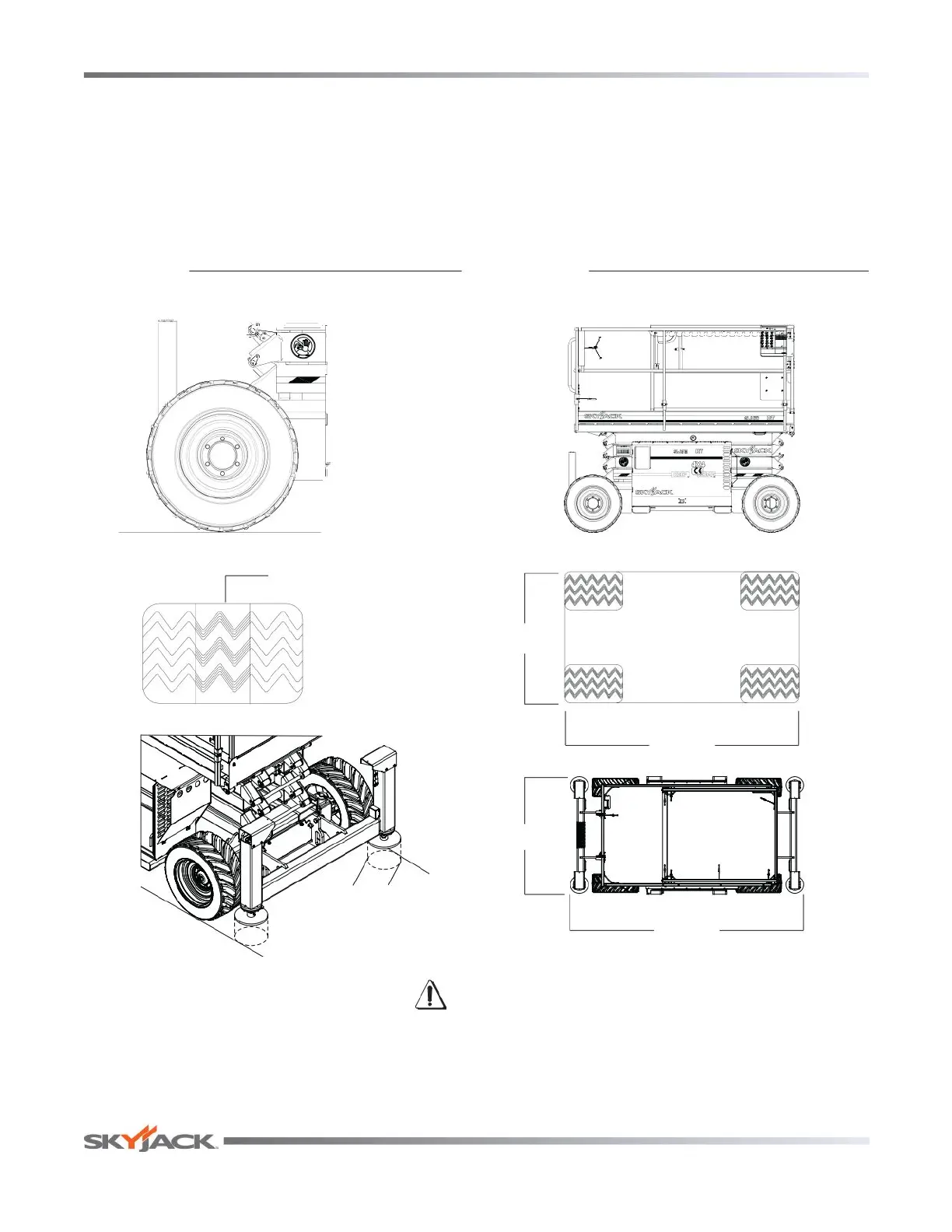

Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Tread Contact Area
Base Area = Length x Width
LCP =
Maximum Wheel Load
Foot Print Area
OUP =
Weight of Aerial Platform + Capacity
Base Area
Foot Print Area

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
