Rough Terrain Electric Scissors
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
WARNING
Ensure that you maintain three points of
contact when using the ladder to mount/
dismount platform.
4. Use the ladder of aerial platform to access
platform.
5. Close the gate.
6. On platform control console, pull out “ ”
emergency stop button.
• Test Emergency Stop
1. Push in “ ” emergency stop button and
attempt to activate any platform function.
Result: All selected platform functions should
not operate.
• Test Enable Trigger Switch
1. Pull out “ ” emergency stop button.
2. Without activating “ ” enable trigger switch,
attempt to activate any platform function.
Result: All platform functions should not
operate.
• Test Platform Raising/Lowering
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Select lift/drive switch to “ ” lift position.
2. Activate and hold “ ” enable trigger
switch.
3. Push or pull controller handle until desired
height is reached.
Result: Platform raising and lowering
functions should operate.
• Test Steering
1. Select lift/off/drive switch to “ ” drive
position.
2. Activate and hold “ ” enable trigger
switch.
3. Press rocker switch on top of controller to
“ ” left and “ ” right.
Result: Steer wheels should turn left and
right.

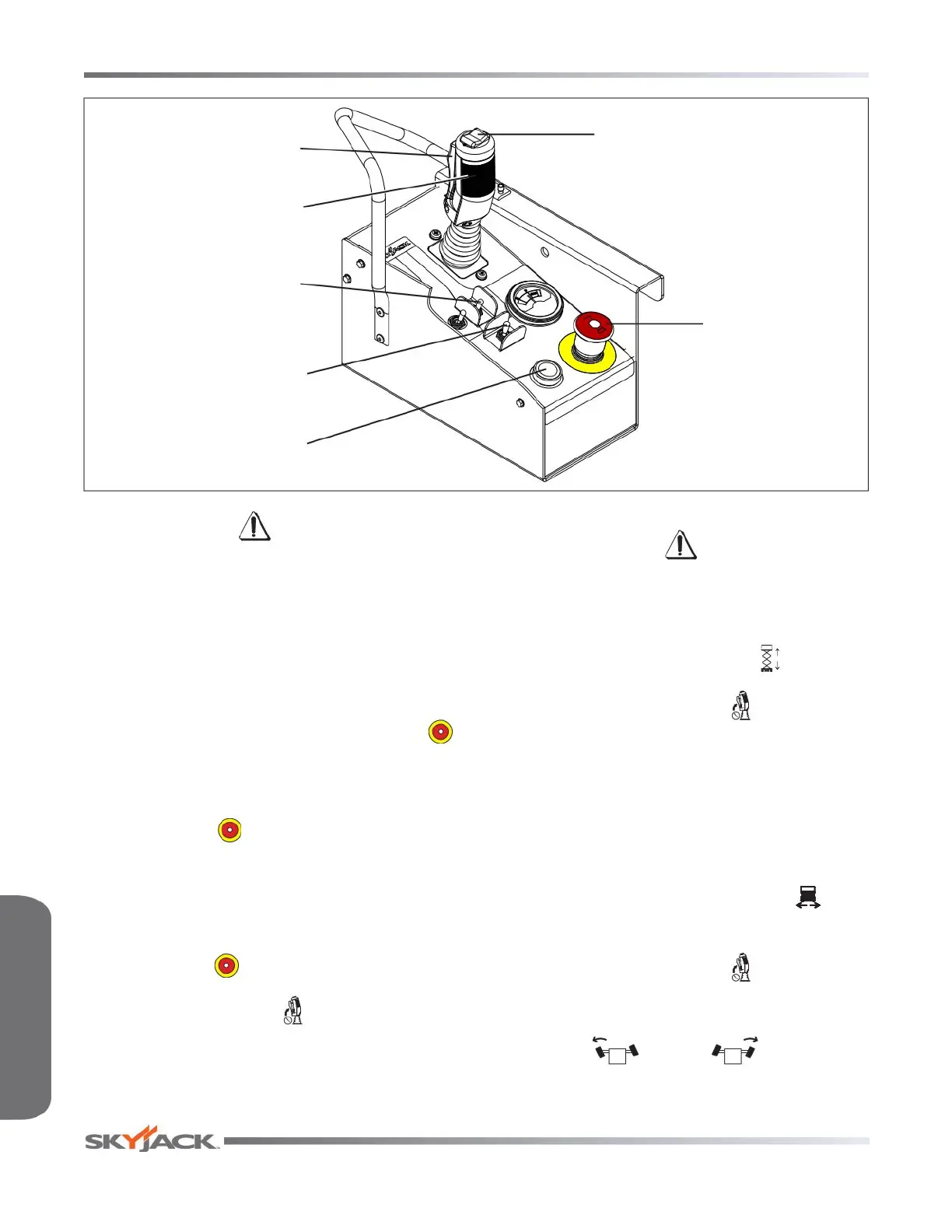

Horn Pushbutton
Lift/Drive Switch
Emergency Stop
Button
Lift/Drive/Steer
Controller
Rocker Switch
Lift/Drive/Steer Enable
Trigger Switch
Inclined Drive/Level
Drive Switch
