Rough Terrain Electric Scissors
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
2.2-8 Base Control Console
The control console is located on the left side of the
battery/electrical compartment. It contains the following
controls:
9
1
4
8
6
5
2
3
7

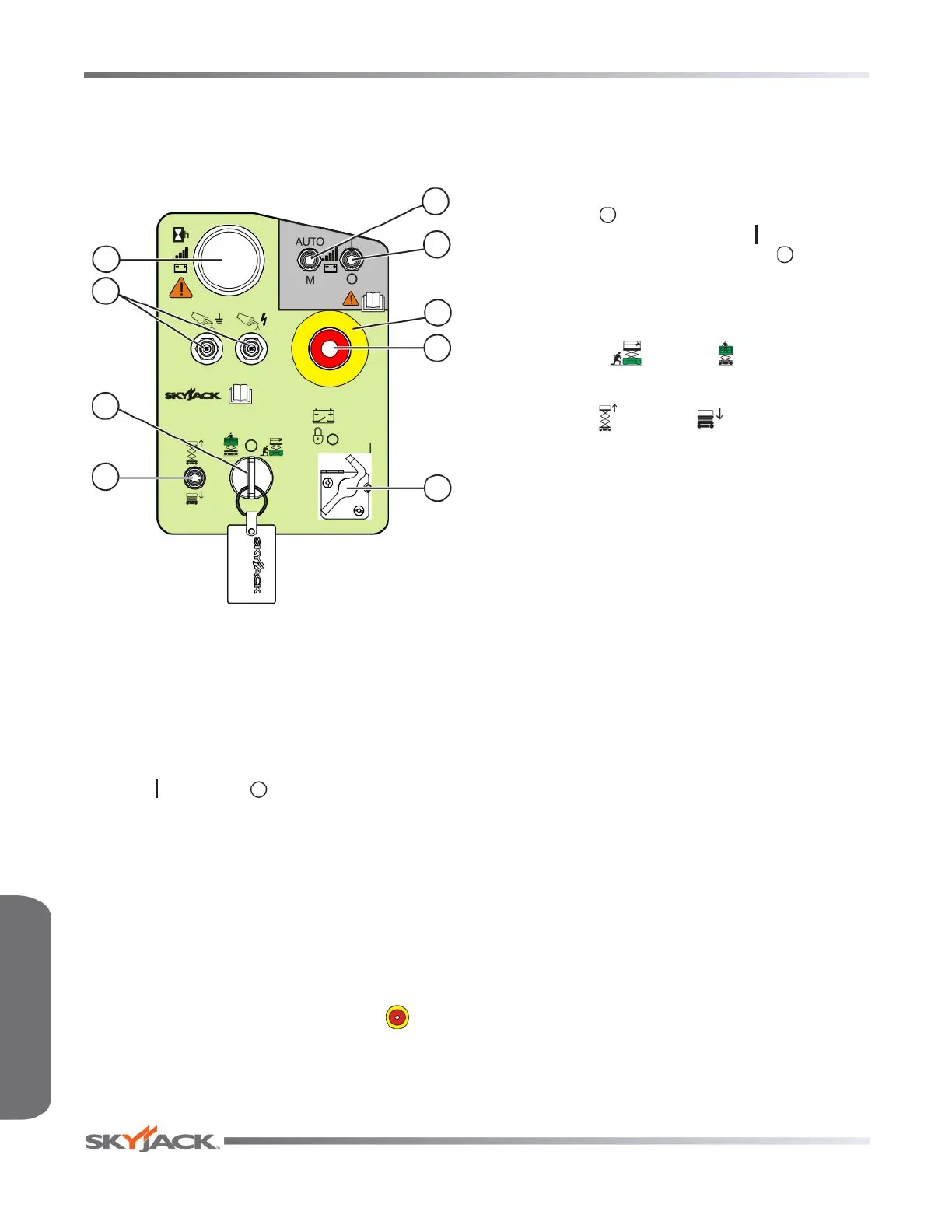

Figure 2-4. Base Control Console
1. Hourmeter - The display shows accumulated
operating time, battery level and error codes. Refer
to Service manual for error codes.
2. Hybrid Power Pack (HPP) On/Off Switch (If
Equipped): This switch allows the operator to turn
on “ ” or turn off “ ” power to the HPP. Refer to
Section 3.6-2 for operation.
3. Hybrid Power Pack (HPP) Automatic/Manual
Switch (If Equipped): This switch allows the operator
to activate “AUTO” or “M” (manual) mode. Refer to
Section 3.6-2 for operation.
4. Circuit Breakers - In the event of a power
overload or positive circuit grounding, the circuit
breaker pops out. Push breaker back in to reset.
5. Emergency Stop Button - This button “ ”, when
depressed, disconnects power to control circuit.
6. Power Indicator Light - When the emergency
stop button on the base control console and on
the platform control console are both pulled out,
this light glows.
7. Main Power Disconnect Switch - This switch,
when in “ ” off position, disconnects power to
all circuits. Switch must be in “ ” on position to
operate any circuit. Turn switch “ ” off when
transporting aerial platform.
8. Platform/Off/Base Key Switch - This three-way
selector switch allows the operator to activate
either the “ ” base or “ ” platform controls.
9. Platform Raise/Lower Switch - This switch
controls “ ” raising or “ ” lowering of platform.
