Page 24 December 2007
Rough Terrain Electric Scissors
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Test Platform/Off/Base Key Switch
WARNING
Be aware of overhead obstructions or
other possible hazards around the aerial
platform when lifting.
1. Pull out base “ ” emergency stop
button.
2. Select platform/off/base key switch
“ ” off position. Attempt to raise or lower
the platform.
Result: Platform raising and lowering
functions should not operate.
3. Select platform/off/base key switch to
“ ” platform position. Attempt to raise
or lower the platform.
Result: Platform raising and lowering
functions should not operate.
4. Select and hold platform/off/base key
switch to “ ” base position. Attempt
to raise or lower the platform.
Result: Platform raising and lowering
functions should operate.
• Test Emergency Stop
1. Push in “ ” emergency stop button and
attempt to raise or lower the platform.
Result: Platform raising and lowering
functions should not operate.
2. Pull out base “ ” emergency stop
button.
• Test Platform Raise/Lower Switch
1. Select platform/off/base key switch to
“ ” base position and raise or lower
the platform with platform “ ” raise or
“ ” lower switch.
Result: Platform raising and lowering
functions should operate.

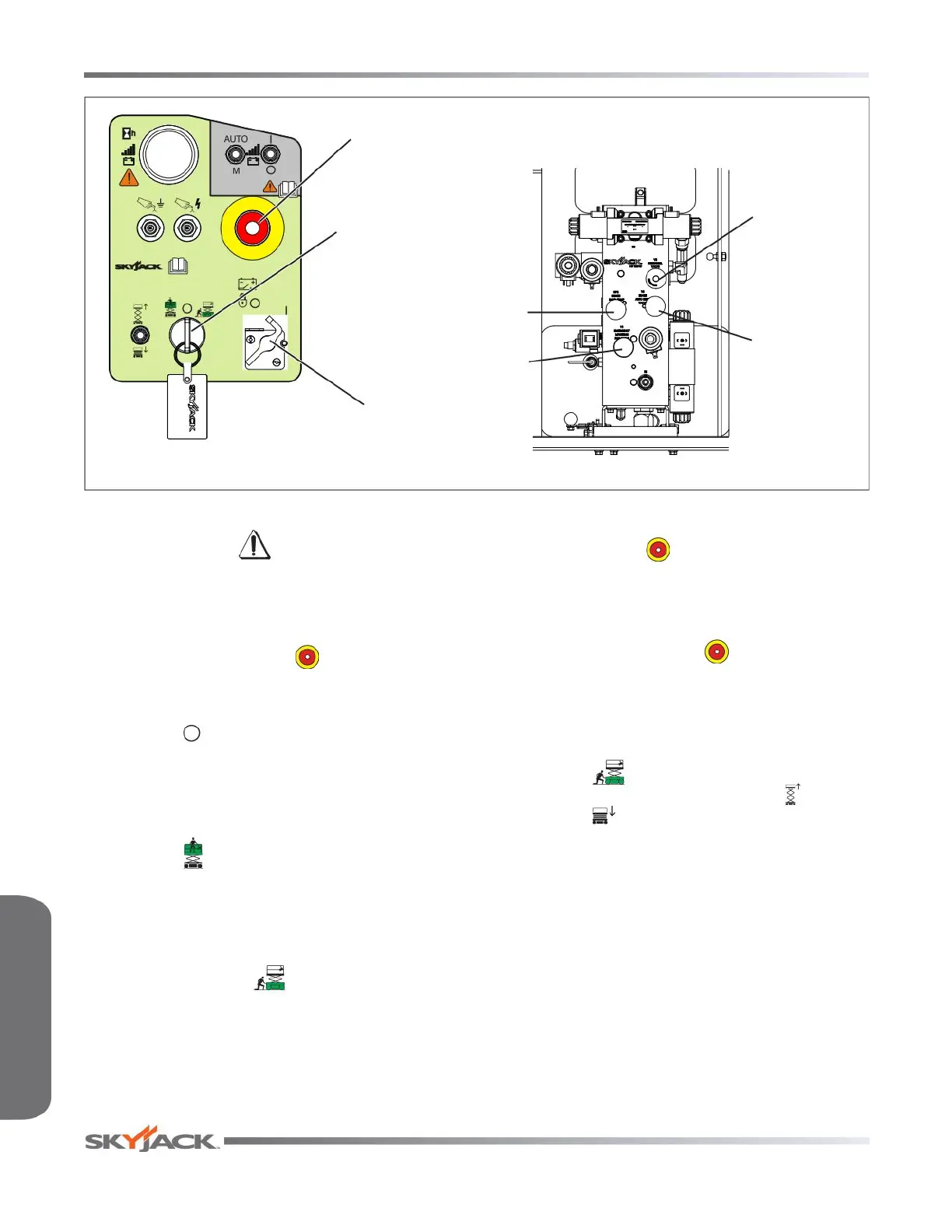

Brake Hand
Pump
Free-wheeling
Valve
Brake Auto
Reset Valve
Emergency
Lowering
Valve
Main Power Disconnect
Switch
Emergency Stop
Button
Platform/Off/Base Key
Switch
Base Control Console
Main Manifold
To Next Page
