Rough Terrain Electric Scissors
December 2007 Page 43
Section 3 - Operation Component Identification (Special Options)
Turn Off (From Base Control Console)
1. On base control console, turn HPP on/off switch
to “ ” off position.
2. On HPP, turn HPP fuel on/off switch and air inflow
on/off switch to “ ” off position.
Turn Off (From HPP)
1

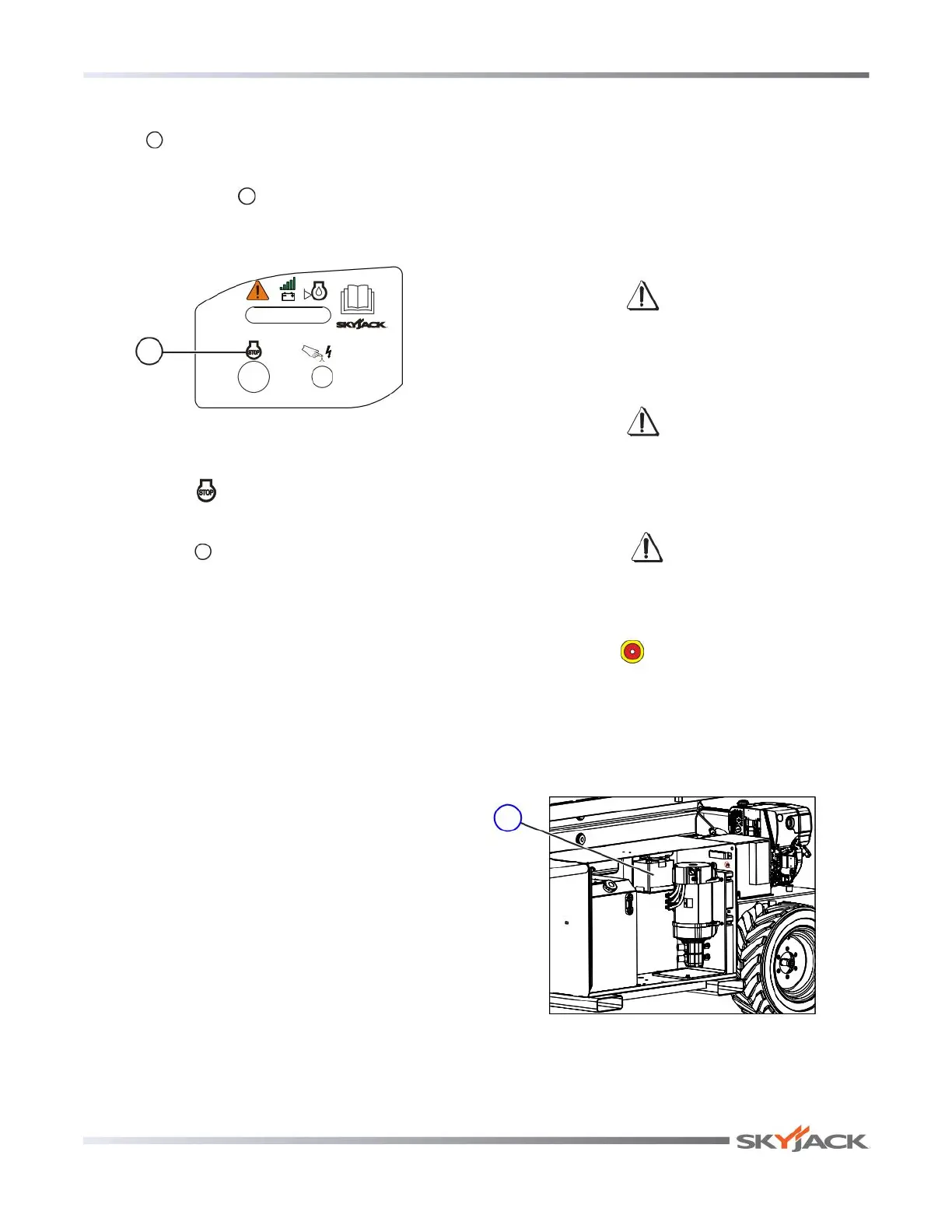

Figure 3-11. HPP Stop Pushbutton
1. Depress “ ” HPP stop pushbutton.
2. Turn HPP fuel on/off switch and air inflow on/off
switch to “ ” off position.
3.6-2b Hybrid Power Pack (HPP) - Diesel
(If Equipped)
The purpose of this HPP is to charge the battery and
provide power to platform. It runs either automatically
or manually. In automatic mode, the HPP automatically
starts when the battery level drops to a 50% charge level
and automatically shuts off at 90%. In manual mode,
the operator decides when to start the HPP. It is located
on the right side of the motor/hydraulic compartment.
DANGER
ONLY operate HPP in a well ventilated
are a. Running HPP emits carbon
monoxide, which can cause nausea or
death if inhaled.
WARNING
The HPP exhaust contains chemicals
known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
CAUTION
Turn off HPP before connecting charger
to AC supply.
NOTE
Pushing in “ ” emergency stop buttons
does not turn off HPP.
Location of Generator Battery
The dedicated battery (item 1) for the HPP is located
inside the hydraulic cabinet at the back of the electric
pump and motor.
1
Figure 3-12. Generator Battery Location
