Rough Terrain Electric Scissors
December 2007 Page 41
Section 3 - Operation Component Identification (Special Options)
3.6-2a Hybrid Power Pack (HPP) - Gasoline
(If Equipped)
The sole purpose of this HPP is to charge the battery.
It runs either automatically or manually. In automatic
mode, the HPP automatically starts when the battery
level drops to a 50% charge level and automatically
shuts off at 90%. In manual mode, the operator decides
when to start the HPP. It is located on the right side of
the motor/hydraulic compartment.
DANGER
ONLY operate HPP in a well ventilated
are a. Running HPP emits carbon
monoxide, which can cause nausea or
death if inhaled.
WARNING
The HPP exhaust contains chemicals
known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
CAUTION
Turn off HPP before connecting AC
supply.
HPP Component Identification
1
5
2 3 4

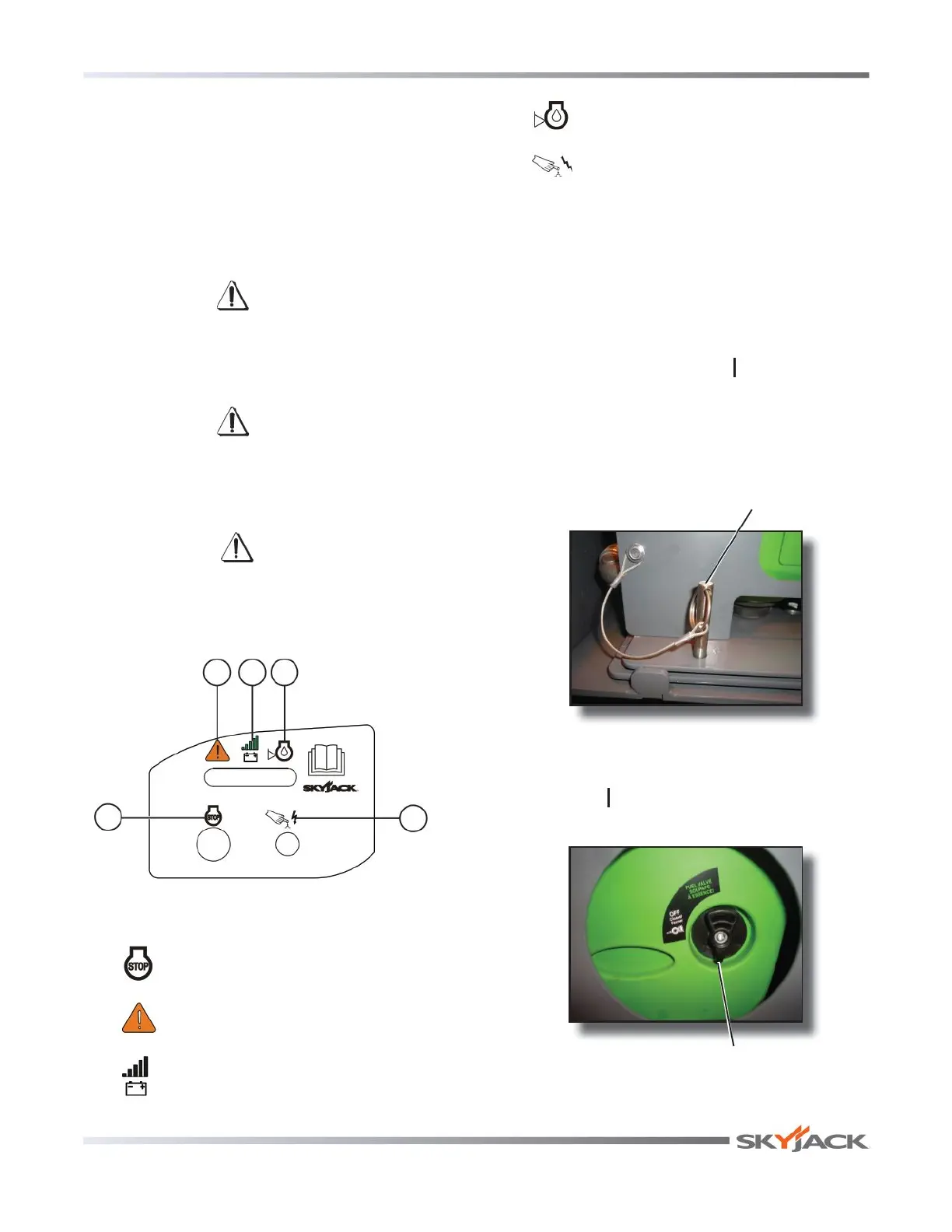

Figure 3-5. HPP Component Identification
1. : Push to turn off HPP.
2. : Red LED light indicates power overload.
3. : Green LED light indicates normal charging
condition.
4. : Red LED light indicates low oil level.
5. : In case of power overload, push to reset
power circuit breaker.
NOTE
For maintenance, refer to HPP manual.
HPP Fuel On/Off Switch & Air Inflow On/Off Switch
NOTE
Ensure the HPP fuel on/off switch and air
inflow on/off switch are in “ ” on position
before attempting to start the HPP.
1. Remove locking pin (shown in Figure 3.6) and
rotate HPP to access the HPP fuel on/off switch
and air inflow on/off switch.
Locking Pin
Figure 3-6. HPP Locking Pin
2. Turn HPP fuel on/off switch and air inflow on/off
switch to “ ” on position (shown in Figure 3.7 &
Figure 3.8).
HPP Fuel On/Off
Switch
Figure 3-7. HPP Fuel On/Off Switch
